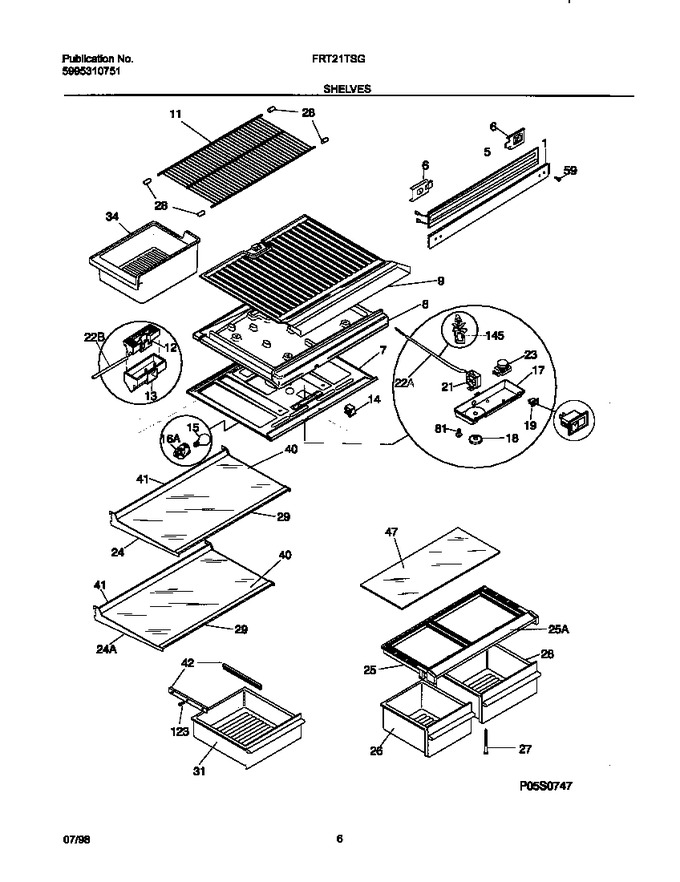

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651901		Mullion, Almond		Appelez-nous	-
5	218781002		Heater-mullion		Appelez-nous	-
6	218845600		Tapping Plate,mullion Mtg ,(2)		Appelez-nous	-
7	218738800		Top Panel-refr		Appelez-nous	-
8	218866000		Divider,styrofoam		Appelez-nous	-
9	218865900		Bottom Panel-frzr				$ 43.29
11	5303288243		Shelf-freezer, Fixed/flat, Full Width, Wire		Appelez-nous	-
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	5303321455		Control Box				$ 46.16
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature   (Replaces: 5304403736)			Immediately	$ 164.57
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
23	215846602		Timer-defrost, 10 Hr, 115v   (Replaces: 5303321915)			Immediately	$ 28.20
24	215919117		Frame-full Shelf, Cantilever		Appelez-nous	-
24	215919170		Frame-pan Mtg Shelf,cantilever ,full Width,w/hanger Tabs		Appelez-nous	-
25	5303206538		Cover-crisper Pan		Appelez-nous	-
25	5303308338		Trim-crisper Cover				$ 50.77
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		End Cap-shelf, Protector, Upper Fzr Shelf				$ 4.57
29	215919405		Trim-glass Shelf,26.80`` ,front		Appelez-nous	-
31	5303323460		Pan-meat		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
40	218390524		Glass-shelf, 26.76`` X 14.57``		Appelez-nous	-
41	215919805		Trim-glass Shelf, 26.80``, Rear		Appelez-nous	-
47	218390523		Insert-pan Cover, Glass				$ 117.61
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*15055	5303001380		Screw		Appelez-nous	-
*15056	218767600		Harness-wiring, Control/divider				$ 92.34
*15057	5308016567		Nut-anchor		Appelez-nous	-
*15058	5303001260		Screw				$ 6.73
*15059	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*15060	3205266		Edge Protector, Wiring Harness				$ 80.09
26A	215791938		Pan-crisper,11.34`` Wide				$ 292.27
26B	5303323459		Pan-crisper, 14.34`` Wide		Appelez-nous	-
42A	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
42B	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
