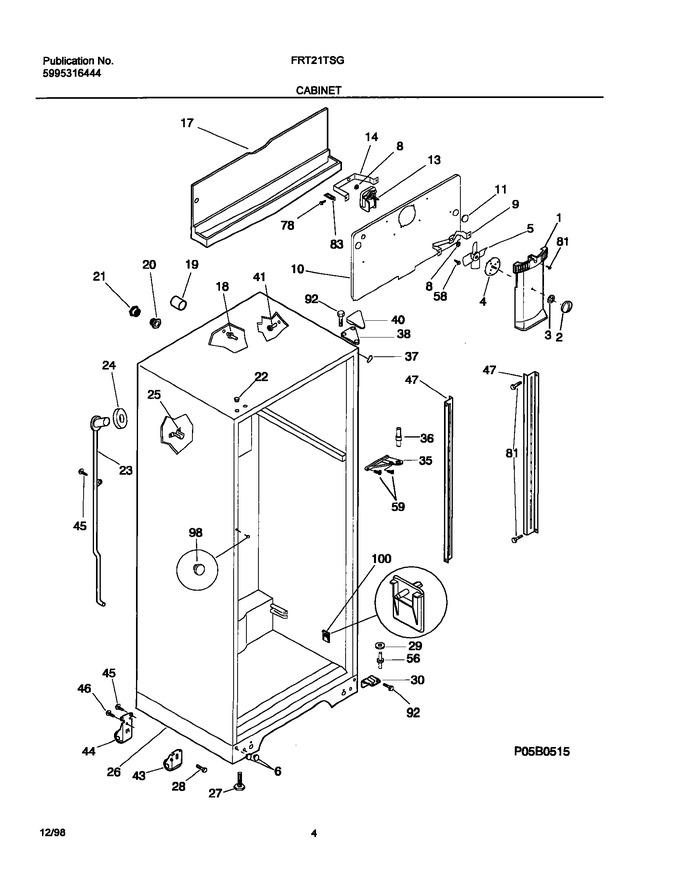

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304402655		Cover-fan		Appelez-nous	-
2	5303307351		Knob, Damper Control				$ 32.71
3	5303001028		Nut,push-on		Appelez-nous	-
4	218722200		Damper-fan Cover, Black				$ 59.80
6	5303001388		Plug-button, White				$ 2.60
8	218754500		Screw,hex Hd Ser Wshr ,8-18 X 3/8		Appelez-nous	-
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303205118		Bracket, Motor Mtr, Front		Appelez-nous	-
10	218802800		Cover-evap Coil		Appelez-nous	-
10	5303209814		Nut, ``u`` Type, No. 8-15(a), Fan Motor Mount		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
13	218895003		Motor-evap Fan		Appelez-nous	-
14	5303322992		Bracket-motor Mtg, Rear				$ 46.57
17	5303001470		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
19	5303001198		Tube-rubber		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	530301287		Ferrule-outer		Appelez-nous	-
22	215774911		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	5303210377		Tube-drain, W/seal Ring				$ 109.31
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	215774100		Spout-drain Tube, W/mounting Pins		Appelez-nous	-
25	5303001361		Pin-mounting, Push-in, Plastic		Appelez-nous	-
26	218605102		Base-cabinet, Almond		Appelez-nous	-
27	5303212922		Screw-leveling				$ 10.71
28	5303271412		Bolt-roller Adj,hex Hd Sems ,1/4-28 X 2.75,(2)				$ 37.64
29	218666700		Washer, .28 X .62 X .03, Nylon		Appelez-nous	-
29	218875801		Washer,nylon ,0.245 Id W/nibs				$ 9.40
29	5308011326		Washer, .34 X .62 X .20, Nylon				$ 9.87
30	218220200		Bracket-lower Hinge		Appelez-nous	-
30	218605200		Tapping Plate/gusset,rh		Appelez-nous	-
30	218605300		Tapping Plate/gusset,lh		Appelez-nous	-
35	218220102		Bracket-ctr Hinge, Almond		Appelez-nous	-
36	218251300		Pin-center Hinge				$ 59.54
37	5303321082		Trim-cabinet Corner, Almond		Appelez-nous	-
38	5308012296		Tapping Plate, Upper Hinge (2)				$ 47.44
38	3206100		Bracket-upper Hinge		Appelez-nous	-
40	3206105		Cover-upper Hinge, Almond				$ 60.90
41	5304500407		Grommet, Shelf Mtg, Lh   (Replaces: 5308009759)			Immediately	$ 6.38
41	5304509705		Grommet, Shelf/rod Mtg, Rh   (Replaces: 5303001609)				$ 10.01
43	218703001		Roller Assy, Front				$ 58.41
43	5308009790		ú Spring-roller Adj				$ 4.30
44	218713600		Roller Assy, Rear				$ 32.75
45	5304455852		Screw,hex Washer Head,8-15a X   (Replaces: 5303207328)				$ 12.76
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5308009762		Bolt-roller Mtg,hex Wshr Hd ,1/4-28 X .5,(2)		Appelez-nous	-
47	218233300		Channel-shelf Mtg, Side				$ 86.05
56	218220300		Pin-lower Hinge		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X .625 ,hinge/mullion,thread Forming   (Replaces: 218188000)				$ 8.34
78	5308000039		Screw		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
98	215099711		Plug-button, Almond, Ctr Hinge Hole		Appelez-nous	-
100	5303288973		Support-pan Cover				$ 24.41
F5	5308000010		Fan Blade, Black   (Replaces: 218649000)			Immediately	$ 49.03
NI	5303305325		Touch-up Paint, Almond		Appelez-nous	-
NI	5304455650		Screw,hex Wshr Hd ,8-18ab X 0.750 ,gusset/hanger   (Replaces: 215005000)				$ 14.18
NI	218601201		Plug-button, White, Cabinet Base		Appelez-nous	-
