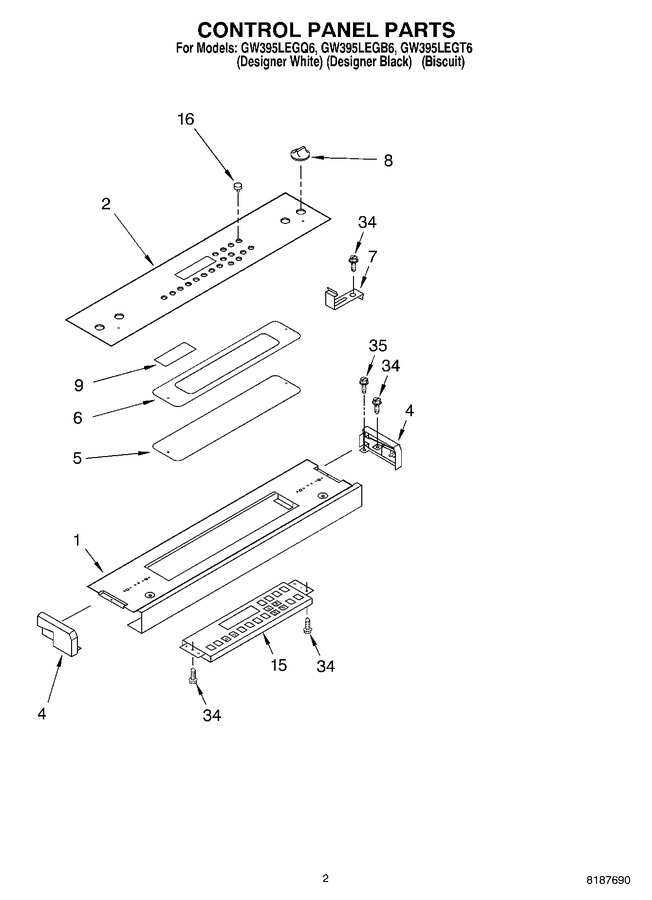

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Cooktop Burner


04 - Broiler And Oven Burner


05 - Door And Drawer


06 - Oven Chassis


07 - Rear Chassis


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9752897PB		Panel, Control (black)		Appelez-nous	-
1	9752897PW		Panel, Control (white)				$ 40.63
1	9752897PC		Panel, Control (biscuit)		Appelez-nous	-
2	9752901CW		Glass-console (white)		Appelez-nous	-
2	9752901CC		Glass-console (biscuit)		Appelez-nous	-
2	9752901CB		Glass-console (black)		Appelez-nous	-
4	9781888FC		End Cap Left (biscuit)		Appelez-nous	-
4	9781889FB		End Cap Left (black)		Appelez-nous	-
4	814562		End Cap Left (white)   (Replaces: 9781889FW)				$ 6.45
4	9781889FC		End Cap Left (biscuit Right)		Appelez-nous	-
4	9781888FB		End Cap Left (black)		Appelez-nous	-
4	814562		End Cap Left (white)   (Replaces: 9781888FW)				$ 6.45
5	9753504		Gasket, Cover		Appelez-nous	-
6	9752955		Cover, Control		Appelez-nous	-
7	9752906		Clip, Glass (2)		Appelez-nous	-
8	9753990FC		Knobs, Control (4) (biscuit)		Appelez-nous	-
8	W10861812		Knobs, Control (4) (white)   (Replaces: 3187766)				$ 13.86
8	WP3187767		Knobs, Control (4) (black)   (Replaces: 3187767)				$ 11.93
9	9753503		Label-wpsi Control		Appelez-nous	-
15	9753639		Control, Range				$ 347.83
16	9781954FB		Knob, Timer (18) (black)				$ 14.66
16	9781954FW		Knob, Timer (18) (white)				$ 16.39
16	9781954FC		Knob, Timer (18) (biscuit)				$ 14.55
34	9780265		Screw, 10-16 X 3/8		Appelez-nous	-
34	9780271		Screw		Appelez-nous	-
35	WP3387230		Screw, 10-16 X 3/4   (Replaces: 9780273)			Immediately	$ 7.69

    View Diagram in Separate Window       Print Part List
