SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Ice Maker

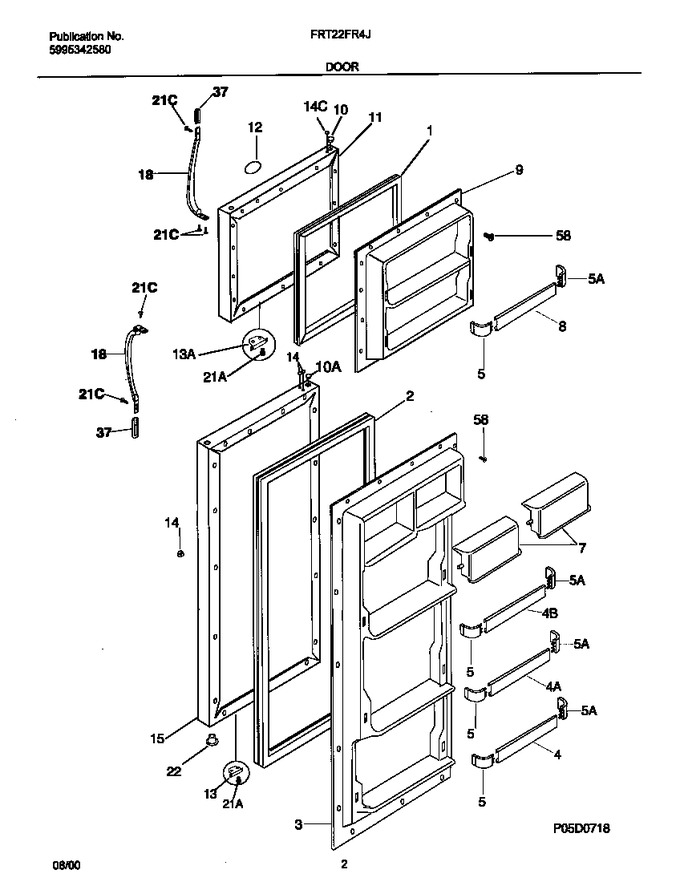

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608915		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730614		Gasket-refr Door, White, Magnetic				$ 201.67
3	218979001		Door-refr Interior,panel				$ 421.76
4	218763648		Rack-door,23.57`` X 2.04``				$ 109.44
4	218763647		Rack-door,24.57`` X 2.04``		Appelez-nous	-
4	218763649		Rack-door,23.91`` X 2.04``				$ 101.64
5	218809701		Support-door Rack, Lh		Appelez-nous	-
5	218809801		Support-door Rack, Rh		Appelez-nous	-
7	5303304569		Door-dairy,12.96`` Wide ,clear ,no Graphics		Appelez-nous	-
8	218763641		Rack-door,23.29`` X 2.04``				$ 32.08
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	218696504		Plug-button,bisque ,lg Closer Hole		Appelez-nous	-
10	5304416926		Plug-button,bisque ,hinge Brg Hole		Appelez-nous	-
11	5303918171		Panel-frzr Door,bisque ,w/foam Insulatn		Appelez-nous	-
12	218917604		Label-nameplate,bisque		Appelez-nous	-
13	215030019		Door Stop,bisque ,frzr		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	218915704		Plug-button,bisque		Appelez-nous	-
14	218696604		Plug-button,bisque ,sm Closer Hole		Appelez-nous	-
15	5303918172		Panel-refr Door,bisque ,w/foam Insulatn		Appelez-nous	-
18	218668004		Handle-door,bisque				$ 83.79
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
37	218811630		Trim-handle,bisque ,upper		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*65760	218906701		Lock-handle Trim,stick-on				$ 67.86
*65761	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
