Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9762268BT Control Panel (biscuit) Appelez-nous -
1 9762268BL Control Panel (black) Appelez-nous -
1 9762268SS Control Panel (s.steel) Special Order $ 191.27

1 9762268WH Control Panel (white) Appelez-nous -
3 9760013 Control, Migration Special Order $ 291.05

4 9757119 Bracket, Console Appelez-nous -
5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

6 9759731 Bracket, Control Appelez-nous -
7 9757409 Support, Gas Valve Special Order $ 81.65

8 9756611BT Endcap (biscuit Rh) Appelez-nous -
8 9756611WH Endcap (white Rh) Appelez-nous -
8 9756611BL Endcap (black Rh) Special Order $ 25.95

8 9756614BL Endcap (black Lh) Special Order $ 25.68

8 9756614WH Endcap (white Lh) Appelez-nous -
8 9756614BT Endcap (biscuit Lh) Appelez-nous -
9 9759941BL Knob (black) Special Order $ 35.07

9 9759941WH Knob (white) Special Order $ 18.43

9 9759941BT Knob (biscuit) Appelez-nous -
10 WPW10331686 Module, Spark   (Replaces: 9758080) In-Stock Immediately $ 354.47

11 9780271 Screw Appelez-nous -
12 3196172 Screw In-Stock Immediately $ 11.55


    View Diagram in Separate Window     Print Icon   Print Part List

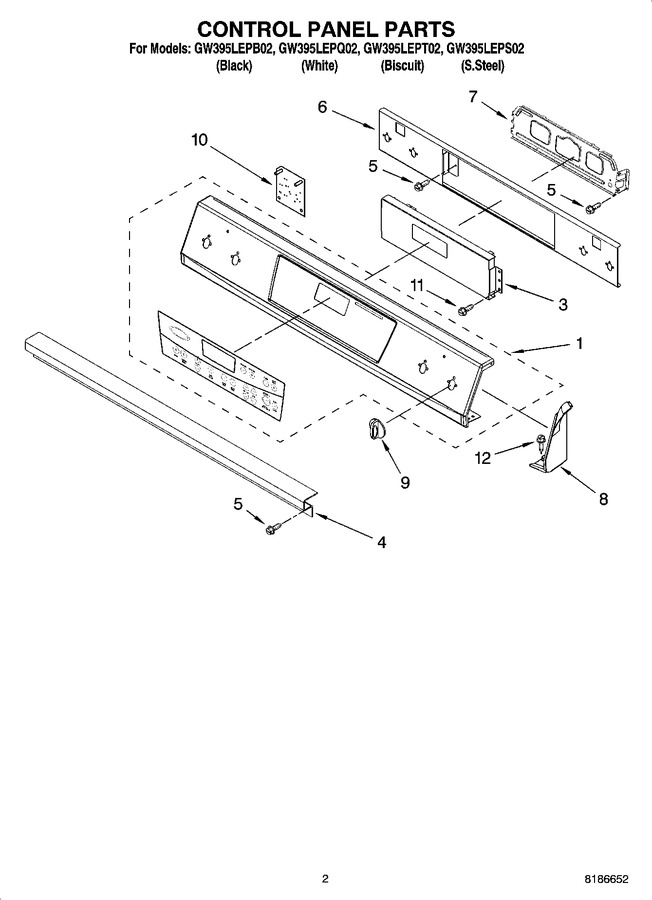

Diagram for GW395LEPB02
