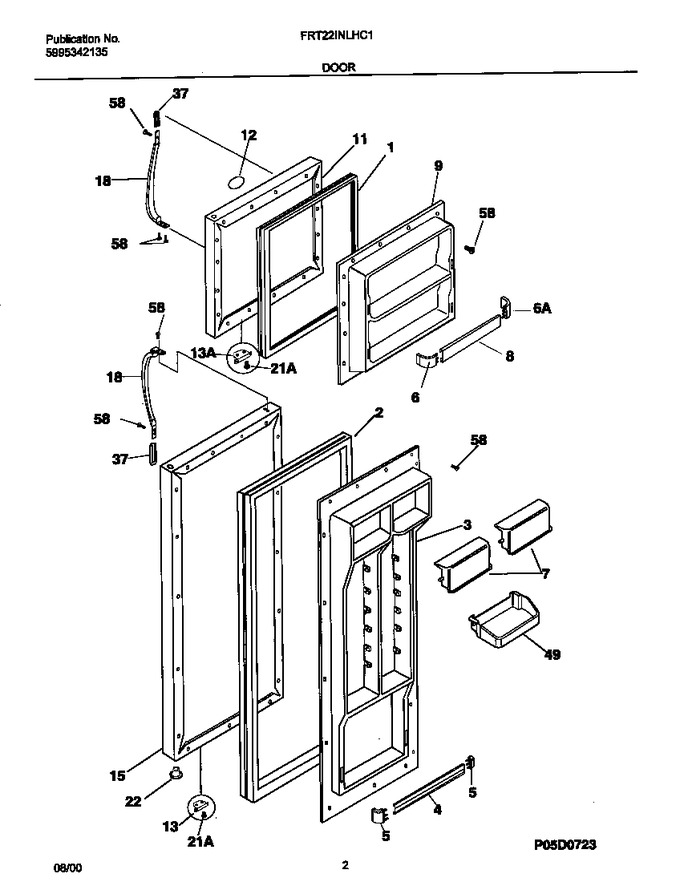

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608925		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	218730616		Gasket-refr Door, Black, Magnetic				$ 215.09
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	218763640		Rack-door,(2)		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
6	218809801		Support-door Rack, Rh		Appelez-nous	-
6	218809701		Support-door Rack, Lh		Appelez-nous	-
7	5303304569		Door-dairy,12.96`` Wide ,clear ,no Graphics		Appelez-nous	-
8	218763641		Rack-door,23.29`` X 2.04``				$ 32.08
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
11	5303918195		Panel-ext Frzr Door,stainless ,w/foam Insulatn		Appelez-nous	-
12	218917608		Label-nameplate,gray		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030018		Door Stop, Black, Frzr				$ 26.78
15	5303918196		Panel-ext Refr Door,stainless Steel ,w/foam Insulatn		Appelez-nous	-
18	218668005		Handle-door,gray		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
37	218811644		Trim-handle,4.97`` ,mold Flake ,w/band & Lock		Appelez-nous	-
49	215441502		Bin-door,gallon ,with Trim   (Replaces: 218592323)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*03040	218906701		Lock-handle Trim,stick-on				$ 67.86
*03041	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
*03042	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*03043	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
