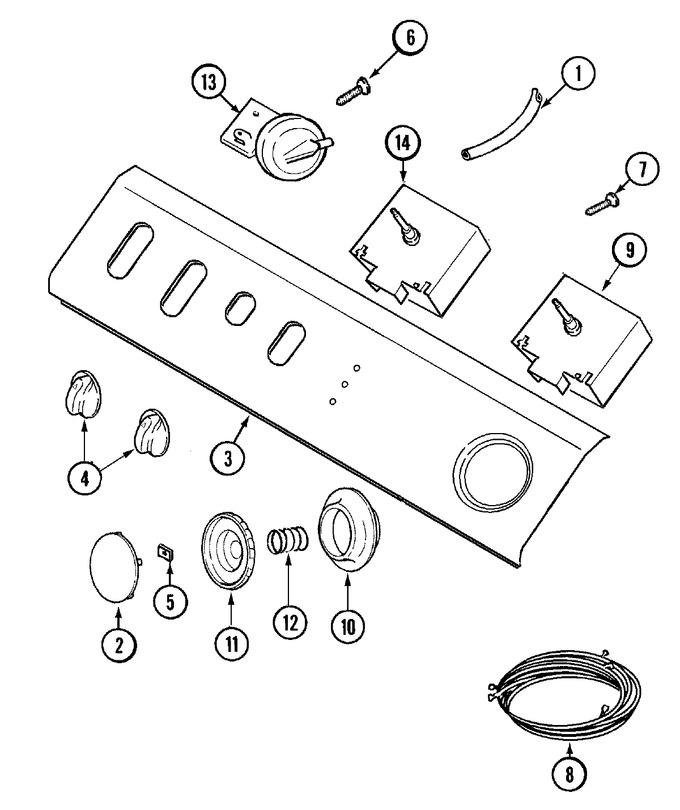

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001619 | Tube, Water Level Switch (Replaces: 22001036) | 10 |
|
$ 75.73 | ||||
| 2 | WP22001664 | Timer Knob Insert/cap (wht) (Replaces: 22001664) | 10 |
|
$ 7.85 | ||||
| 3 | 22003316 | Panel, Control | 10 |
|
- | ||||
| 4 | WP22001663 | Knob, Selector Switch (wht) (Replaces: 22001663) | 10 |
|
Immediately | $ 53.16 | |||
| 5 | 211605 | Retainer, Timer Knob | 10 |
|
- | ||||
| 6 | 22001662 | Screw | 10 |
|
- | ||||
| 7 | WP3400094 | Screw, Timer (Replaces: 22001661) | 10 |
|
$ 7.14 | ||||
| 8 | 22002395 | Harness, Main Wire | 10 |
|
- | ||||
| 9 | WP22003362 | Timer (Replaces: 22002201) | 10 |
|
$ 284.90 | ||||
| 10 | 22001660 | Dial Skirt - White | 10 |
|
$ 21.47 | ||||
| 11 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
Immediately | $ 26.38 | |||
| 12 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 13 | 22001775 | 4 Level Rotary Pressure Switch | 10 |
|
$ 78.59 | ||||
| 14 | 22001655 | Switch, Water Temp. (3 Pos.) | 10 |
|
- | ||||
| 15 | 22002931 | Manual, Use & Care (spanish) | 10 |
|
- | ||||
| 15 | 22002409 | Manual, Use & Care | 10 |
|
- | ||||
| 15 | 22002410 | Manual, Use & Care (french) | 10 |
|
- |
