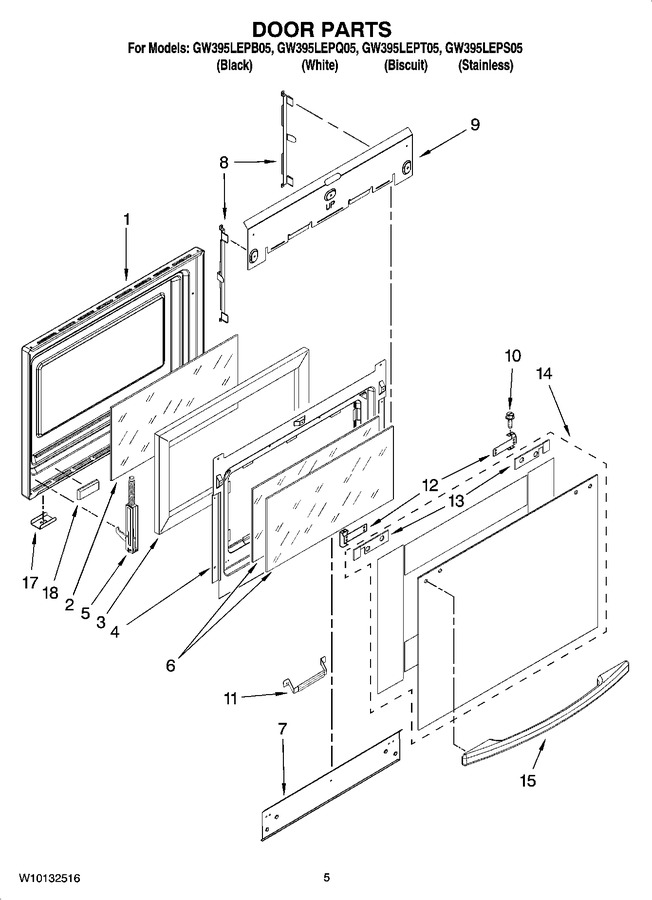

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Panel, Door   (Replaces: 9759413)				$ 317.54
2	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 127.76
3	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
4	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
5	WP9760572		Hinge, Oven Door (left)   (Replaces: 9760572)				$ 95.97
5	WP9760571		Hinge, Oven Door (right)   (Replaces: 9760571)			Immediately	$ 98.15
6	WP9759225		Glass, Inner   (Replaces: 9759225)			Immediately	$ 174.78
7	4457114		Shield, Heat-bottom				$ 186.68
8	WP9759229		Bracket, Glass Side   (Replaces: 9759229)				$ 160.71
9	4457104		Shield, Heat Top   (Replaces: 4457103)				$ 33.62
10	W10276642		Screw   (Replaces: 4451040)				$ 5.49
11	9759230		Bracket, Central				$ 36.30
12	9763496		Bracket, Handle (l.hand)		Appelez-nous	-
12	9763497		Bracket, Handle (r.hand)		Appelez-nous	-
12	W10276642		Screw   (Replaces: 4451040)				$ 5.49
13	9759638		Pad, Handle (right)		Appelez-nous	-
13	9759637		Pad, Handle (left)		Appelez-nous	-
14	WP9759074		Assembly, Door Kit (stainless)   (Replaces: 9759349)				$ 376.41
14	9759639		Assembly, Door Kit (white)				$ 173.45
14	9759640		Assembly, Door Kit (biscuit)		Appelez-nous	-
14	9759641		Assembly, Door Kit (black)				$ 127.72
15	4448855		Handle, Door (white)		Appelez-nous	-
15	4448854		Handle, Door (black)				$ 74.07
15	4452860		Handle, Door (biscuit)		Appelez-nous	-
17	4450863		Retainer, Glass Clip		Appelez-nous	-
18	9759635		Spacer, Door Glass				$ 36.09
