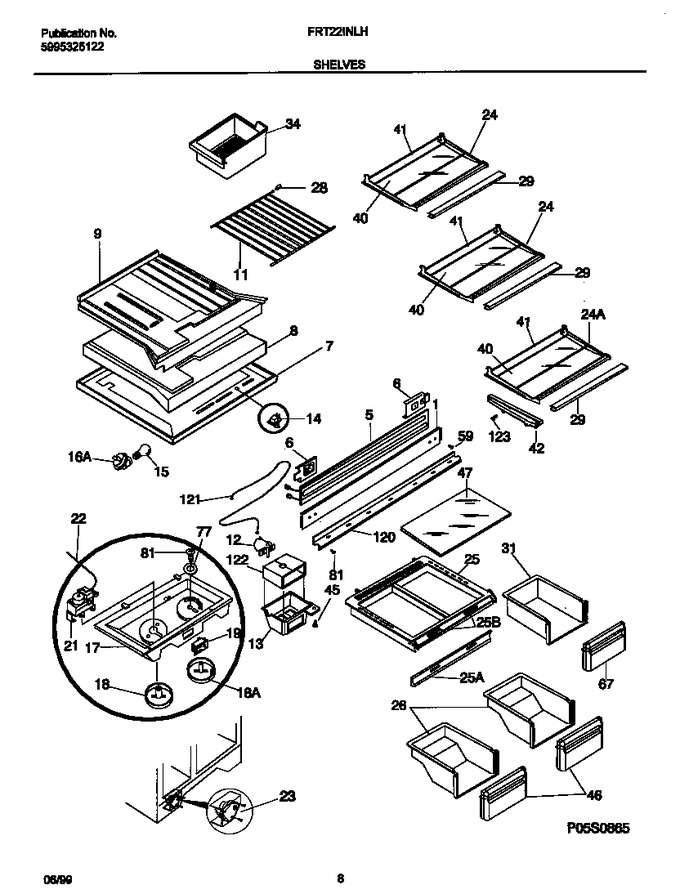

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218652300		Mullion,white		Appelez-nous	-
5	218752300		Heater-mullion				$ 100.70
6	218845601		Tapping Plate,mullion Mtg ,(2)				$ 2.18
7	218907501		Top Panel-refr,hasc		Appelez-nous	-
8	218909703		Divider,styrofoam ,w/foil Tape		Appelez-nous	-
9	215058300		Bottom Panel-frzr		Appelez-nous	-
11	5304409141		Shelf-freezer,w/trim		Appelez-nous	-
12	218634902		Deflector-air,``paddle``				$ 48.01
13	218629900		Cover-air Deflector				$ 23.96
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	215932905		Control Box		Appelez-nous	-
18	5303310731		Knob-temp Control, Refr		Appelez-nous	-
18	5303310732		Knob-temp Control, (damper)		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304403880		Control-temperature		Appelez-nous	-
22	218660701		Tube, Insulator, Plastic, On Temp Sensor		Appelez-nous	-
23	215846602		Timer-defrost   (Replaces: 215846606)			Immediately	$ 28.20
24	215919172		Frame-shelf,cantilever ,full Width ,w/hanger Tabs		Appelez-nous	-
24	215919142		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303301393		Control-humidity		Appelez-nous	-
25	5304412853		Trim-crisper Cover		Appelez-nous	-
25	215216653		Cover-crisper Pan,with Beam ,trim,humid Cont		Appelez-nous	-
26	5303292386		Pan-crisper, (2)				$ 236.83
28	215341200		End Cap-shelf, Protector				$ 2.54
29	215919494		Trim-glass Shelf,27.18`` ,front		Appelez-nous	-
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
40	218498192		Glass-shelf,full Shelf		Appelez-nous	-
41	215919806		Trim-full Shelf, Rear		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5304405084		Front-crisper Pan				$ 210.68
47	218498180		Insert-pan Cover		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
67	215357813		Front-meat Pan				$ 113.03
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	218019201		Seal-refr Top		Appelez-nous	-
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
*94572	5303299664		Spacer-shelf				$ 24.10
*94573	215363801		Spacer-air Deflectr		Appelez-nous	-
*94574	215363901		Washer-air Deflectr		Appelez-nous	-
*94575	215935700		Nut-anchor		Appelez-nous	-
*94576	5308016567		Nut-anchor		Appelez-nous	-
*94577	5303001260		Screw				$ 6.73
*94578	215277000		Cover-defrost Timer, Top		Appelez-nous	-
*94579	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*94580	5303289058		Shield-defrost Timr,btm		Appelez-nous	-
*94581	215339100		Seal-divider Throat		Appelez-nous	-
*94582	215359900		Seal-divider Front		Appelez-nous	-
*94583	215848000		Spacer-air Channel		Appelez-nous	-
121A	215364001		Cable-damper Contrl				$ 82.01
121B	215209400		Nut,push-on ,damper Cable		Appelez-nous	-
122A	218561201		Block-air Deflector, Rh		Appelez-nous	-
122B	218561203		Block-air Deflector, Lh		Appelez-nous	-
42A	5303209272		Hanger-pan/basket, Lh				$ 90.83
42B	5303209273		Hanger-pan/basket, Rh				$ 60.06
