SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Oven Parts

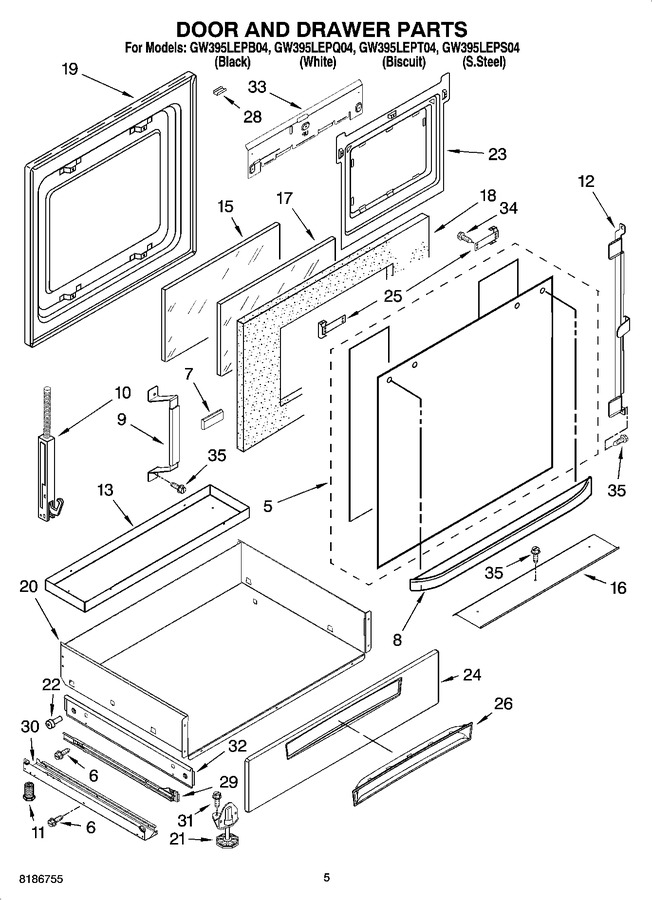

04 - Door And Drawer Parts


05 - Top Venting Parts


06 - Internal Oven Parts


07 - Cooktop Burner Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WP9759074		Glass, Door Front (s.steel)   (Replaces: 9759642)				$ 376.41
5	9759640		Glass, Door Front (biscuit)		Appelez-nous	-
5	9759639		Glass, Door Front (white)				$ 173.45
5	9759641		Glass, Door Front (black)				$ 127.72
6	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
7	9759635		Spacer, Glass				$ 36.09
8	4448856		Handle, Door (biscuit)		Appelez-nous	-
8	4448855		Handle, Door (white)		Appelez-nous	-
8	4448854		Handle, Door (black)				$ 74.07
9	9759230		Bracket, Central				$ 36.30
10	WP9760571		Hinge, Door (white Rh)   (Replaces: 9760571)			Immediately	$ 98.15
10	WP9760572		Hinge, Door (white Lh)   (Replaces: 9760572)				$ 95.97
11	WPW10058460		Foot, Rear   (Replaces: 9761935)			Immediately	$ 7.07
12	WP9759229		Bracket, Side   (Replaces: 9759229)				$ 160.71
13	9760592		Panel, Drawer		Appelez-nous	-
15	WP9757706		Glass, Inner   (Replaces: 9757706)			Immediately	$ 127.76
16	4457114		Shield, Heat-bottom				$ 186.68
17	WP9759225		Glass, Inner (2)   (Replaces: 9759225)			Immediately	$ 174.78
18	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 162.66
19	WP9759413		Liner, Door   (Replaces: 9759413)				$ 317.54
20	9757806		Drawer & Roller				$ 182.02
21	WP3196037		Foot, Front   (Replaces: 3196037)				$ 74.67
22	814229		Roller, Drawer   (Replaces: 422604)			Immediately	$ 51.23
23	WP4457132		Retainer, Glass   (Replaces: 4457132)				$ 275.13
24	4453921BT		Front, Drawer (biscuit)		Appelez-nous	-
24	4453921WH		Front, Drawer (white)		Appelez-nous	-
24	4453921BL		Front, Drawer (black)		Appelez-nous	-
24	4453921SS		Front, Drawer (s.steel)		Appelez-nous	-
25	W10276642		Screw   (Replaces: 4451040)				$ 5.49
25	9763496		Bracket, Handle (l.hand)		Appelez-nous	-
25	9763497		Bracket, Handle (r.hand)		Appelez-nous	-
26	9756674WH		Handle, Drawer (white)		Appelez-nous	-
26	9756674BT		Handle, Drawer (biscuit)		Appelez-nous	-
26	9756674BL		Handle, Drawer (black)		Appelez-nous	-
28	4450863		Retainer, Clip		Appelez-nous	-
29	9756839		Track, Drawer (l.side)				$ 44.69
29	9756837		Track, Drawer (r.side)		Appelez-nous	-
30	9759954		Side, Base (l.side)				$ 88.47
30	9759953		Side, Base (r.side)				$ 108.70
31	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
32	9756673		Guide, Roller				$ 65.49
33	4457104		Shield, Heat Top   (Replaces: 4457103)				$ 33.62
34	W10276642		Screw   (Replaces: 4451040)				$ 5.49
35	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47

    View Diagram in Separate Window       Print Part List
