SELECT A DIAGRAM

01 - Cover

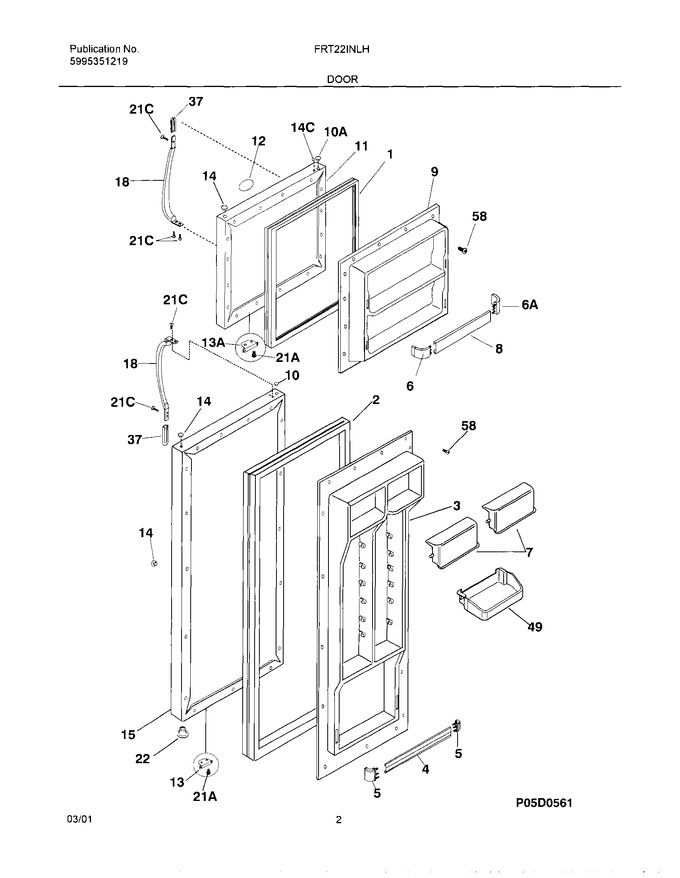

03 - Door


05 - Cabinet


07 - Shelves


09 - System


11 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608915		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730614		Gasket-refr Door, White, Magnetic				$ 201.67
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	218763640		Rack-door,(2)		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
6	218809801		Support-door Rack, Rh		Appelez-nous	-
6	218809701		Support-door Rack, Lh		Appelez-nous	-
7	5303304569		Door-dairy,12.96`` Wide ,clear ,no Graphics		Appelez-nous	-
8	218763641		Rack-door,23.29`` X 2.04``				$ 32.08
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	218696501		Plug-button, White, Lg Closer Hole				$ 4.07
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	5303918024		Panel-frzr Door,white ,w/foam Insulatn		Appelez-nous	-
12	218917601		Label-nameplate,white				$ 2.98
13	5303289522		Door Stop				$ 40.17
13	215030001		Door Stop, White, Frzr				$ 29.61
14	218696601		Plug-button, White, Sm Closer Hole				$ 1.75
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
15	5303918022		Panel-refr Door,white ,w/foam Insulatn		Appelez-nous	-
18	218668001		Handle-door, White			Immediately	$ 66.16
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	5303289320		Bearing-hinge				$ 19.69
37	218811621		Trim-handle,white ,upper ,w/chrome Band		Appelez-nous	-
49	215441502		Bin-door,gallon ,with Trim   (Replaces: 218592323)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	218906701		Lock-handle Trim,stick-on				$ 67.86
NI	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60

    View Diagram in Separate Window       Print Part List
