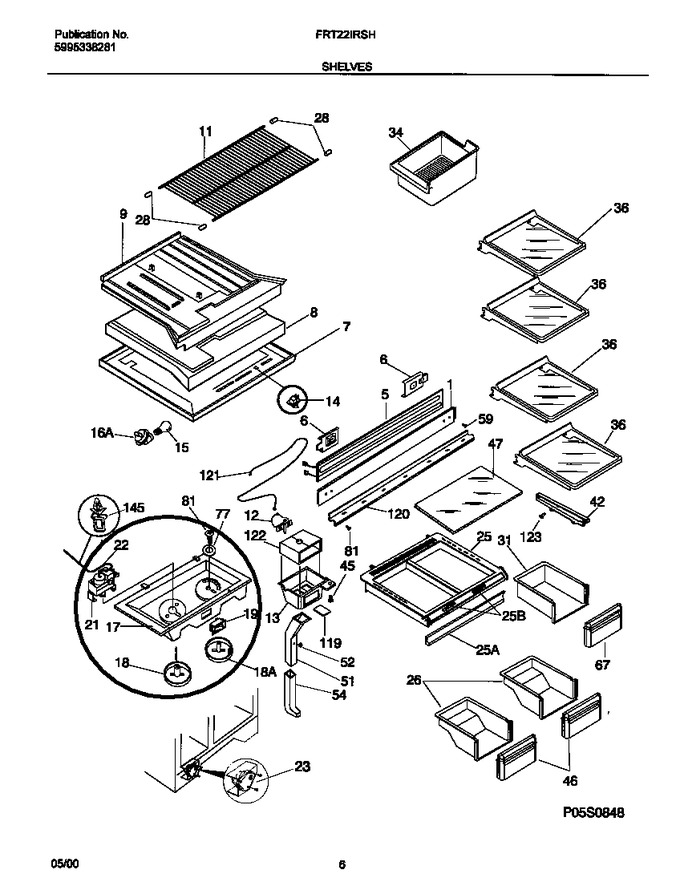

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303299280		Mullion, Black		Appelez-nous	-
5	218752300		Heater-mullion				$ 100.70
6	218845601		Tapping Plate,mullion Mtg ,(2)				$ 2.18
7	218907501		Top Panel-refr,hasc		Appelez-nous	-
8	218909707		Divider,styrofoam ,w/foil Tape		Appelez-nous	-
9	215058300		Bottom Panel-frzr		Appelez-nous	-
11	5304409141		Shelf-freezer,w/trim		Appelez-nous	-
12	218634902		Deflector-air,``paddle``				$ 48.01
13	218629900		Cover-air Deflector				$ 23.96
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	215932906		Control Box		Appelez-nous	-
18	5304414917		Knob-temp Control,refr				$ 64.47
18	5304414918		Knob-temp Control,(damper)				$ 93.50
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304402184		Control-temperature				$ 147.42
22	218660701		Tube, Insulator, Plastic, On Temp Sensor		Appelez-nous	-
23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
25	215216649		Cover-crisper Pan,with Beam ,trim,humid Cont		Appelez-nous	-
25	5303307881		Control-humidity		Appelez-nous	-
25	5303308349		Trim-crisper Cover		Appelez-nous	-
26	5303292386		Pan-crisper, (2)				$ 236.83
28	215341200		End Cap-shelf, Protector				$ 2.54
31	5303304632		Pan-meat				$ 267.86
34	5303212918		Container-ice				$ 104.66
36	215406115		Shelf-``spill-safe``, Fixed, Teal Graphics				$ 236.72
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	218278401		Front-crisper Pan, (2)		Appelez-nous	-
47	218390564		Insert-pan Cover, Glass, Teal Graphics		Appelez-nous	-
51	215132809		Duct-meat Keeper, Upper		Appelez-nous	-
52	215132901		Control, Damper, Meat Kpr Duct		Appelez-nous	-
54	215133100		Duct, Meat Keeper, Lower		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
67	218278701		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
119	215132700		Cap, Air Duct				$ 18.38
120	218019201		Seal-refr Top		Appelez-nous	-
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*17133	218965601		Harness-wiring,control/divider,control/divider		Appelez-nous	-
*17134	5303299664		Spacer-shelf				$ 24.10
*17135	215363801		Spacer-air Deflectr		Appelez-nous	-
*17136	215363901		Washer-air Deflectr		Appelez-nous	-
*17137	218634800		Spacer-air Deflectr		Appelez-nous	-
*17138	5308016567		Nut-anchor		Appelez-nous	-
*17139	5303001260		Screw				$ 6.73
*17140	215277000		Cover-defrost Timer, Top		Appelez-nous	-
*17141	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*17142	5303289058		Shield-defrost Timr,btm		Appelez-nous	-
*17143	215002401		Hanger-pan/tray, Rh				$ 85.84
*17144	215133200		Insulation-air Duct,rear		Appelez-nous	-
*17145	215133300		Insulation-air Duct,front		Appelez-nous	-
*17146	215133000		Damper-air,meat Kpr Duct		Appelez-nous	-
*17147	215069518		Cap-mullion Screw,black		Appelez-nous	-
*17148	218188500		Screw-mullion Mtg,lh,cr Spcl Oval Hd ,10-32 X 0.750,thre		Appelez-nous	-
*17149	215339100		Seal-divider Throat		Appelez-nous	-
*17150	215359900		Seal-divider Front		Appelez-nous	-
*17151	215848000		Spacer-air Channel		Appelez-nous	-
*17152	215339900		Clip-shelf				$ 5.83
121A	215364001		Cable-damper Contrl				$ 82.01
121B	215209400		Nut,push-on ,damper Cable		Appelez-nous	-
122A	218561202		Block-air Deflector, Rh		Appelez-nous	-
122B	218561204		Block-air Deflector, Lh		Appelez-nous	-
