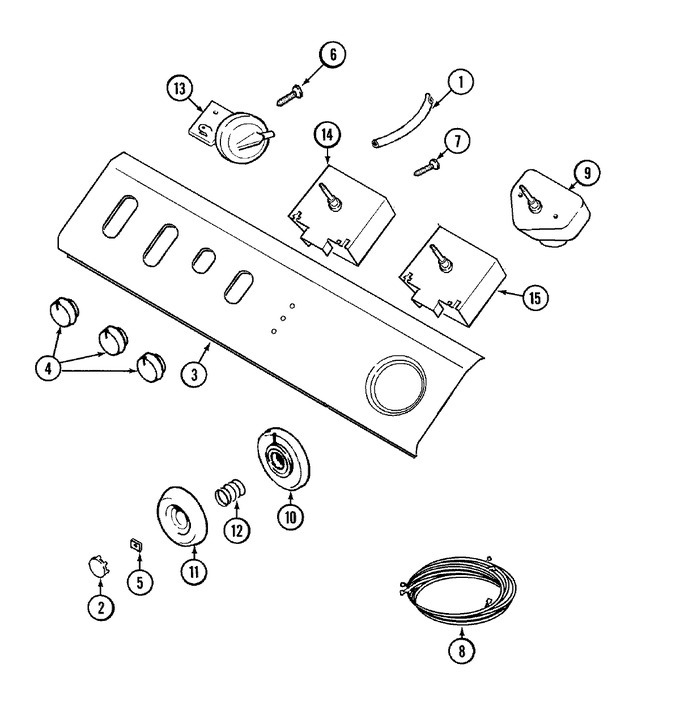

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001619 | Tube, Water Level Switch (Replaces: 22001036) | 10 |
|
$ 75.73 | ||||
| 2 | 22001665 | Insert, Timer Knob (alm) | 10 |
|
- | ||||
| 3 | 22002414 | Panel, Control (alm) | 10 |
|
- | ||||
| 4 | 22001667 | Knob, Selector Switch (alm) | 10 |
|
- | ||||
| 5 | 211605 | Retainer, Timer Knob | 10 |
|
- | ||||
| 6 | 22001662 | Screw | 10 |
|
- | ||||
| 7 | WP3400094 | Screw, Timer (Replaces: 22001661) | 10 |
|
$ 7.14 | ||||
| 8 | 22002412 | Wire Harness, Main | 10 |
|
- | ||||
| 9 | WP22003363 | Timer (Replaces: 22002411) | 10 |
|
$ 323.15 | ||||
| 10 | 22001668 | Bezel, Timer Knob (alm) | 10 |
|
- | ||||
| 11 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
Immediately | $ 26.38 | |||
| 12 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 13 | 22001775 | 4 Level Rotary Pressure Switch | 10 |
|
$ 78.59 | ||||
| 14 | 22001825 | Temperature Switch - Rotary | 10 |
|
- | ||||
| 15 | 22001794 | Switch, Rotary (2 Pos) | 10 |
|
$ 24.91 | ||||
| 16 | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- | ||||
| 17 | 22002409 | Manual, Use & Care | 10 |
|
- | ||||
| 18 | 22002410 | Manual, Use & Care (french) | 10 |
|
- |
