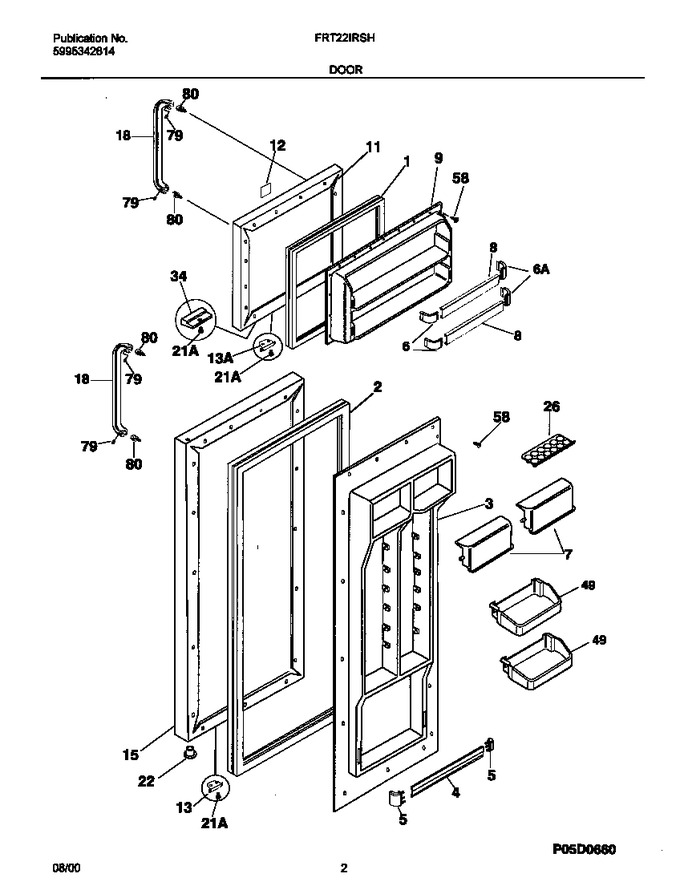

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608925		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	218730616		Gasket-refr Door, Black, Magnetic				$ 215.09
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door   (Replaces: 218763602)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
6	218809801		Support-door Rack, Rh		Appelez-nous	-
6	218809701		Support-door Rack, Lh		Appelez-nous	-
7	5303308347		Door-dairy,12.96`` Wide		Appelez-nous	-
8	215516220		Rack-door   (Replaces: 218763603)				$ 54.58
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
11	218626256		Panel-frzr Door,stainless Steel ,lh ,w/foam Insul		Appelez-nous	-
12	218395401		Nameplate, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030018		Door Stop, Black, Frzr				$ 26.78
15	218626157		Panel-refr Door,stainless Steel ,lh ,w/foam Insul		Appelez-nous	-
18	218756503		Handle-door,stainless Steel ,with Insert,& Set Screw		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
34	218783202		Bumper-light Switch, Black		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
79	218755401		Screw-set,10-32 X 0.375			Immediately	$ 25.02
80	218755504		Screw-shoulder, 10 Ab, Handle Mounting   (Replaces: 218755501)			Immediately	$ 18.60
*92880	01300019EA		Cleaner, Stainless Steel   (Replaces: 218490900)			Immediately	$ 21.27
*92881	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
