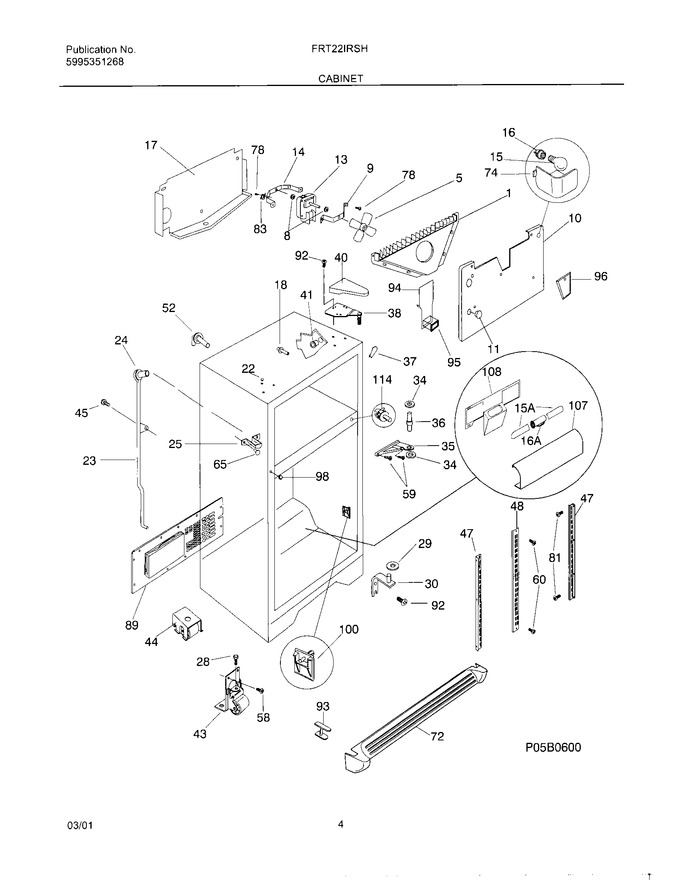

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215937600		Shroud-evap Fan Mtg				$ 65.94
5	5303292398		Fan Blade				$ 50.35
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	5304416067		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
13	5300158289		Motor-evap Fan   (Replaces: 218661700)			Immediately	$ 149.94
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
15	215812200		Light Bulb/lamp,25w				$ 16.54
15	218708700		Light Bulb/lamp, Crisper Light, (2)				$ 50.78
16	5303299157		Socket-light/lamp, Crisper Light				$ 63.63
16	5308000129		Socket-light/lamp				$ 62.16
17	5304415955		Trough-drain		Appelez-nous	-
18	218980401		Support-evap Cover,(2)		Appelez-nous	-
22	215774918		Plug-button, Black, Upr Hinge Holes				$ 9.86
23	215266301		Tube Drain, W/seal Ring				$ 72.14
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5303292412		Spout-drain Tube				$ 13.81
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	218993701		Bracket-lower Hinge,rh ,w/hinge Pin		Appelez-nous	-
34	218737000		Washer-ctr Hnge Pin				$ 1.37
35	218998903		Bracket-ctr Hinge,black				$ 11.13
36	218971101		Pin-center Hinge				$ 42.84
37	5303321083		Trim-cabinet Corner, Black				$ 9.92
38	218215244		Bracket-upper Hinge,with Closer ,black ,lh				$ 68.28
40	5303323268		Cover-upper Hinge,black				$ 50.35
41	5303294246		Grommet-shelf Mtg,1.25`` Long		Appelez-nous	-
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
44	218738300		Roller Assy, Rear, (2)				$ 51.98
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	218233300		Channel-shelf Mtg,side ,(2)				$ 86.05
48	218877701		Channel-shelf Mtg,center		Appelez-nous	-
52	215454600		Tube-water,ice Mold Fill ,elbow				$ 81.11
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw,pan Hd,10-32 X 0.625,hinge/mull,thrd Form   (Replaces: 218188000)				$ 8.34
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250   (Replaces: 218362500)				$ 12.05
65	5303001361		Pin-mounting, Push-in, Plastic		Appelez-nous	-
72	218359612		Grille/kickplate, Black		Appelez-nous	-
74	215423500		Shield-light, Frzr		Appelez-nous	-
78	5303274237		Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
89	215741407		Cover-machine Compt,w/caution Label		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
93	218362603		Plug-grille, Black				$ 5.77
94	5303319993		Cover-air Duct		Appelez-nous	-
95	218663101		Gasket-air Duct Cvr		Appelez-nous	-
96	215775901		Cover-fan Access				$ 22.85
98	215099718		Plug-button,black		Appelez-nous	-
100	241503701		Support-crspr Cover				$ 41.82
107	218835902		Shield-light,crisper				$ 65.07
108	218834202		Cover-wiring,crisper Light				$ 56.05
114	5303299156		Switch-light/lamp, Black				$ 45.10
NI	5308016571		Plug-button,cab Liner Holes				$ 4.79
NI	5303294247		Grommet-shelf Mtg,.69`` Long		Appelez-nous	-
NI	5304403492		Tapping Plate,upper Hinge ,(2)		Appelez-nous	-
NI	218999101		Tapping Plate,lower Hinge		Appelez-nous	-
NI	218044800		Seal-air Duct Cover		Appelez-nous	-
NI	218999001		Tapping Plate,lower Hinge		Appelez-nous	-
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	5303321321		Paint,touch-up,black			Immediately	$ 21.97
NI	215848000		Spacer-air Channel		Appelez-nous	-
NI	5308017044		Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23) X 7/8				$ 6.34
