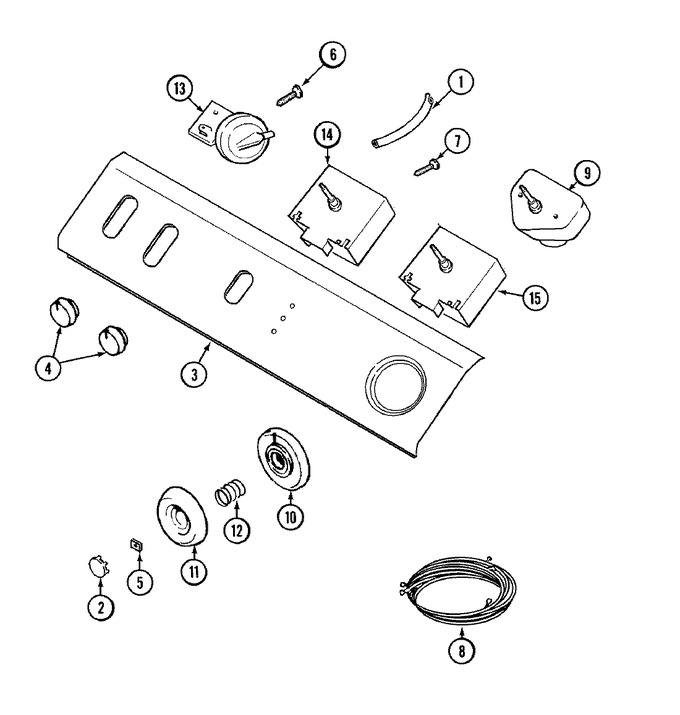

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22001619		Tube, Water Level Switch   (Replaces: 22001036)	10			$ 75.73
2	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
3	22003022		Panel, Control (wht)	10	Appelez-nous	-
4	WP22001663		Knob, Selector Switch (wht)   (Replaces: 22001663)	10		Immediately	$ 53.16
5	211605		Retainer, Timer Knob	10	Appelez-nous	-
6	22001662		Screw	10	Appelez-nous	-
7	WP3400094		Screw, Timer   (Replaces: 22001661)	10			$ 7.14
8	22002412		Wire Harness, Main	10	Appelez-nous	-
9	WP22003363		Timer   (Replaces: 22002411)	10			$ 323.15
10	22001660		Dial Skirt - White	10			$ 21.47
11	WP22001659		Timer Knob - Grey   (Replaces: 22001659)	10		Immediately	$ 26.38
12	211065		Spring, Timer Knob	10			$ 5.70
13	WP22001656		5 Level Rotary Pressure Switch   (Replaces: 22001656)	10			$ 144.09
14	22001825		Temperature Switch - Rotary	10	Appelez-nous	-
15	22001794		Switch, Rotary (2 Pos)	10			$ 24.91
16	22003420		Manual, Use & Care	10	Appelez-nous	-
16	22003421		Manual, Use & Care (frc)	10	Appelez-nous	-
