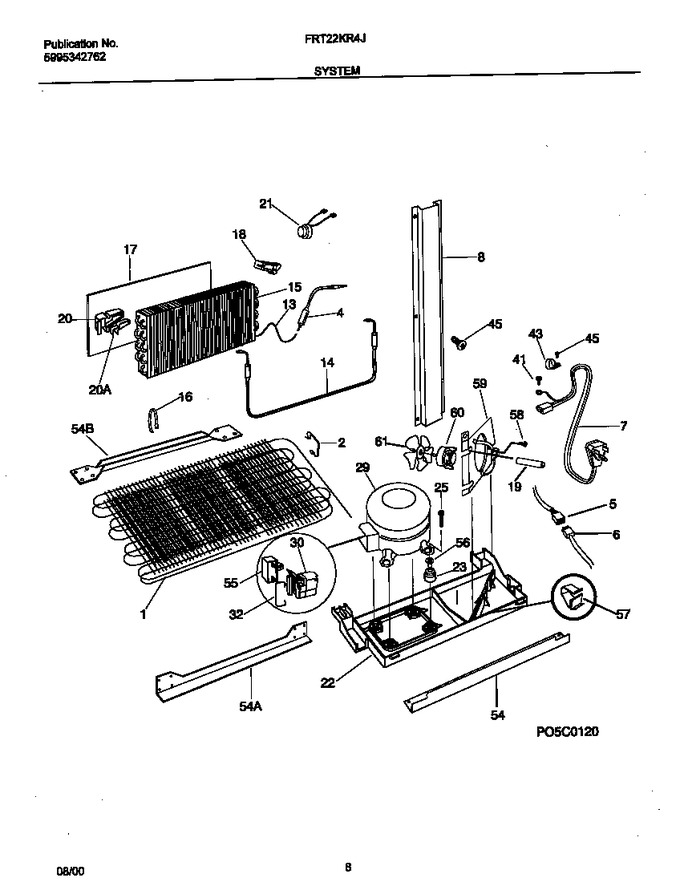

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218787700		Condenser		Appelez-nous	-
2	5303289029		Clip-cond Mtg. (4)		Appelez-nous	-
4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
5	218965501		Harness-wiring,main		Appelez-nous	-
6	218965901		Wiring Harness,compressor		Appelez-nous	-
7	215459201		Cord-electric Power				$ 66.47
8	218803400		Cover-wiring				$ 79.11
13	218168602		Heat Exchanger, Suction Line				$ 181.07
14	5317842502		Heater-defrost				$ 133.96
15	218956001		Evaporator,bundy				$ 207.15
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	5304415939		Insulator-evap,plastic		Appelez-nous	-
18	218979801		Block-evap Coil,styrofoam Insul ,rh		Appelez-nous	-
19	218631200		Tube, Rubber		Appelez-nous	-
20	218979501		Block-evap Coil,styrofoam Insul ,lh		Appelez-nous	-
20	5303292405		Insulation Plug,lh		Appelez-nous	-
21	297216600		Thermostat-defrost   (Replaces: 218969902)			Immediately	$ 27.52
22	218811100		Base-compressor Mtg, (drain Pan)		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	218773500		Screw-compressor Mtg, Hex Washer Head, 10b X 1 1/4		Appelez-nous	-
29	5304478809		Compressor,r134a ,w/o Electricals   (Replaces: 218374517)			Immediately	$ 584.96
30	218721101		Starter/overload Assy				$ 102.87
32	218740800		Clamp,elec Cont Mtg ,compressor				$ 65.21
41	5308000039		Screw		Appelez-nous	-
43	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	218769200		Screw,hx Wshr Hd Spec ,6-32 X .5		Appelez-nous	-
54	5303289027		Rail-cabinet Base,rear		Appelez-nous	-
54	5303289292		Rail-cabinet Base, Front		Appelez-nous	-
54	5303289311		Rail-compr Support		Appelez-nous	-
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
56	218769300		Insert-compressor Mtg		Appelez-nous	-
57	218247300		Clip-wiring Harness		Appelez-nous	-
58	215004600		Screw,cond Fan Mtr, Hx Serr Wshr Hd, 8-36 X 7/16, (2)		Appelez-nous	-
59	5303289031		Shroud-cond Fan Mtr		Appelez-nous	-
60	215501901		Motor-condenser Fan				$ 202.70
61	5303289032		Blade-cond Fan		Appelez-nous	-
*92307	5303208866		Spacer-cond Tube,black				$ 1.94
*92308	5303289026		Spacer Tube		Appelez-nous	-
*92309	5304406721		Spacer-cond Tube,round ,5/8 Od X .81``lg		Appelez-nous	-
*92310	5303001199		Clamp				$ 65.92
*92311	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
*92312	5300141713		Screw,hex Wshr Hd ,8-32 X 0.625 ,spec		Appelez-nous	-
*92313	5303210353		Screw,hex Wshr Hd ,8-32ca X .5		Appelez-nous	-
*92314	218754500		Screw,hex Hd Ser Wshr ,8-18 X 0.375		Appelez-nous	-
*92315	215226700		Seal-foam,cond Fan Shroud		Appelez-nous	-
*92316	215004700		Nut,speed				$ 3.78
*92317	215004800		Grommet-silencer				$ 52.50
*92318	5303917214		Hot Tube Repair Kit, Service				$ 393.07
