01 - Base
02 - Cabinet
03 - Clutch, Brake & Belts
04 - Control Panel
05 - Top
06 - Transmission
07 - Tub
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

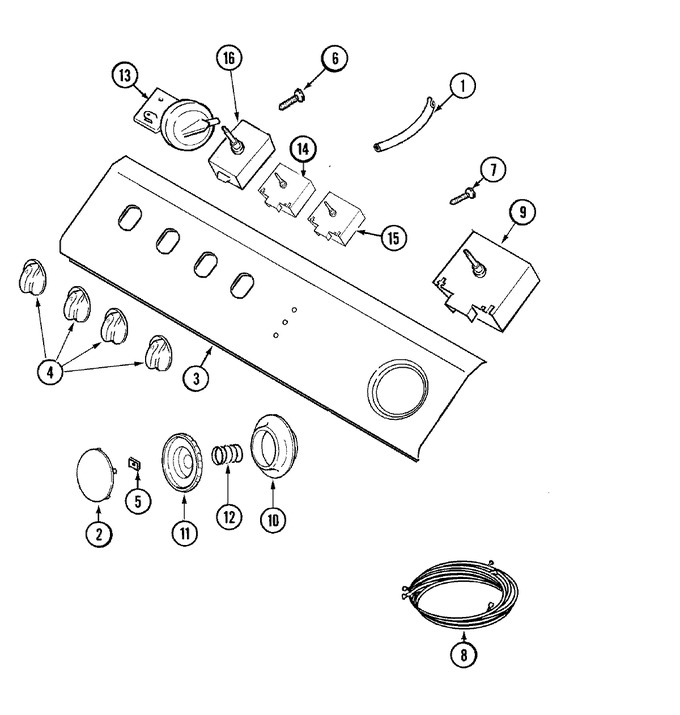

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001619 | Tube, Water Level Switch (Replaces: 22001036) | 10 |
|
$ 75.73 | ||||
| 2 | WP22001664 | Timer Knob Insert/cap (wht) (Replaces: 22001664) | 10 |
|
$ 7.85 | ||||
| 3 | 22002573 | Panel, Control (wht) | 10 |
|
- | ||||
| 4 | WP22001663 | Knob, Selector Switch (wht) (Replaces: 22001663) | 10 |
|
Immediately | $ 53.16 | |||
| 5 | 211605 | Retainer, Timer Knob | 10 |
|
- | ||||
| 6 | 22001662 | Screw | 10 |
|
- | ||||
| 7 | WP3400094 | Screw, Timer (Replaces: 22001661) | 10 |
|
$ 7.14 | ||||
| 8 | 22002575 | Wire Harness, Main | 10 |
|
- | ||||
| 9 | WP22004262 | Timer (Replaces: 22002189) | 10 |
|
$ 411.70 | ||||
| 10 | 22001660 | Dial Skirt - White | 10 |
|
$ 21.47 | ||||
| 11 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
Immediately | $ 26.38 | |||
| 12 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 13 | 22001775 | 4 Level Rotary Pressure Switch | 10 |
|
$ 78.59 | ||||
| 14 | 22001825 | Temperature Switch - Rotary | 10 |
|
- | ||||
| 15 | 22001794 | Switch, Rotary (2 Pos) | 10 |
|
$ 24.91 | ||||
| 16 | 22002578 | Switch, Speed (rotary) | 10 |
|
- | ||||
| 17 | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- | ||||
| 18 | 22002576 | Manual, Use & Care | 10 |
|
- | ||||
| 18 | 16008371 | Manual, Service-no Refund | 10 |
|
- | ||||
| 19 | 22002577 | Manual, Use & Care (french) | 10 |
|
- |
