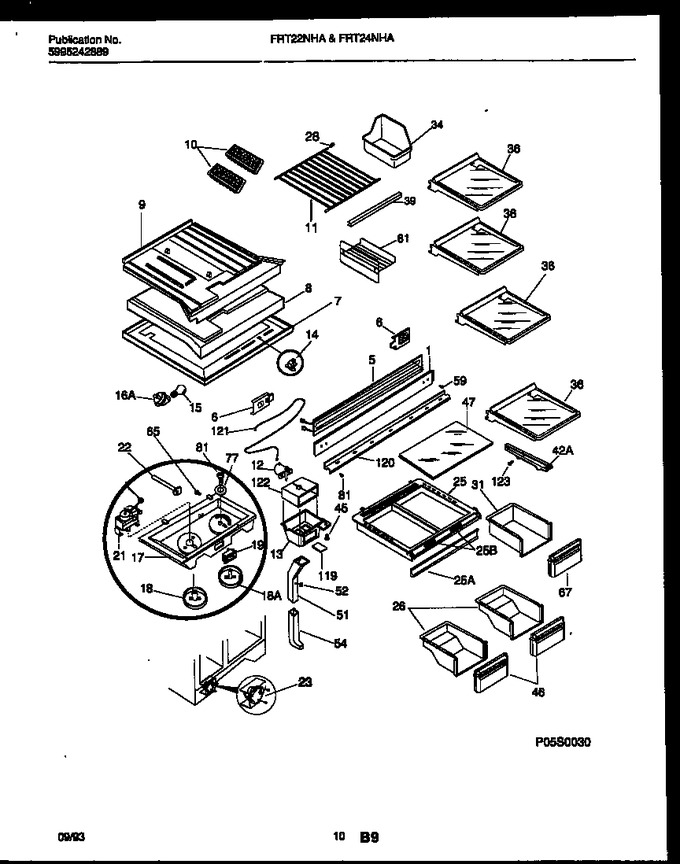

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215002201		Mullion, White		Appelez-nous	-
5	215096800		Heater-mullion		Appelez-nous	-
6	215096700		Tapping Plate,mullion Mtg,(2)		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
7	215055801		Top Panel-refr		Appelez-nous	-
8	215062700		Divider,styrofoam		Appelez-nous	-
8	3205266		Protector-edge (non-illustrated)				$ 80.09
9	215058300		Bottom Panel-frzr		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	5303294244		Shelf-freezer		Appelez-nous	-
12	215363800		Spacer-air Deflectr(non-illustrated)		Appelez-nous	-
12	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
12	215363900		Washer-air Deflectr (non-illustrated)		Appelez-nous	-
13	215132600		Cover-air Deflector		Appelez-nous	-
13	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
17	5303292409		Box-control		Appelez-nous	-
17	215280700		Nut-anchor, Cont Box Cover (non-illustrated)		Appelez-nous	-
18	5303292410		Knob-temp Control, Refr		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303001260		Screw				$ 6.73
21	5303292452		Control-temperature				$ 183.12
22	5303274945		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 5303275811)			Immediately	$ 28.20
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	5303289058		Shield-defrost Timr, Btm (non-illustrated)		Appelez-nous	-
23	215277000		Cover-defrost Timer, Top (non-illustrated)		Appelez-nous	-
25	215216616		Cover, Crisper Pan, With Beam, Trim, Humid Cont		Appelez-nous	-
26	215298001		Pan-crisper(2)				$ 122.12
28	215341200		Cap-protector				$ 2.54
31	5303292388		Pan-meat		Appelez-nous	-
34	5303289069		Container-ice		Appelez-nous	-
36	215406102		Shelf, Cantilever, ``spill, Safe``, Half, (4)		Appelez-nous	-
39	215217502		Trim-frzr Shelf		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303292657		Front-crisper Pan,(2)		Appelez-nous	-
47	5303297898		Insert-pan Cover, Glass		Appelez-nous	-
51	215132801		Duct, Meat Keeper, Upper		Appelez-nous	-
51	215133200		Insulation-air Duct, Rear (non-illustrated)		Appelez-nous	-
51	215133300		Insulation-air Duct, Front (non-illustrated)		Appelez-nous	-
52	215133000		Damper-air, Meat Kpr Duct (non-illustrated)		Appelez-nous	-
52	215132901		Control, Damper, Meat Kpr Duct		Appelez-nous	-
54	215133100		Duct, Meat Keeper, Lower		Appelez-nous	-
59	215097000		Screw-hinge/mullion, Torx Head, 10-24 X 7/8		Appelez-nous	-
61	215781501		Shelf-ice Tray, Wire				$ 136.19
65	5303274946		Rivet, Plastic		Appelez-nous	-
67	5303292662		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
119	215132700		Cap, Air Duct				$ 18.38
120	215097101		Seal-refr Top		Appelez-nous	-
121	215209400		Nut,push-on,damper Cable (non-illustrated)		Appelez-nous	-
121	215364001		Cable-damper Control				$ 82.01
122	215132502		Block, Air Deflector		Appelez-nous	-
123	08014528		Screw - Hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli				$ 4.31
86529	215339900		Clip-cantilever Shlf				$ 5.83
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18A	5303292411		Knob-temp Control, Frzr		Appelez-nous	-
25A	5303298486		Trim, Crisper Cover		Appelez-nous	-
25B	5303292403		Control, Humidity		Appelez-nous	-
42A	215002401		Hanger-pan/tray,rh (non-illustrated)				$ 85.84
42A	215002301		Hanger-pan / Tray, Lh				$ 65.82
