01 - Cooktop Parts
02 - Door Parts

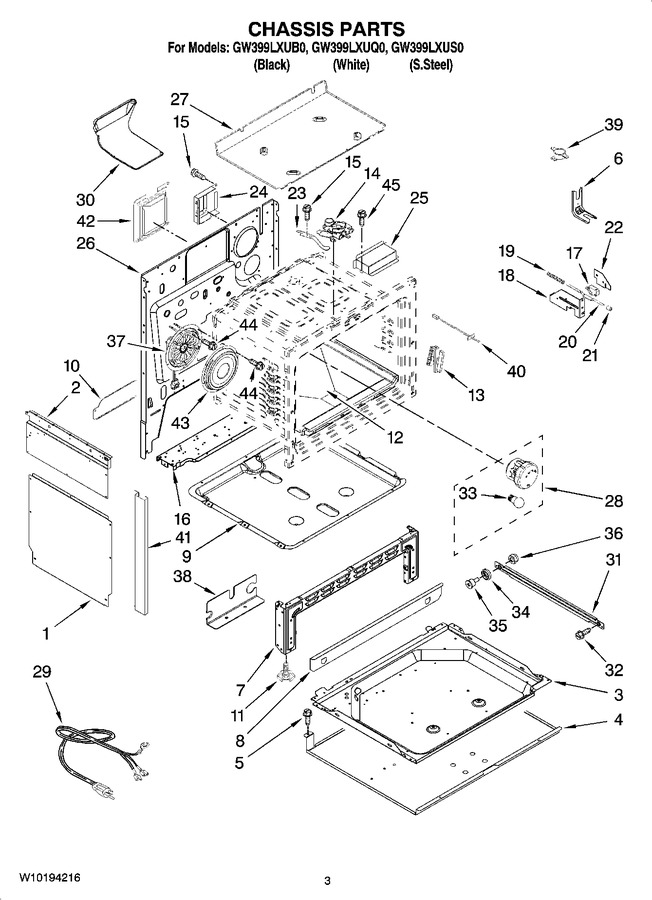

03 - Chassis Parts
04 - Manifold Parts
05 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010905 | Shield, Lower Side |
|
$ 53.29 | |||||
| 2 | 74010822 | Panel, Shield (right) |
|
- | |||||
| 2 | 74010821 | Panel, Shield (left) |
|
- | |||||
| 3 | 74009480 | Retainer, Bottom |
|
- | |||||
| 4 | W10177095 | Shield, Drawer |
|
- | |||||
| 5 | W11233072 | Screw (Replaces: 74002979) |
|
Immediately | $ 12.62 | ||||
| 6 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 74005564) |
|
Immediately | $ 4.69 | ||||
| 7 | 74010882 | Oven, Front Lower |
|
- | |||||
| 8 | 74001219 | Baffel, Oven Front |
|
- | |||||
| 9 | 74004465 | Pan, Burner |
|
- | |||||
| 10 | 74010815 | Extention, Back |
|
- | |||||
| 11 | WP74010805 | Foot, Leveler (4) (Replaces: 74010805) |
|
$ 6.47 | |||||
| 12 | WP2205F054-19 | Bottom, Oven (Replaces: 74010948) |
|
$ 663.49 | |||||
| 13 | 74011142 | Hinge (2) |
|
Immediately | $ 108.22 | ||||
| 14 | 74010819 | Latch Assembly |
|
$ 324.29 | |||||
| 15 | 74003975 | Screw, Latch Lever |
|
$ 12.02 | |||||
| 16 | 74007129 | Support, Valve/reg |
|
$ 9.81 | |||||
| 17 | WP74008263 | Switch, Light (Replaces: 74008263) |
|
$ 147.27 | |||||
| 18 | 74001632 | Bracket, Switch |
|
- | |||||
| 19 | 74001629 | Spring, Switch |
|
$ 15.03 | |||||
| 20 | 74003562 | Rod, Door Switch |
|
- | |||||
| 21 | 74001631 | Bumper, Rod |
|
$ 5.22 | |||||
| 22 | 74001872 | Insulator, Switch |
|
- | |||||
| 23 | 74001075 | Lever, Lock |
|
- | |||||
| 24 | 74004591 | Cover, Access |
|
- | |||||
| 25 | 74010845 | Cover, Door Lock |
|
- | |||||
| 26 | 74011465 | Back, Main Gas |
|
- | |||||
| 27 | W10177086 | Bottom,burner Box |
|
- | |||||
| 28 | WP7407P182-60 | Light Assembly (Replaces: 74010885) |
|
Immediately | $ 66.10 | ||||
| 29 | 74004438 | Cord, Power |
|
$ 27.98 | |||||
| 30 | 74011923 | Box, Assy Vent |
|
- | |||||
| 31 | 74003565 | Runner, Drawer (2) |
|
- | |||||
| 32 | WP4159193 | Screw (Replaces: 7101P017-60) |
|
$ 4.29 | |||||
| 33 | 8009 | Bulb-oven (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 34 | WP74004078 | Roller Drawer (2) (Replaces: 74004078) |
|
Immediately | $ 10.70 | ||||
| 35 | 74005231 | Shaft, Roller |
|
$ 9.23 | |||||
| 36 | 74005230 | Nut, Lock |
|
$ 12.02 | |||||
| 37 | 74010902 | Fan, Convection |
|
- | |||||
| 38 | W10177020 | Bracket,pwr Supply |
|
- | |||||
| 39 | 7450P030-60 | Switch, Limit (Replaces: 74010904) |
|
Immediately | $ 87.26 | ||||
| 40 | 12001655 | Sensor, Short (Replaces: 74004944) |
|
Immediately | $ 41.01 | ||||
| 41 | 74010831 | Trim, Side (2) (black) |
|
- | |||||
| 41 | 74010832 | Trim, Side (2) (white) |
|
- | |||||
| 42 | 3804F300-51 | Retainer, Conv Insulation (Replaces: 74010814) |
|
$ 59.48 | |||||
| 43 | 74008315 | Cover, Conv Fan |
|
- | |||||
| 44 | WP7101P434-60 | Screw (Replaces: 71001394) |
|
$ 6.26 | |||||
| 45 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 7.04 | ||||
| W10163917 | Insulation, Control Shield |
|
- | ||||||
| W10165852 | Insulation, Back |
|
- | ||||||
| 74010987 | Insulation, Wrap |
|
$ 60.00 | ||||||
| 7002P140-60 | Insulation, Drawer |
|
- | ||||||
| 74010986 | Insulation, Lower Sides |
|
- |
