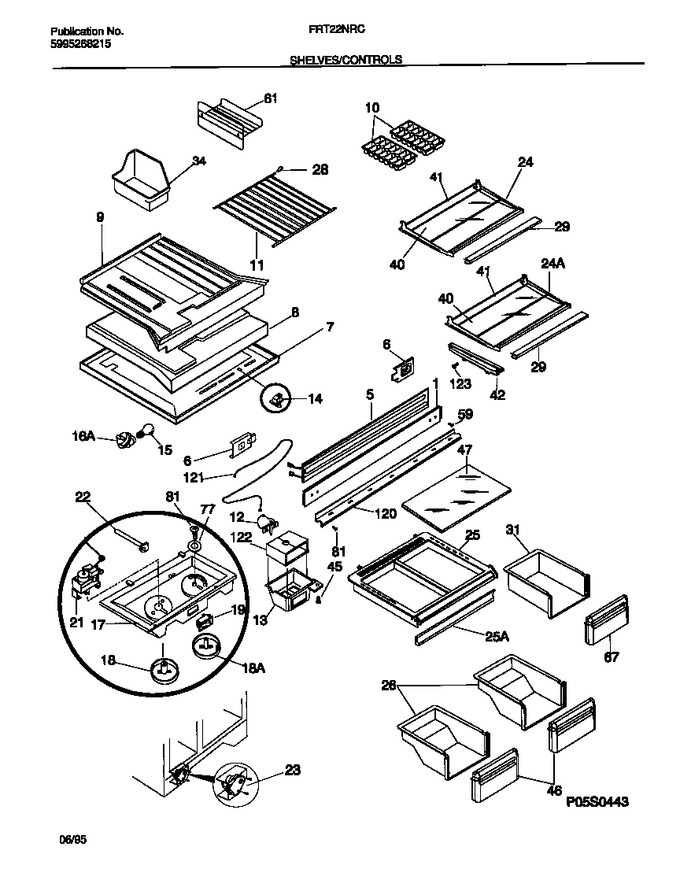

SELECT A DIAGRAM

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215002201		Mullion, White		Appelez-nous	-
5	215096800		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
7	215055803		Top Panel-refr		Appelez-nous	-
8	215062700		Divider,styrofoam		Appelez-nous	-
9	215058300		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
11	5303297948		Shelf-freezer,flat,full-width,wire		Appelez-nous	-
12	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
13	215420300		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	215932904		Box-control		Appelez-nous	-
18	5303308309		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5303305487		Control, Temperature		Appelez-nous	-
22	215932100		Housing,cont Cap Tube		Appelez-nous	-
23	215846602		Timer-defrost   (Replaces: 5303275811)			Immediately	$ 28.20
24	215919142		Frame-full Shelf, Cantilever		Appelez-nous	-
25	215216638		Cover-crisper Pan, W/beam & Trim, Less Insert		Appelez-nous	-
26	5303292386		Pan-crisper, (2)				$ 236.83
28	215341200		End Cap-shelf, Protector				$ 2.54
29	215919421		Trim-full Shelf, Front		Appelez-nous	-
31	5303292388		Pan-meat		Appelez-nous	-
34	5303289069		Container-ice		Appelez-nous	-
40	218390590		Glass-full Shelf		Appelez-nous	-
41	215919806		Trim-full Shelf, Rear		Appelez-nous	-
42	5303209272		Hanger-pan/basket, Lh				$ 90.83
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303310089		Front-crisper Pan, (2)		Appelez-nous	-
47	218390591		Insert-pan Cover, Glass				$ 132.07
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	5303310090		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	218019201		Seal-refr Top		Appelez-nous	-
121	215364001		Cable-damper Contrl				$ 82.01
122	218561203		Block-air Deflector, Lh		Appelez-nous	-
122	218561201		Block-air Deflector, Rh		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
*79964	215848000		Spacer-air Channel		Appelez-nous	-
11A	215934600		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
11B	218159700		Spacer, Frzr Shelf (not Illustrated)		Appelez-nous	-
121A	215209400		Nut, Push, On, Damper Cable (not Illustrated)		Appelez-nous	-
12A	215363800		Spacer, Air Deflectr (not Illustrated)		Appelez-nous	-
12B	215363900		Washer, Air Deflectr (not Illustrated)		Appelez-nous	-
13A	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
17A	215935700		Nut, Anchor, Control Box Mtg (not Illustrated)		Appelez-nous	-
18A	5303308310		Knob-temp Control, (damper)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	215277000		Cover, Defrost Timer, Top (not Illustrated)		Appelez-nous	-
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23C	5303289058		Shield, Defrost Timr, Btm (not Illustrated)		Appelez-nous	-
24A	215919144		Frame-meat Kpr Shlf, Cantilever		Appelez-nous	-
25A	5303310091		Trim-crisper Cover		Appelez-nous	-
42A	5303209273		Hanger-pan/basket, Rh (not Illustrated)				$ 60.06
7A	5303001380		Screw		Appelez-nous	-
