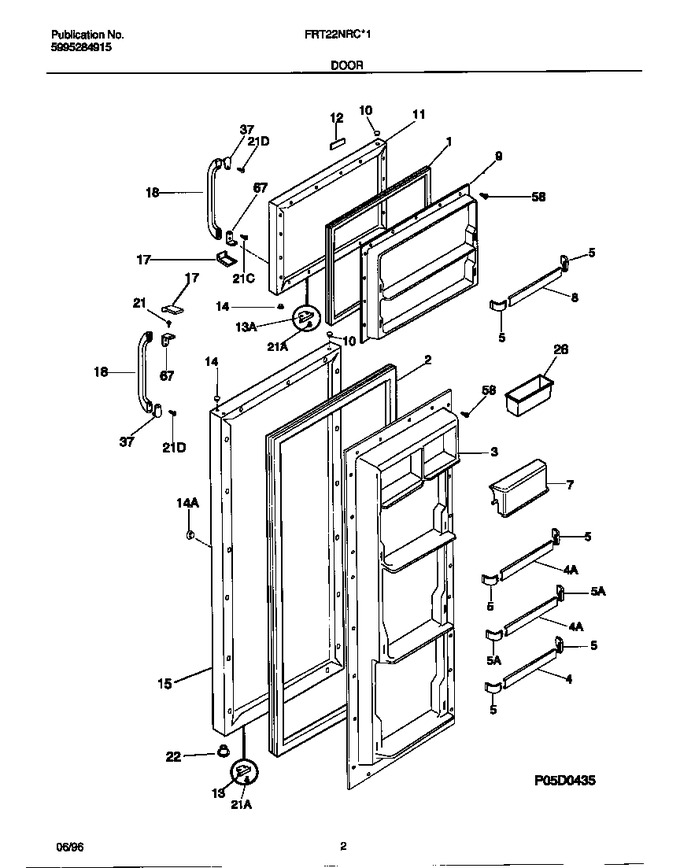

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608915		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	5303292369		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	218477601		Panel-inner Door, Refr		Appelez-nous	-
4	215516288		Rack-door, (2)		Appelez-nous	-
4	215516287		Rack-door		Appelez-nous	-
5	215251501		Support-door Rack, ``gallon``, Rh/lh		Appelez-nous	-
5	215251401		Support-door Rack, ``2-liter``, Rh/lh		Appelez-nous	-
7	5303310094		Door-dairy		Appelez-nous	-
8	215516289		Rack-door, (2)		Appelez-nous	-
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	215676801		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	218156512		Nameplate Assy, White, With Magnet		Appelez-nous	-
12	218364001		Frame-nameplate, White (not Illustrated)		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
12	215008607		Label-nameplate, White (not Illustrated)		Appelez-nous	-
13	215030001		Door Stop, White, Frzr				$ 29.61
13	5303289522		Door Stop				$ 40.17
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
14	215562101		Plug-button, White, Refr Door Front		Appelez-nous	-
15	215677001		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	215361301		Handle End, White				$ 21.70
18	215339601		Handle-door, White		Appelez-nous	-
21	215416100		Screw-handle/brkt, Flat Head, Cr, 10-32 X 7/16		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
21	215659600		Screw-handle Mtg,hex Head, 10-32 X 1/2		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
37	215361401		Trim, Handle, White		Appelez-nous	-
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
67	215367300		Bracket-handle Mtg,(2)		Appelez-nous	-
*42960	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
