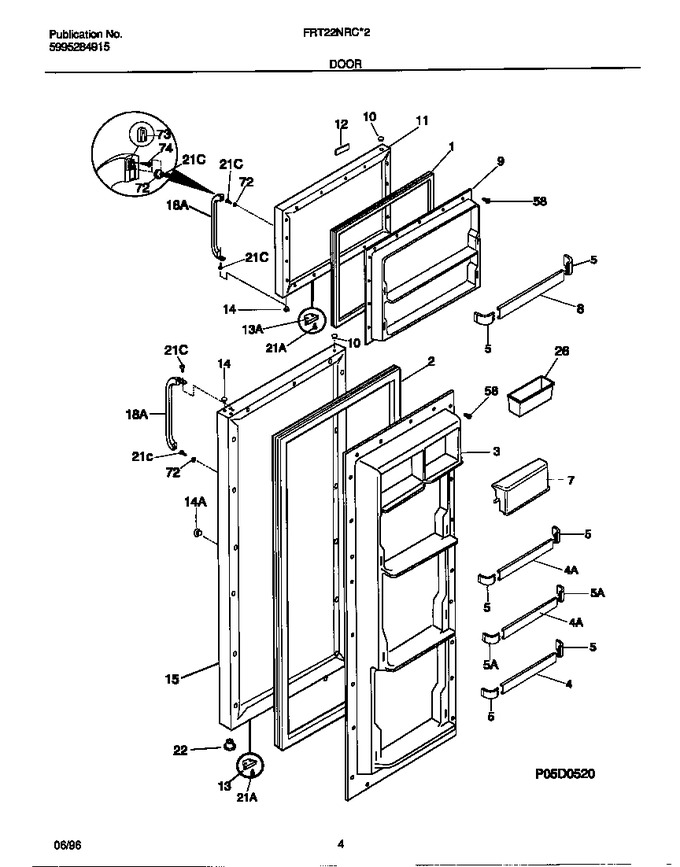

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608915 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 2 | 5303292369 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 218477601 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215516288 | Rack-door, (2) |
|
- | |||||
| 4 | 215516287 | Rack-door |
|
- | |||||
| 5 | 215251401 | Support-door Rack, ``2-liter``, Rh/lh |
|
- | |||||
| 5 | 215251501 | Support-door Rack, ``gallon``, Rh/lh |
|
- | |||||
| 7 | 5303310094 | Door-dairy |
|
- | |||||
| 8 | 215516289 | Rack-door, (2) |
|
- | |||||
| 9 | 215278301 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303292413 | Plug-button, White, Hinge Brg Hole |
|
$ 4.94 | |||||
| 11 | 5303917852 | Panel-frzr Door, White, W/foam Insulatn |
|
- | |||||
| 12 | 215008607 | Label-nameplate, White (not Illustrated) |
|
- | |||||
| 12 | 215518000 | Magnet-nameplate (not Illustrated) |
|
- | |||||
| 12 | 218364001 | Frame-nameplate, White |
|
- | |||||
| 13 | 215030001 | Door Stop, White, Frzr |
|
$ 29.61 | |||||
| 13 | 5303289522 | Door Stop |
|
$ 40.17 | |||||
| 14 | 240494001 | Plug-button,white ,refr Door Front , (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917854 | Panel-refr Door, White, W/foam Insulatn |
|
- | |||||
| 18 | 218397501 | Handle-door,white ,w/block & Screw |
|
$ 112.04 | |||||
| 21 | 218252201 | Screw, No. 8 Truss Head, 10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 21 | 218578600 | Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4 |
|
$ 8.08 | |||||
| 22 | 5303289320 | Bearing-hinge |
|
$ 19.69 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5303314236 | Screw, Truss/ph Head, 8-18ab X 0.500 |
|
- | |||||
| 72 | 218397000 | Button-handle Mtg, Dovetail |
|
$ 16.74 | |||||
| 73 | 218396700 | Block-handle Mtg, Dovetail |
|
Immediately | $ 45.36 | ||||
| 74 | 215503203 | Screw, Cr Pan Head, 10, 16 X 1/2, Special/hi, Lo (Replaces: 215503200) |
|
Immediately | $ 7.09 | ||||
| *42961 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
