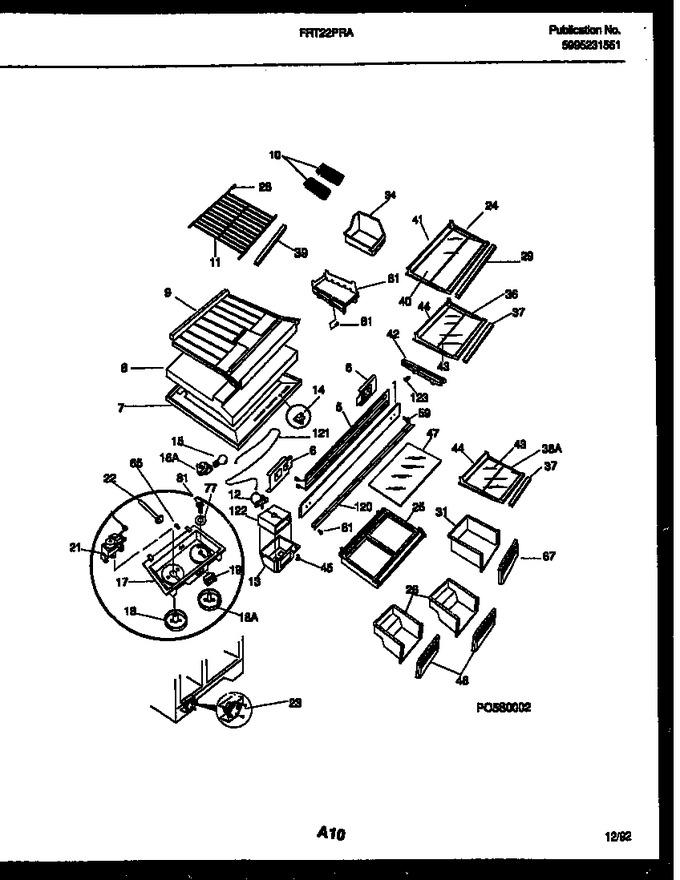

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215002201		Mullion, White		Appelez-nous	-
5	215096800		Heater-mullion		Appelez-nous	-
6	215096700		Tapping Plate,mullion Mtg,(2)		Appelez-nous	-
7	5303001380		Screw		Appelez-nous	-
7	215055801		Top Panel-refr		Appelez-nous	-
8	215062700		Divider,styrofoam		Appelez-nous	-
8	3205266		Protector-edge (non-illustrated)				$ 80.09
9	215058300		Bottom Panel-frzr		Appelez-nous	-
10	01121808		Ice Tray, Plastic		Appelez-nous	-
11	5303294244		Shelf-freezer		Appelez-nous	-
12	215363900		Washer-air Deflector (non-illustrated)		Appelez-nous	-
12	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
12	215363800		Spacer-air Deflector (non-illustrated)		Appelez-nous	-
13	215132600		Cover-air Deflector		Appelez-nous	-
13	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
17	5303292409		Box-control		Appelez-nous	-
17	215280700		Nut-anchor, Cont Box Cover (non-illustrated)		Appelez-nous	-
18	5303292410		Knob-temp Control, Refr		Appelez-nous	-
19	5303286905		Switch-energy Saver				$ 27.08
21	5303001260		Screw				$ 6.73
21	5303292452		Control-temperature				$ 183.12
22	5303274945		Housing, Cont Cap Tube		Appelez-nous	-
23	215277000		Cover-defrost Timer, Top (non-illustrated)		Appelez-nous	-
23	5303289058		Shield-defrost Timr, Btm (non-illustrated)		Appelez-nous	-
23	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23	215846602		Timer   (Replaces: 5303275811)			Immediately	$ 28.20
24	215069017		Frame-full Shelf, Cantilever		Appelez-nous	-
25	215216605		Cover-crisper Pan, With Beam, Less Insert		Appelez-nous	-
26	5303292386		Pan-crisper, (2)				$ 236.83
28	215341200		Cap-protector				$ 2.54
29	5303209274		Retainer-glass (non-illustrated)		Appelez-nous	-
29	5303292381		Trim-full Shelf, Front		Appelez-nous	-
31	5303292388		Pan-meat		Appelez-nous	-
34	5303289069		Container-ice		Appelez-nous	-
36	215069016		Frame-half Shelf, Cantilever, (2)		Appelez-nous	-
37	5303292378		Trim-half Shelf, Front, (2)		Appelez-nous	-
37	5303209263		Retainer-glass (non-illustrated)		Appelez-nous	-
39	215217502		Trim-frzr Shelf		Appelez-nous	-
40	5303292382		Shelf-glass, Full Shelf		Appelez-nous	-
41	5303292380		Trim-full Shelf, Snap-on, Rear		Appelez-nous	-
42	215002301		Hanger-deli Tray, Lh				$ 65.82
42	215002401		Hanger-deli Tray, Rh (non-illustrated)				$ 85.84
43	5303292379		Shelf-glass, Half Shelf, (2)		Appelez-nous	-
44	5303292377		Trim-half Shelf, Snap-on, Rear, (2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5303292657		Front-crisper Pan,(2)		Appelez-nous	-
47	5303292392		Insert-crisper Cvr, Glass		Appelez-nous	-
59	215097000		Screw-hinge/mullion, Torx Head, 10-24 X 7/8		Appelez-nous	-
61	08009824		Compartmnt-ice Tray		Appelez-nous	-
65	5303274946		Rivet, Plastic		Appelez-nous	-
67	5303292662		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	215097101		Seal-refr Top		Appelez-nous	-
121	215364001		Cable-damper Contrl				$ 82.01
121	215209400		Nut,push-on,damper Cable (non-illustrated)		Appelez-nous	-
122	215132501		Block-air Deflector		Appelez-nous	-
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*71019	215339900		Clip, Cantilevr Shlf				$ 5.83
*71019	5303211351		Lock, Rear Trim		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18A	5303292411		Knob-temp Control, Frzr		Appelez-nous	-
36A	215069016		Frame-half Shelf, Cantilever, (2)		Appelez-nous	-
