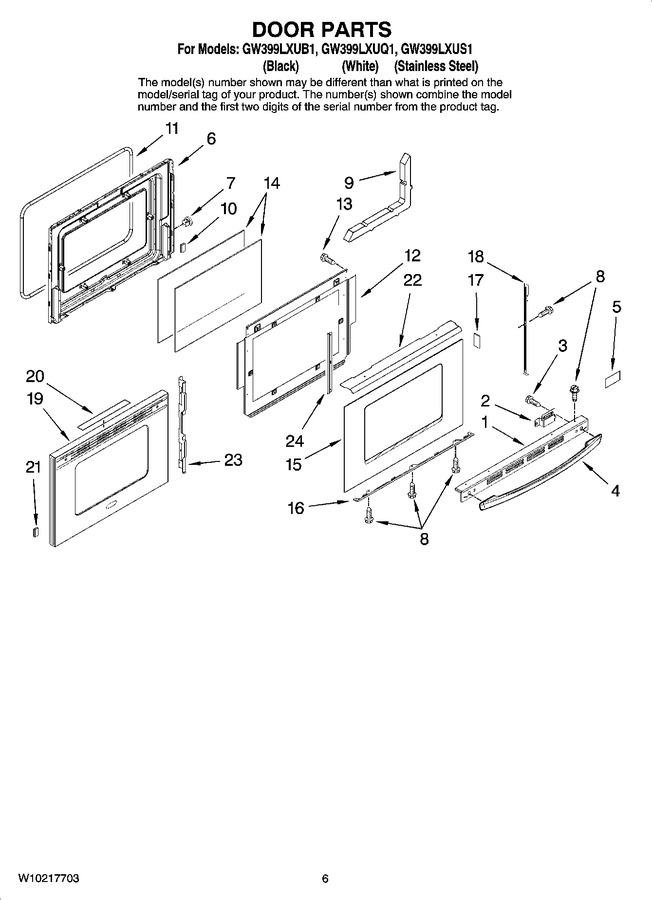

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10165729 | Trim, Door Top (black) |
|
- | |||||
| 1 | W10165726 | Trim, Door Top (white) |
|
- | |||||
| 2 | 3801F831-45 | Bracket, Handle (right) (Replaces: 74009698) |
|
$ 19.17 | |||||
| 2 | 3801F832-45 | Bracket, Handle (left) (Replaces: 74009699) |
|
$ 19.12 | |||||
| 3 | WP74006515 | Screw (s.steel Mdl Only) (Replaces: 74006635) |
|
$ 7.29 | |||||
| 3 | W11233072 | Screw (Replaces: 74002979) |
|
Immediately | $ 12.62 | ||||
| 4 | W10118431 | Handle, Door (black) |
|
$ 189.22 | |||||
| 4 | WPW10144883 | Handle, Door (s.steel) (Replaces: W10144883) |
|
$ 216.57 | |||||
| 4 | WPW10118430 | Handle, Door (white) (Replaces: W10118430) |
|
$ 239.39 | |||||
| 5 | 8303810 | Name Plate |
|
- | |||||
| 6 | 74011456 | Liner, Door |
|
- | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 74001574) |
|
Immediately | $ 9.91 | ||||
| 8 | W11233072 | Screw, Trim (s.steel) (Replaces: 74009268) |
|
Immediately | $ 12.62 | ||||
| 8 | WP98008544 | Screw, Trim (white) (Replaces: 74009540) |
|
$ 11.89 | |||||
| 8 | W10828565 | Screw, Trim (black) (Replaces: 74009539) |
|
$ 6.70 | |||||
| 9 | WP74010043 | Insulation, Door (s.steel Mdl Only) (Replaces: 74010043) |
|
$ 67.18 | |||||
| 9 | 74003647 | Insulation, Door (black/white) |
|
- | |||||
| 10 | WP74005546 | Spacer (Replaces: 74005546) |
|
$ 9.48 | |||||
| 11 | 7201P143-60 | Seal, Door (s.steel Mdl Only) |
|
$ 16.81 | |||||
| 11 | WPW10162384 | Seal, Door (Replaces: W10162384) |
|
Immediately | $ 77.61 | ||||
| 12 | 3601F373-51 | Baffle, Retainer (Replaces: 74011457) |
|
$ 244.22 | |||||
| 13 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 14 | 74003645 | Glass, Inner (2) (clear) |
|
Immediately | $ 162.53 | ||||
| 14 | 74010231 | Glass, Inner (2) (coated) |
|
- | |||||
| 15 | W10170228 | Glass, Includes Glass, Tape & Logo (white) |
|
- | |||||
| 15 | W10170229 | Glass, Includes Glass, Tape & Logo (black) |
|
- | |||||
| 16 | 74009686 | Trim, Door Bottom (black) |
|
- | |||||
| 16 | WP3807F708-71 | Trim, Door Bottom (white) (Replaces: 74009687) |
|
$ 144.83 | |||||
| 17 | 74003664 | Tape, Foil |
|
- | |||||
| 17 | WP74004224 | Tape, White (Replaces: 74004224) |
|
$ 10.53 | |||||
| 17 | W10168886 | Tape, Protective |
|
- | |||||
| 18 | WP3608F116-71 | Trim, Door Side (white - Right) (Replaces: 74009694) |
|
$ 112.01 | |||||
| 18 | WP3608F117-71 | Trim, Door Side (white - Left) (Replaces: 74009695) |
|
$ 111.43 | |||||
| 18 | 74009692 | Trim, Door Side (black - Right) |
|
- | |||||
| 18 | 74009693 | Trim, Door Side (black - Left) |
|
- | |||||
| 19 | 7760P242-60 | Panel,oven Dr(sst) |
|
$ 242.20 | |||||
| 20 | 74011048 | Insulation, Foil (s.steel Mdl) |
|
$ 71.73 | |||||
| 21 | 7112P034-60 | Clip, Glass |
|
- | |||||
| 22 | 74011049 | Shield, Door |
|
- | |||||
| 23 | 74011050 | Retainer, Glass (s.steel Mdl) |
|
- | |||||
| 24 | 74011458 | Bracket, Glass (s.steel Mdl) |
|
- |
