SELECT A DIAGRAM
01 - Cooktop Parts
02 - Door Parts
03 - Chassis Parts

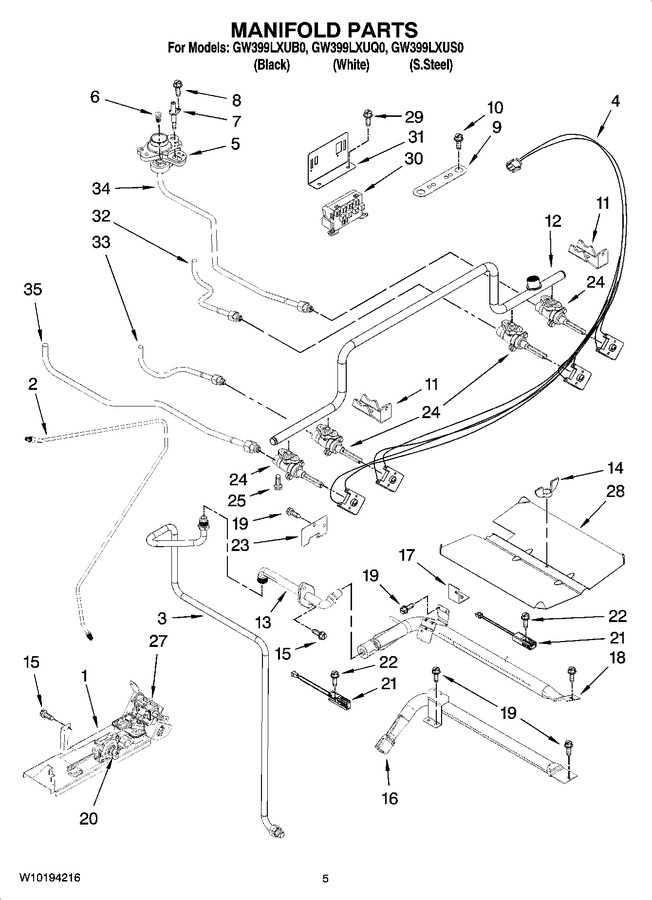

04 - Manifold Parts
05 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005465 | Cover, Bnr Valve |
|
- | |||||
| 2 | 7506P535-60 | Tubing, Gas Supply |
|
$ 98.64 | |||||
| 3 | W10177238 | Tube, Broil |
|
$ 55.03 | |||||
| 4 | W10177102 | Harness, Valve Includes Switches |
|
$ 116.74 | |||||
| 5 | W10164497 | Orifice, Holder (16k,rf) |
|
- | |||||
| 5 | 74010961 | Orifice, Holder (12k,lf) |
|
$ 97.14 | |||||
| 5 | 74010909 | Orifice, Holder (9.2k,rr) |
|
- | |||||
| 5 | WPW10407680 | Orifice, Holder (5k,lr) (Replaces: 74010908) |
|
$ 98.65 | |||||
| 6 | W10156836 | Orifice (rf) (Replaces: W10177434) |
|
$ 90.07 | |||||
| 6 | W10156136 | Orifice (lf,rr) (Replaces: W10177435) |
|
$ 86.28 | |||||
| 6 | W10177436 | Orifice (lr) |
|
- | |||||
| 7 | WP74009958 | Ignitor (4) (Replaces: 74009958) |
|
Immediately | $ 28.85 | ||||
| 8 | WP8273062 | Screw, Ignitor (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 9 | W10160530 | Retainer, Base (4) |
|
- | |||||
| 10 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.29 | |||||
| 11 | W10160655 | Bracket, Valve (4) |
|
- | |||||
| 12 | W10177097 | Pipe, Manifold |
|
- | |||||
| 13 | WP74010901 | Fitting, Broil (Replaces: 74010901) |
|
$ 75.29 | |||||
| 14 | 7103P030-60 | Nut, Wing |
|
$ 6.37 | |||||
| 15 | WP3387230 | Screw (Replaces: 7101P274-60) |
|
Immediately | $ 7.69 | ||||
| 16 | 74003960 | Burner, Bake |
|
$ 90.29 | |||||
| 17 | W10177006 | Support, Bake Bnr |
|
- | |||||
| 18 | 74004076 | Burner, Broil |
|
- | |||||
| 19 | WP7101P434-60 | Screw (Replaces: 71001394) |
|
$ 6.26 | |||||
| 20 | WP74006035 | Valve/regulator (Replaces: 74006035) |
|
$ 264.65 | |||||
| 21 | WP7432P136-60 | Ignitor, Bake (bake) (Replaces: 74008064) |
|
Immediately | $ 84.62 | ||||
| 21 | 74007498 | Ignitor (bake/broil) |
|
Immediately | $ 78.40 | ||||
| 22 | WP90767 | Screw (Replaces: 700502) |
|
Immediately | $ 7.04 | ||||
| 23 | 4005F421-45 | Cover, Ignitor Wire |
|
- | |||||
| 24 | W10836481 | Valve, Top Burner (lr) (Replaces: W10160941) |
|
$ 119.08 | |||||
| 24 | WPW10290838 | Valve, Top Burner (lf, Rf, Rr (3)) (Replaces: W10177101) |
|
$ 244.63 | |||||
| 25 | W11233072 | Support, Screw (4) (Replaces: 7101P338-60) |
|
Immediately | $ 12.62 | ||||
| 27 | WP7501P232-60 | Valve, Safety (Replaces: W10179530) |
|
Immediately | $ 302.92 | ||||
| 28 | W10163813 | Baffle, Bake (broil) |
|
- | |||||
| 28 | W10179632 | Baffle, Bake (bake) |
|
- | |||||
| 29 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 12.62 | ||||
| 30 | 8215557 | Spark Module (Replaces: 74004283) |
|
Immediately | $ 124.99 | ||||
| 31 | 74007020 | Support, Spark Mod |
|
- | |||||
| 32 | W10177103 | Tube, Burner (rf) |
|
$ 77.01 | |||||
| 33 | W10177105 | Tube, Burner (lf) |
|
$ 33.88 | |||||
| 34 | W10177104 | Tube, Burner (rr) |
|
$ 34.88 | |||||
| 35 | W10177107 | Tube, Burner (lr) |
|
- | |||||
| W10168551 | Spuds, Lp Gas |
|
$ 46.31 |
