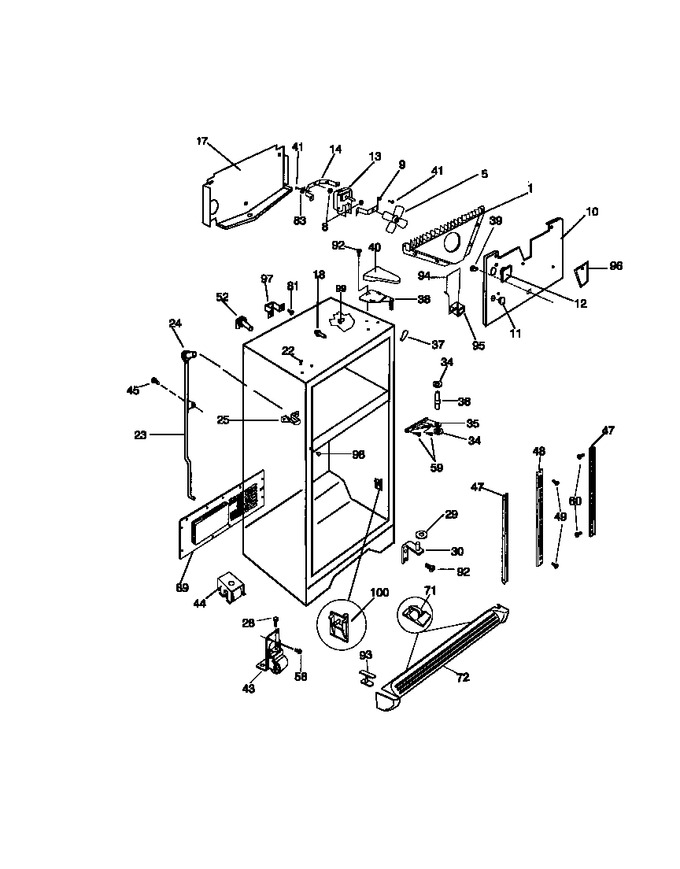

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215937600		Shroud-evap Fan Mtg				$ 65.94
5	5303292398		Fan Blade				$ 50.35
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	5303294238		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303292393		Plug-decorative,icemaker Holes		Appelez-nous	-
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
17	5303292408		Trough-drain		Appelez-nous	-
18	215245000		Support-evap Cover				$ 25.20
22	215134511		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	215266301		Tube Drain, W/seal Ring				$ 72.14
24	5303207353		Seal Ring, Drain Tube				$ 6.81
28	5303289062		Bolt-roller Adj,hex Head,5/16-24 X 7/8		Appelez-nous	-
29	215003200		Washer, .40x.63x .16,nylon				$ 54.86
34	215095400		Washer, Ctr Hnge Pin				$ 6.35
35	215002611		Bracket-ctr Hinge,almond		Appelez-nous	-
36	215095900		Pin-center Hinge				$ 19.58
37	5303202340		Trim-cabinet Corner, Almond		Appelez-nous	-
38	218158000		Bracket-upper Hinge		Appelez-nous	-
40	5303288946		Cover-upper Hinge, Almond				$ 31.30
41	5308000039		Screw		Appelez-nous	-
44	215163900		Roller Assy, Rear,(2)		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	218233300		Channel-shelf Mtg, Side				$ 86.05
48	5303292395		Channel-shelf Mtg, Center, Refr				$ 157.34
49	215507300		Screw, Hex Head, 8(ab) X 1-1/2		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
71	218515401		Clip-grille				$ 17.72
72	218359608		Grille/kickplate, Almond		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
89	5303288947		Cover-machine Compt		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
93	218362602		Plug-grille, Almond		Appelez-nous	-
95	215931300		Gasket-air Duct Cvr		Appelez-nous	-
96	215775900		Cover Fan-access				$ 30.82
97	5303289299		Bracket-im Plug		Appelez-nous	-
98	215099711		Plug-button, Almond, Ctr Hinge Hole		Appelez-nous	-
100	5303288973		Support-pan Cover				$ 24.41
*60402	5308016571		Plug-button, Cabinet Liner				$ 4.79
*60403	5303305325		Paint, Touch, Up, Almond		Appelez-nous	-
13A	215464100		Motor-evap Fan		Appelez-nous	-
13B	215474201		Washer, ``slinger``, Nylon, Evap Fan Shaft (not Illustrated)			Immediately	$ 18.43
25A	5303292412		Spout-drain Tube				$ 13.81
25B	5303001361		Pin-mounting, Push-in, Plastic (not Illustrated)		Appelez-nous	-
30A	218150800		Bracket-lower Hinge, W/ Hinge Pin		Appelez-nous	-
30B	5303289290		Tapping Plate, Lh (not Illustrated)		Appelez-nous	-
30C	5303289291		Tapping Plate, Rh (not Illustrated)		Appelez-nous	-
43A	5303289059		Roller Assy,front,(2)		Appelez-nous	-
43B	5308017044		Screw-roller Mtg, Spcl Ind Hex Hd, 5/16-18(23) X 7/8 (not Illustrated)				$ 6.34
52A	215454600		Tube-water Inlet				$ 81.11
52B	215058000		Plug-wtr Inlet Tube (not Illustrated)				$ 2.73
94A	5303292669		Cover-air Duct		Appelez-nous	-
94B	218044800		Seal, Air Duct Cover (not Illustrated)		Appelez-nous	-
99A	5303294246		Grommet-shelf Mtg		Appelez-nous	-
99B	5303294247		Grommet, Shelf Mtg (not Illustrated)		Appelez-nous	-
