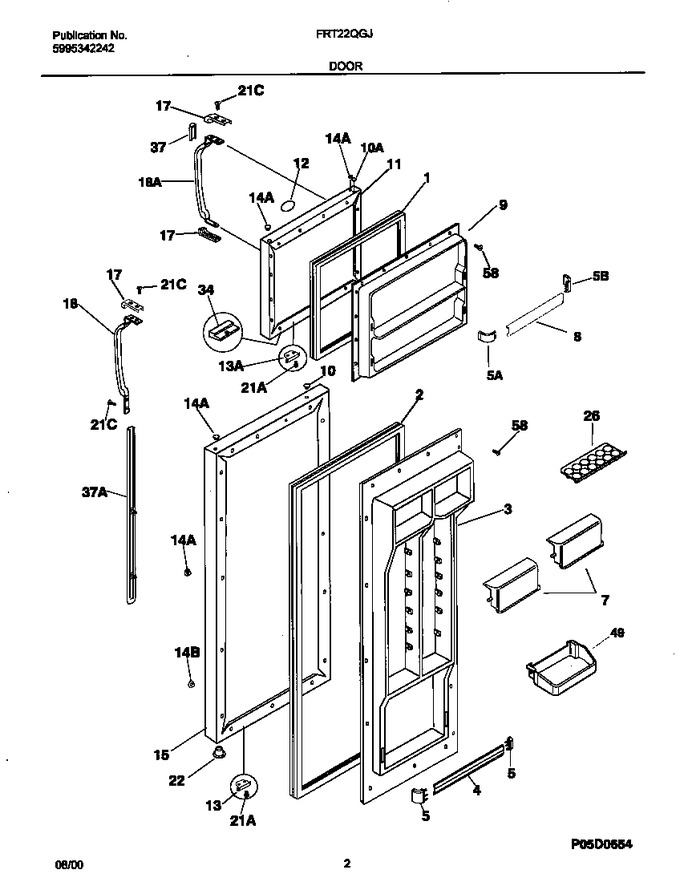

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608915		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730614		Gasket-refr Door, White, Magnetic				$ 201.67
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door   (Replaces: 218763602)				$ 54.58
5	218809701		Support-door Rack, Lh		Appelez-nous	-
5	218809801		Support-door Rack, Rh		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	5303304569		Door-dairy,12.96`` Wide ,clear ,no Graphics		Appelez-nous	-
8	215516220		Rack-door   (Replaces: 218763603)				$ 54.58
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
10	218696502		Plug-button, Almond, Lg Closer Hole		Appelez-nous	-
11	5303917992		Panel-frzr Door,almond ,foam Insulation		Appelez-nous	-
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
14	215352211		Plug-button,almond ,refr Door Front ,handle Mtg Hole		Appelez-nous	-
14	218696602		Plug-button, Almond, Sm Closer Hole		Appelez-nous	-
15	5303917984		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	218696404		Handle End, Almond		Appelez-nous	-
18	215981319		Handle-door, Almond, Frzr, Soft Grip		Appelez-nous	-
18	215983219		Handle-door, Almond, Refr, Soft Grip		Appelez-nous	-
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
34	218783201		Bumper-light Switch, White		Appelez-nous	-
37	218549841		Trim-handle,almond ,upper ,w/dec Gold Band		Appelez-nous	-
37	215867097		Trim-handle, Almond, Lower, W/gold Band, And Locks		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*33921	215008605		Label-nameplate,almond		Appelez-nous	-
*33923	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*33924	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676003		Band-decorative, Gold				$ 47.11
37C	218906701		Lock-handle Trim,stick-on				$ 67.86
