SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


05 - Shelves And Supports


07 - System And Automatic Defrost Parts

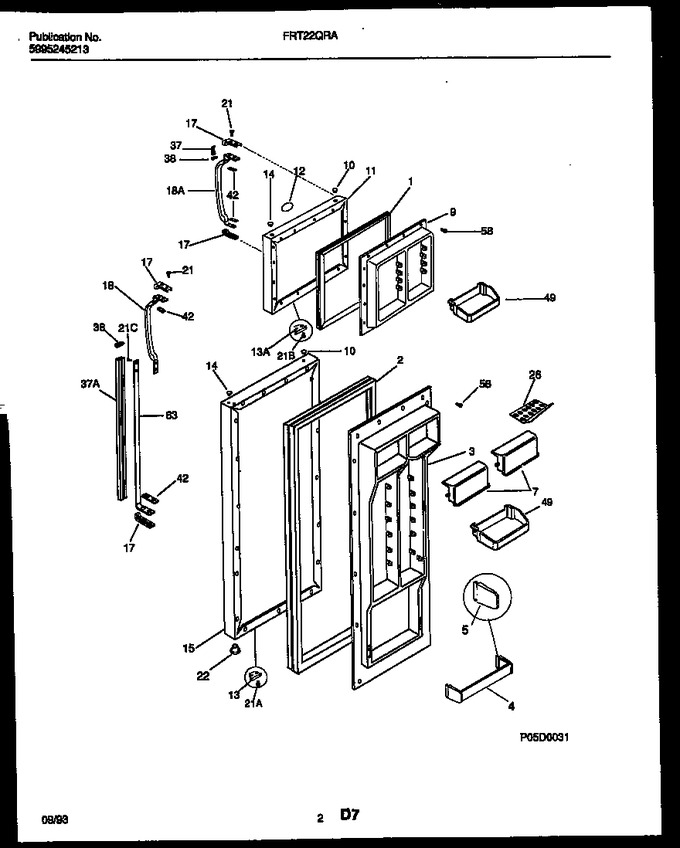

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776705		Gasket-frzr Door, Magnetic, Almond		Appelez-nous	-
2	215732407		Gasket-refr Door, Magnetic, Almond		Appelez-nous	-
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516221		Rack, Door		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
7	5303292375		Door-dairy, (2)		Appelez-nous	-
9	5303292371		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	215307611		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
12	215008602		Nameplate Assy, Almond		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
15	215352211		Plug-button, Almond, Refr Door Front (non-illustrated)		Appelez-nous	-
15	215307811		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	215188411		Handle End, Almond		Appelez-nous	-
18	215190611		Handle-door, Almond, Refr		Appelez-nous	-
21	215201400		Screw-handle Brkt Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg, Water Clear   (Replaces: 5303284457)				$ 13.46
37	215126807		Trim-handle, 1.27``, Almond, Upper		Appelez-nous	-
38	215117301		Band-decorative,handle		Appelez-nous	-
42	215209000		Shim-handle		Appelez-nous	-
49	215441502		Bin-door, Gallon   (Replaces: 215441501)				$ 176.87
58	5308002748		Screw		Appelez-nous	-
63	215209500		Rail-handle Trim Mtg		Appelez-nous	-
*86732	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
18A	215190511		Handle-door, Almond, Frzr		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
21C	215732700		Screw, Pan Head, 10-12 X 1/2		Appelez-nous	-
37A	215126806		Trim-handle, 23.97``, Almond, Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
