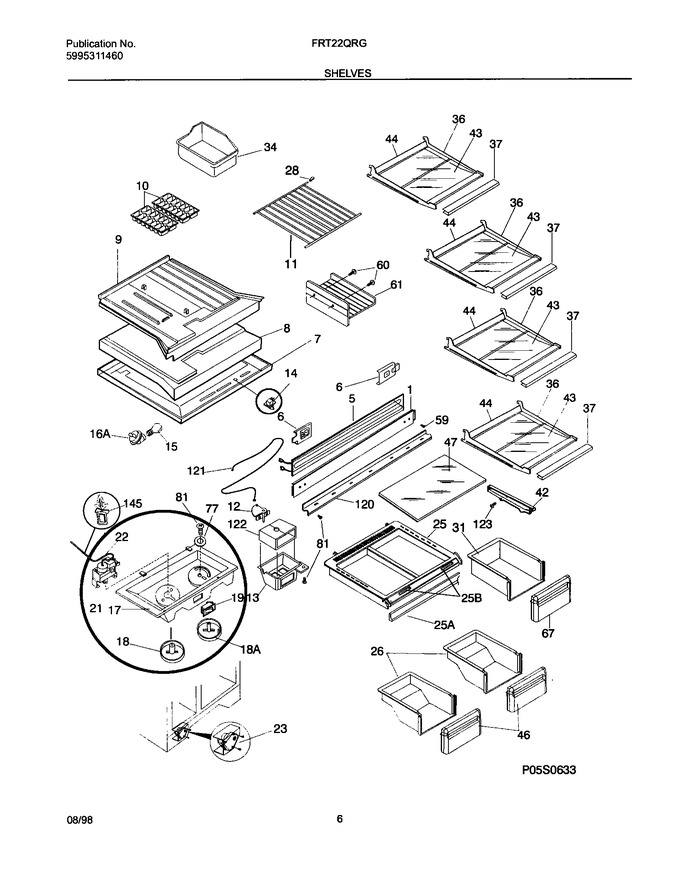

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215002201		Mullion, White		Appelez-nous	-
5	218752300		Heater-mullion				$ 100.70
6	218845600		Tapping Plate,mullion Mtg ,(2)		Appelez-nous	-
7	218646702		Top Panel-refr		Appelez-nous	-
8	215062700		Divider,styrofoam		Appelez-nous	-
9	215058300		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5303297948		Shelf-freezer,flat,full-width,wire		Appelez-nous	-
12	218634902		Deflector-air,``paddle``				$ 48.01
13	218629900		Cover-air Deflector				$ 23.96
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17	215932905		Control Box		Appelez-nous	-
18	5303310731		Knob-temp Control, Refr		Appelez-nous	-
18	5303310732		Knob-temp Control, (damper)		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304403880		Control-temperature		Appelez-nous	-
22	218660701		Tube, Insulator, Plastic, On Temp Sensor		Appelez-nous	-
23	215846602		Timer-defrost, 10 Hr, 115v   (Replaces: 5303321915)			Immediately	$ 28.20
25	215216646		Cover-crisper Pan,with Beam ,trim,humid Cont,less Insert		Appelez-nous	-
25	5303308340		Control-humidity		Appelez-nous	-
25	5303308349		Trim-crisper Cover		Appelez-nous	-
26	5303292386		Pan-crisper, (2)				$ 236.83
28	215341200		End Cap-shelf, Protector				$ 2.54
31	5303292388		Pan-meat		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
36	215919141		Frame-half Shelf,cantilever		Appelez-nous	-
37	215919412		Trim-half Shelf,front,(2)		Appelez-nous	-
42	215002301		Hanger-pan / Tray, Lh				$ 65.82
43	218390599		Glass-half Shelf		Appelez-nous	-
44	215919812		Trim-half Shelf, Rear,(2)				$ 29.03
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	5304403882		Front-crisper Pan,(2)		Appelez-nous	-
47	218390591		Insert-pan Cover, Glass				$ 132.07
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
61	215781501		Shelf-ice Tray, Wire				$ 136.19
67	5304403883		Front-deli Tray		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
120	218019201		Seal-refr Top		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X .438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*82813	5303001380		Screw		Appelez-nous	-
*82814	215934600		Spacer-frzr Shelf		Appelez-nous	-
*82815	218159700		Spacer-shelf		Appelez-nous	-
*82816	215363801		Spacer-air Deflectr		Appelez-nous	-
*82817	215363901		Washer-air Deflectr		Appelez-nous	-
*82818	215935700		Nut-anchor		Appelez-nous	-
*82819	5308016567		Nut-anchor		Appelez-nous	-
*82820	5303001260		Screw				$ 6.73
*82821	215277000		Cover-defrost Timer, Top		Appelez-nous	-
*82822	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*82823	5303289058		Shield-defrost Timr,btm		Appelez-nous	-
*82824	215002401		Hanger-pan/tray, Rh				$ 85.84
*82825	215339100		Seal-divider Throat		Appelez-nous	-
*82826	215359900		Seal-divider Front		Appelez-nous	-
*82827	215848000		Spacer-air Channel		Appelez-nous	-
121A	215364001		Cable-damper Contrl				$ 82.01
121B	215209400		Nut,push-on ,damper Cable		Appelez-nous	-
122A	218561201		Block-air Deflector, Rh		Appelez-nous	-
122B	218561203		Block-air Deflector, Lh		Appelez-nous	-
