SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


06 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776725		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	215732427		Gasket-refr Door, Black, Magnetic		Appelez-nous	-
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door   (Replaces: 215516257)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
7	5303308347		Door-dairy		Appelez-nous	-
9	5303292371		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303299154		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
11	5303917562		Panel-frzr Door, Black, W/foam Insulatn		Appelez-nous	-
12	218364006		Frame-nameplate, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352118		Plug-button, Black, Handle Mtg		Appelez-nous	-
15	215307818		Panel-refr Door, Black, W/foam Insulatn		Appelez-nous	-
17	218025605		Handle End, Metallic Gray		Appelez-nous	-
18	215983220		Handle-door, Metallic Gray, Refr, Soft Grip		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	215423600		Bumper-light Switch		Appelez-nous	-
37	218549832		Trim-handle, Metallic Gray, Upper, W/dec Gold Band		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	5308002748		Screw		Appelez-nous	-
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*94880	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
12A	215008606		Label-nameplate, Black (not Illustrated)		Appelez-nous	-
12B	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustrated)		Appelez-nous	-
13A	215030018		Door Stop, Black, Frzr				$ 26.78
14A	215352218		Plug-button, Black, Refr Door Front		Appelez-nous	-
18A	215981320		Handle-door, Metallic Gray, Frzr, Soft Grip		Appelez-nous	-
21A	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
37A	215867051		Trim-handle, Metallic Gray, Lower, W/gold Band, & Stick-on Lock		Appelez-nous	-
37B	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-

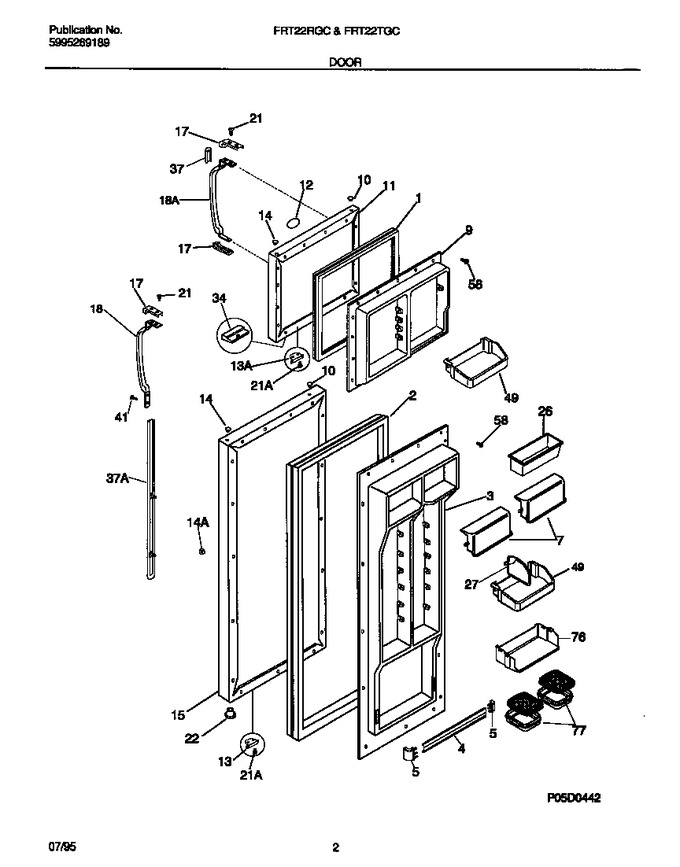

    View Diagram in Separate Window       Print Part List
