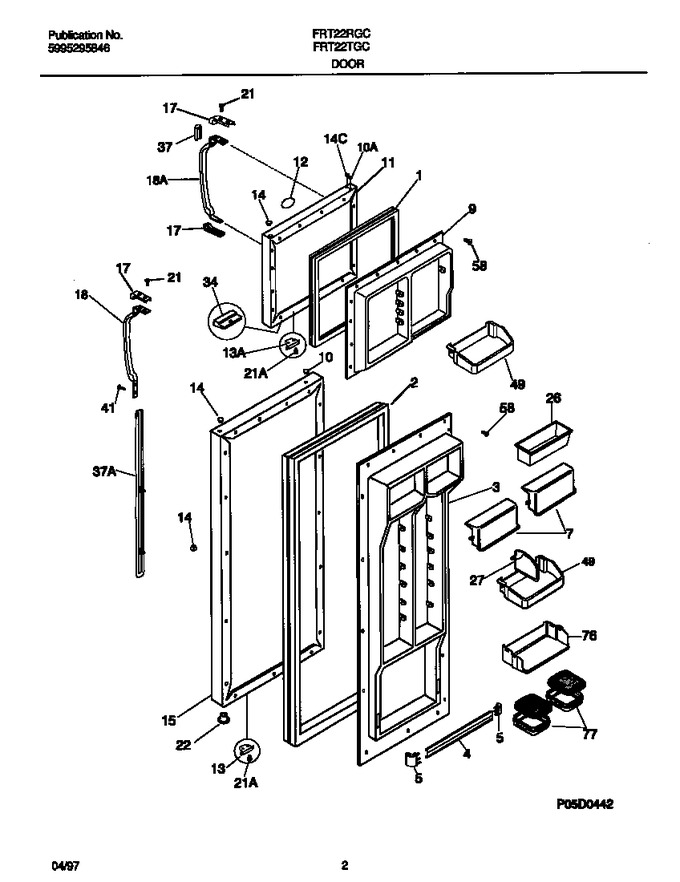

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608925		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	218730616		Gasket-refr Door, Black, Magnetic				$ 215.09
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door   (Replaces: 218763602)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	5303308347		Door-dairy		Appelez-nous	-
9	5303292371		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303299154		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
10	218696503		Plug-button, Black, Lg Closer Hole		Appelez-nous	-
11	5303917858		Panel-frzr Door, Black, W/foam Insulatn		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
12	215008606		Label-nameplate, Black (not Illustrated)		Appelez-nous	-
12	218364006		Frame-nameplate, Black		Appelez-nous	-
13	215030018		Door Stop, Black, Frzr				$ 26.78
13	5303289522		Door Stop				$ 40.17
14	218696603		Plug-button, Black, Sm Closer Hole		Appelez-nous	-
14	215352218		Plug-button, Black, Handle Mtg, Refr Door Front		Appelez-nous	-
15	215307818		Panel-refr Door, Black, W/foam Insulatn		Appelez-nous	-
17	218696405		Handle End, Metallic Gray		Appelez-nous	-
18	215981320		Handle-door, Metallic Gray, Frzr, Soft Grip		Appelez-nous	-
18	215983220		Handle-door, Metallic Gray, Refr, Soft Grip		Appelez-nous	-
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4, Bumper M				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	215423602		Bumper-light Switch, Black		Appelez-nous	-
37	218549832		Trim-handle, Metallic Gray, Upper, W/dec Gold Band		Appelez-nous	-
37	215867081		Trim-handle, Metallic Gray, Lower, W/dec Gold Band, & St		Appelez-nous	-
41	218843801		Screw   (Replaces: 5303001001)				$ 14.41
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*95880	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
37B	215782300		Lock-handle Trim, Snap-in (not Illustrated)				$ 34.49
37C	218676003		Band-decorative, Gold (not Illustrated)				$ 47.11

    View Diagram in Separate Window       Print Part List
