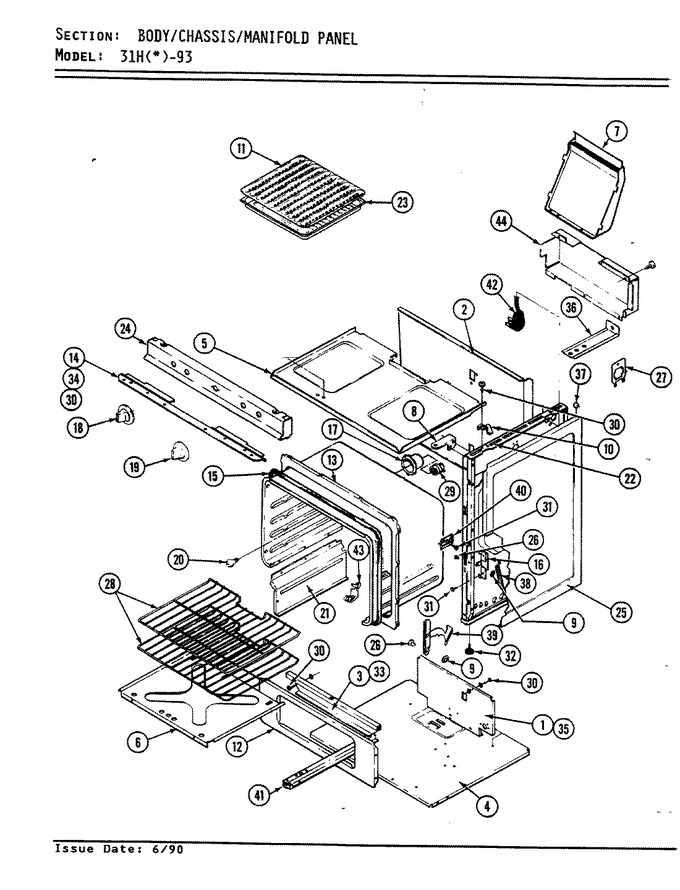

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F123-45 | Back, Broil | 01 |
|
- | ||||
| 1 | 4005F279-45 | Cover, Bkgd Broil Section | 01 |
|
- | ||||
| 2 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 2 | 4002F144-80 | Back, Main | 01 |
|
- | ||||
| 3 | 3601W124-16 | Baffle, Ovn Front | 01 |
|
- | ||||
| 4 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 4 | 4011F161-80 | Bottom, Broiler | 01 |
|
- | ||||
| 5 | 4011F095-80 | Bottom, Burner Box | 01 |
|
- | ||||
| 6 | 2205F012-23K | Bottom, Oven | 01 |
|
- | ||||
| 7 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 7 | 4006W026-80 | Box, Flue | 01 |
|
- | ||||
| 8 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 8 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 9 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 10 | 7112P073-60 | Clip, Top Retainer | 01 |
|
- | ||||
| 11 | 3413F002-23 | Insert, Broil Pan | 01 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 12 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 12 | 2201F034-23 | Front, Oven Lower | 01 |
|
- | ||||
| 13 | 2201F060-23 | Front, Oven Upper | 01 |
|
- | ||||
| 13 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 14 | 4012F021-80 | Front, Burner Box | 01 |
|
- | ||||
| 15 | 7212P001-60 | Seal | 01 |
|
- | ||||
| 16 | 8016P008-60 | Glide, Oven Door Hinge | 01 |
|
- | ||||
| 16 | 3418A029-34 | Hinge Assy. (lt) | 01 |
|
$ 48.47 | ||||
| 16 | 3418A030-34 | Hinge Assy. (rt) | 01 |
|
- | ||||
| 17 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 17 | 4001F016-23 | Housing, Lamp | 01 |
|
- | ||||
| 18 | WP7731P018-60 | Knob, Thermostat (Replaces: 7731P018-60) | 01 |
|
$ 25.14 | ||||
| 19 | WP7711P135-60 | Knob, Valve (blk) (Replaces: 7733P027-60) | 01 |
|
$ 25.06 | ||||
| 20 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 21 | 4009F045-45 | Lining, Broiler Side | 01 |
|
- | ||||
| 22 | 8008P012-60 | Grommet, Nylon | 01 |
|
- | ||||
| 22 | 4009W071-80 | Lining, Inner Side | 01 |
|
- | ||||
| 22 | 4009W077-80 | Lining, Assy Inner Side | 59 |
|
- | ||||
| 22 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 22 | 7103P045-60 | Nut, Nylon | 01 |
|
- | ||||
| 23 | 4396923 | Pan, Broil (Replaces: 3401F004-23) | 01 |
|
Immediately | $ 52.04 | |||
| 24 | WP25-7220 | Clip, Top Retainer (Replaces: 7112P042-60) | 01 |
|
$ 10.77 | ||||
| 24 | WP4159193 | Screw (Replaces: 7118P004-60) | 01 |
|
$ 4.29 | ||||
| 24 | 7712A058-60 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 25 | 2618F073-74 | Panel, Side (alm) | 01 |
|
- | ||||
| 26 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 27 | 4005F277-45 | Cover, Disconnect | 01 |
|
- | ||||
| 27 | 3801F021-45 | Bracket | 01 |
|
- | ||||
| 28 | 7801P030-60 | Rack, Oven | 01 |
|
$ 57.14 | ||||
| 29 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 30 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 31 | WP4159193 | Screw (Replaces: 7101P112-60) | 01 |
|
$ 4.29 | ||||
| 32 | Y7101P25460 | Leg, Leveling | 01 |
|
- | ||||
| 33 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 34 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 01 |
|
$ 15.94 | ||||
| 35 | WP3387230 | Screw, Clamp (Replaces: 7101P080-60) | 01 |
|
Immediately | $ 7.69 | |||
| 36 | WP3801F656-51 | Bracket, Anti-tip (Replaces: 3801F218-51) | 59 |
|
Immediately | $ 4.69 | |||
| 36 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 36 | 3801F198-51 | Bracket, Tie-down | 01 |
|
- | ||||
| 36 | WP7101P485-60 | Screw, Bracket (Replaces: 7101P289-60) | 59 |
|
$ 26.33 | ||||
| 37 | 8010P048-60 | Spacer, Main Top | 01 |
|
- | ||||
| 38 | WP7803P058-60 | Spring, Oven Door (Replaces: 7803P058-60) | 01 |
|
$ 16.55 | ||||
| 39 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 40 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 41 | 3404A013-51 | Track, Broiler Dwr Right | 01 |
|
- | ||||
| 41 | WP4159193 | Screw (Replaces: 7101P115-60) | 01 |
|
$ 4.29 | ||||
| 41 | 3404A014-51 | Track, Broiler Dwr Left | 01 |
|
- | ||||
| 41 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 42 | 8007P003-60 | Bushing, Snap | 01 |
|
- | ||||
| 42 | 7402P024-60 | Cord, Power | 01 |
|
- | ||||
| 43 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 44 | 4005F167-80 | Cover, Module | 01 |
|
- |
