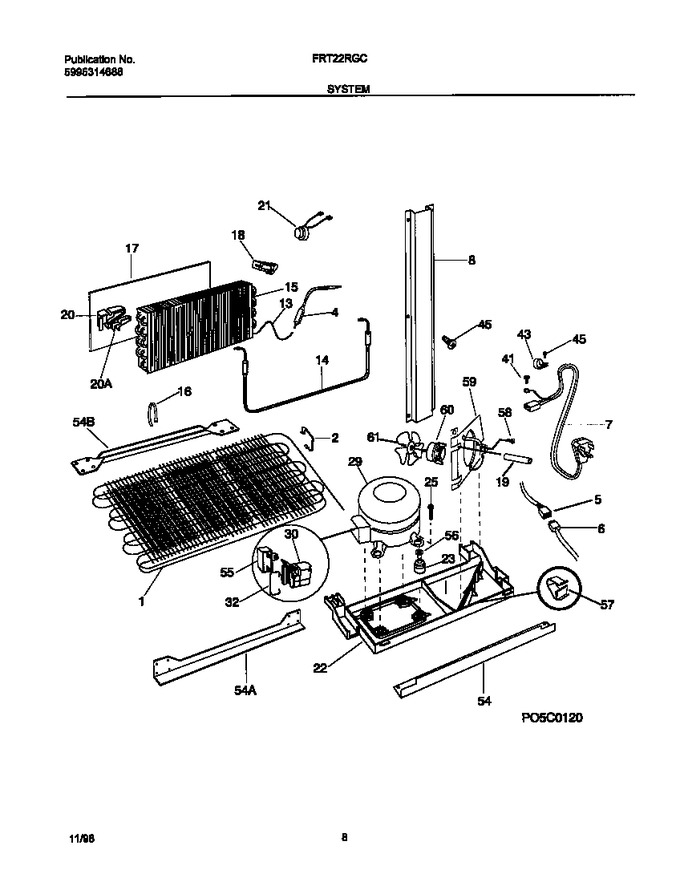

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218787700 | Condenser |
|
- | |||||
| 2 | 5303289029 | Clip-cond Mtg. (4) |
|
- | |||||
| 4 | 5303305677 | Drier-filter (Replaces: 218541000) |
|
Immediately | $ 31.67 | ||||
| 5 | 218671800 | Harness-wiring, Main |
|
- | |||||
| 6 | 215633901 | Harness-wiring, Machine Compt |
|
- | |||||
| 7 | 215459201 | Cord-electric Power |
|
$ 66.47 | |||||
| 8 | 218803400 | Cover-wiring |
|
$ 79.11 | |||||
| 13 | 218168602 | Heat Exchanger, Suction Line |
|
$ 181.07 | |||||
| 14 | 5317842502 | Heater-defrost |
|
$ 133.96 | |||||
| 15 | 5303321220 | Evaporator |
|
$ 313.48 | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum |
|
Immediately | $ 59.82 | ||||
| 17 | 5316651102 | Insulator-evap, Plastic |
|
$ 53.04 | |||||
| 18 | 5303292407 | Insulation Block, Rh |
|
- | |||||
| 19 | 218631200 | Tube, Rubber |
|
- | |||||
| 20 | 5303292406 | Insulation Block,lh |
|
- | |||||
| 20 | 5303292405 | Insulation Plug,lh |
|
- | |||||
| 21 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 22 | 218811100 | Base-compressor Mtg, (drain Pan) |
|
- | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 25 | 218773500 | Screw-compressor Mtg,hex Washer Head , |
|
- | |||||
| 29 | 5304478809 | Compressor,r134a ,w/o Electricals (Replaces: 218374515) |
|
Immediately | $ 584.96 | ||||
| 30 | 218721101 | Starter/overload Assy |
|
$ 102.87 | |||||
| 32 | 218740800 | Wire-bale |
|
$ 65.21 | |||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 45 | 218769200 | Screw,hx Wshr Hd Spec ,6-32 X .5 |
|
- | |||||
| 54 | 5303289027 | Rail-cabinet Base,rear |
|
- | |||||
| 54 | 5303289292 | Rail-cabinet Base, Front |
|
- | |||||
| 54 | 5303289311 | Rail-compr Support |
|
- | |||||
| 55 | 5304464438 | Capacitor-run (Replaces: 216236200) |
|
Immediately | $ 35.38 | ||||
| 56 | 218769300 | Insert-compressor Mtg |
|
- | |||||
| 57 | 218247300 | Clip-wiring Harness |
|
- | |||||
| 58 | 215004600 | Screw-cond Fan Mtr,hx Serr Wshr Hd , |
|
- | |||||
| 59 | 5303289031 | Shroud-cond Fan Mtr |
|
- | |||||
| 60 | 215501901 | Motor-condenser Fan |
|
$ 202.70 | |||||
| 61 | 5303289032 | Blade-cond Fan |
|
- | |||||
| *63963 | 5303289026 | Spacer Tube |
|
- | |||||
| *63964 | 218463600 | Harness-wiring,crisper Lights |
|
- | |||||
| *63965 | 218754500 | Screw,hex Hd Ser Wshr ,8-18 X 3/8 |
|
- | |||||
| *63966 | 215174700 | Clamp, Service Cord, Strain Relief |
|
- | |||||
| *63967 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| *63968 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| *63969 | 5300141713 | Screw,hex Wshr Hd ,8-32 X .625 ,spec |
|
- | |||||
| *63970 | 5304455852 | Screw,hex Wshr Hd,8-15(a) X 1 (Replaces: 5303207328) |
|
$ 12.76 | |||||
| *63971 | 215226700 | Seal-foam,cond Fan Shroud |
|
- | |||||
| *63972 | 215004700 | Nut,speed |
|
$ 3.78 | |||||
| *63973 | 215004800 | Grommet-silencer |
|
$ 52.50 | |||||
| *63974 | 5303917214 | Hot Tube Repair Kit, Service |
|
$ 393.07 |
