SELECT A DIAGRAM
New Model Search:

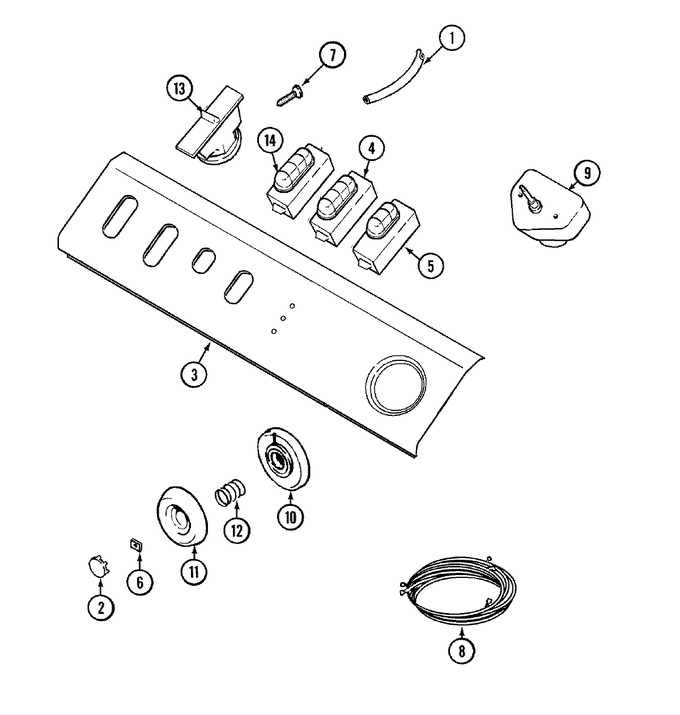

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001619 | Tube, Water Level Switch (Replaces: 22001036) | 10 |
|
$ 75.73 | ||||
| 2 | 33002347 | Timer Knob Insert/cap | 10 |
|
$ 22.30 | ||||
| 3 | 22002894 | Panel, Control (bsq) | 10 |
|
- | ||||
| 4 | 22002698 | Button, Switch (bsq-mdl) | 10 |
|
- | ||||
| 4 | 22002697 | Button, Switch (bsq-end) | 10 |
|
- | ||||
| 4 | 22002585 | Switch, Push Button (bsq) | 10 |
|
- | ||||
| 5 | 22002698 | Button, Switch (bsq-mdl) | 10 |
|
- | ||||
| 5 | 22002895 | Switch, Speed Control (bsq) | 10 |
|
- | ||||
| 5 | 22002697 | Button, Switch (bsq-end) | 10 |
|
- | ||||
| 6 | 211605 | Retainer, Timer Knob | 10 |
|
- | ||||
| 7 | 22001662 | Screw | 10 |
|
- | ||||
| 8 | WP22001948 | Lens, Indicator Light (Replaces: 22001948) | 10 |
|
$ 11.42 | ||||
| 8 | 22002210 | Harness, Wire | 10 |
|
- | ||||
| 8 | 903115 | Lock Light | 10 |
|
$ 5.70 | ||||
| 9 | WP22004262 | Timer (Replaces: 22002189) | 10 |
|
$ 411.70 | ||||
| 9 | WP3400094 | Screw, Timer (Replaces: 22001661) | 10 |
|
$ 7.14 | ||||
| 10 | 22002598 | Bezel, Timer Dial (bsq) | 10 |
|
- | ||||
| 11 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
Immediately | $ 26.38 | |||
| 12 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 13 | 22002588 | Switch, Pressure (bsq) | 10 |
|
- | ||||
| 14 | 22002697 | Button, Switch (bsq-end) | 10 |
|
- | ||||
| 14 | 22002593 | Switch, Push Button (bsq) | 10 |
|
- | ||||
| 14 | 22002698 | Button, Switch (bsq-mdl) | 10 |
|
- | ||||
| 15 | 22002421 | Manual, Use & Care | 10 |
|
- | ||||
| 15 | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- |
