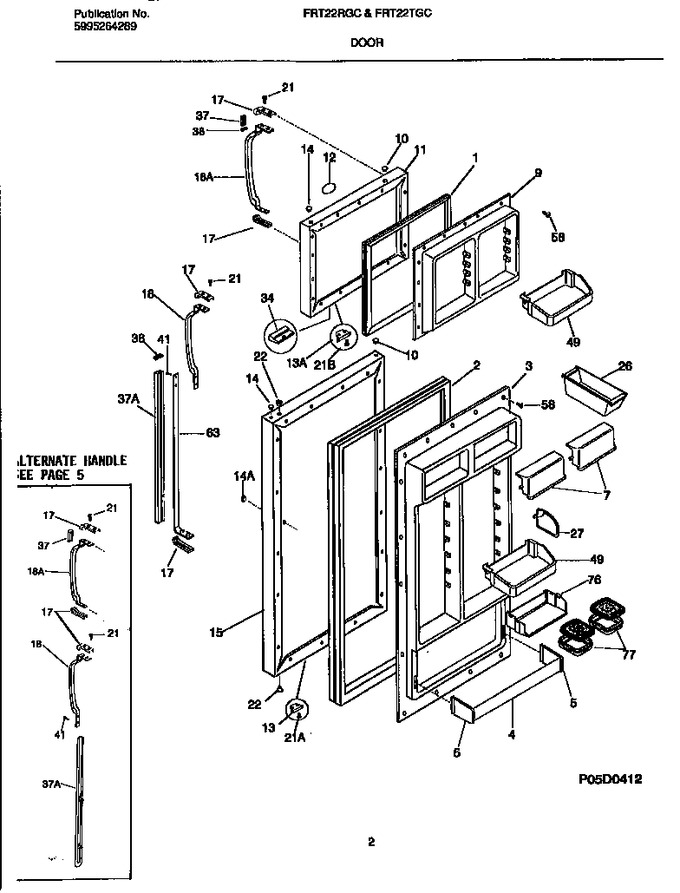

1	215776705		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732407		Gasket, Refr Door, Almond, Magnetic		Appelez-nous	-
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door   (Replaces: 215516257)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
7	5303308347		Door-dairy		Appelez-nous	-
9	5303292371		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303292414		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	215307611		Panel-frzr Door, Almond, W/foam Insulatn		Appelez-nous	-
12	218364005		Frame-nameplate, Almond		Appelez-nous	-
12	215008605		Label-nameplate, Almond (not Illustrated)		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Lg, Foam, Double-faced (not Illustra		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
14	215352111		Plug-button, Almond, Handle Mtg		Appelez-nous	-
15	215307811		Panel-refr Door, Almond, W/foam Insulatn		Appelez-nous	-
17	218025604		Handle End, Almond		Appelez-nous	-
18	215983219		Handle-door, Almond, Refr, Soft Grip		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``				$ 88.03
34	215423600		Bumper-light Switch		Appelez-nous	-
37	215117418		Trim-handle, 1.27``, Almond, Upper		Appelez-nous	-
38	215117302		Band-decorative, Light Gold, Handle		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
49	218439608		Bin-door, With Trim		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215209500		Rail-handle Trim Mtg		Appelez-nous	-
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*18280	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	215030011		Door Stop, Almond, Frzr		Appelez-nous	-
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
18A	215981319		Handle-door, Almond, Frzr, Soft Grip		Appelez-nous	-
21A	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21B	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
37A	215117417		Trim-handle, 23.97``, Almond, Lower		Appelez-nous	-
