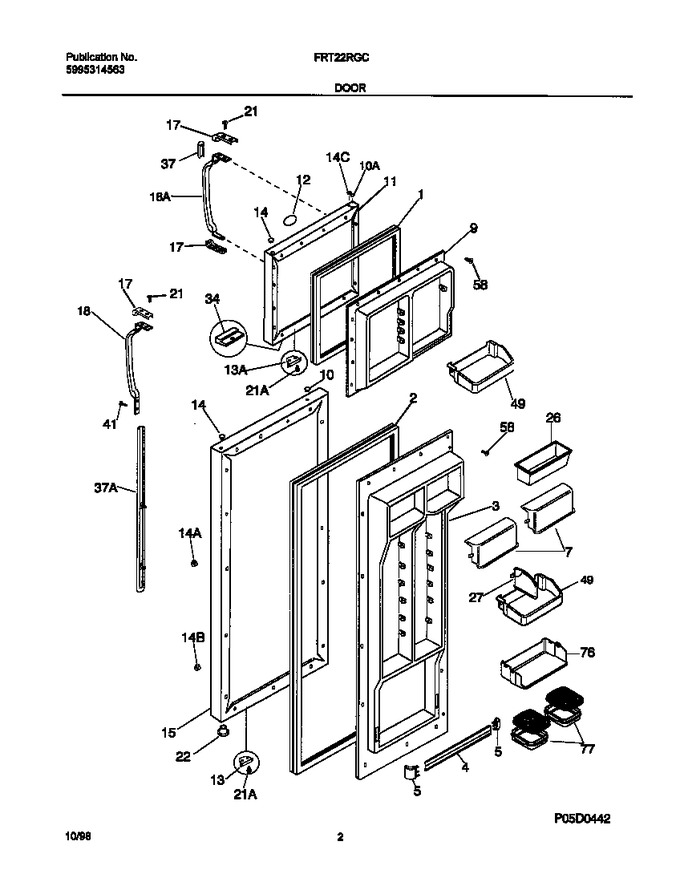

02 - Doors


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608915		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730614		Gasket-refr Door, White, Magnetic				$ 201.67
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door   (Replaces: 218763602)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	5303308347		Door-dairy		Appelez-nous	-
9	5303292371		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
10	218696501		Plug-button, White, Lg Closer Hole				$ 4.07
11	5303917991		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
13	215030001		Door Stop, White, Frzr				$ 29.61
13	5303289522		Door Stop				$ 40.17
14	240494001		Plug-button, White, Handle Mtg, Refr Door Front   (Replaces: 215352201)			Immediately	$ 18.20
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
14	218696601		Plug-button, White, Sm Closer Hole				$ 1.75
15	5303917983		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	218696401		Handle End, White				$ 47.04
18	215983201		Handle-door, White, Refr, Soft Grip		Appelez-nous	-
18	215981301		Handle-door, White, Frzr, Soft Grip		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	218783201		Bumper-light Switch, White		Appelez-nous	-
37	215867096		Trim-handle, White, Lower, W/gold Band, And Locks				$ 67.25
37	218549840		Trim-handle,white ,upper ,w/dec Gold Band				$ 55.34
41	5308000039		Screw		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218781101		Screw, Pan Head, 8-18 X 5/8   (Replaces: 218781100)				$ 15.60
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*83080	215008604		Label-nameplate,white		Appelez-nous	-
*83083	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*83084	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
14A	218074001		Plug-button, White, Refr Door Front, Lower				$ 13.76
14B	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
14C	218074003		Plug-button, Black, Refr Door Front, Lower				$ 1.78
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37C	218676003		Band-decorative, Gold				$ 47.11
