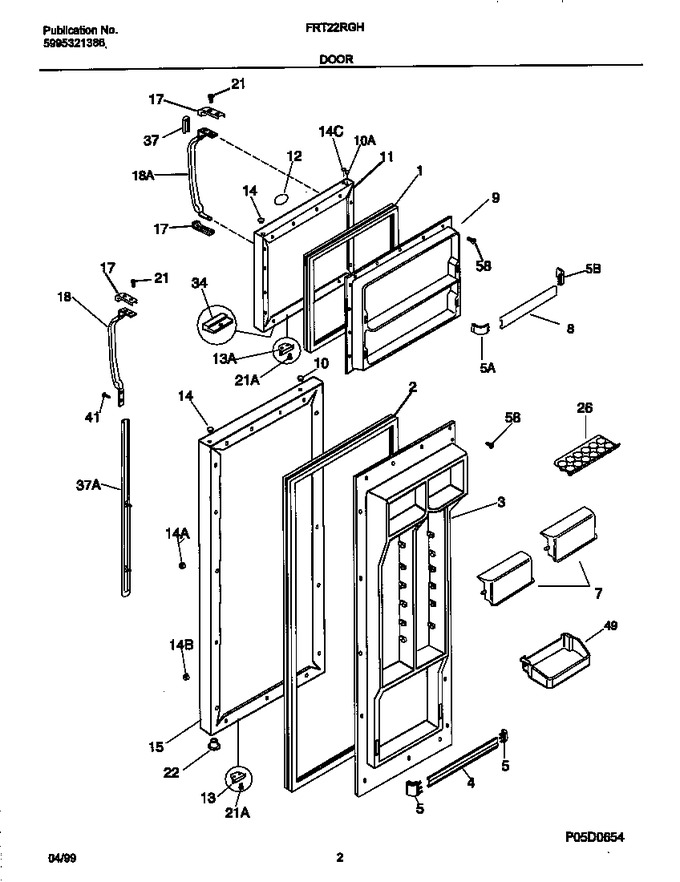

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608925		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	218730616		Gasket-refr Door, Black, Magnetic				$ 215.09
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door   (Replaces: 218763602)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
5	218809701		Support-door Rack, Lh		Appelez-nous	-
5	218809801		Support-door Rack, Rh		Appelez-nous	-
7	5303308347		Door-dairy,12.96`` Wide		Appelez-nous	-
8	215516220		Rack-door   (Replaces: 218763603)				$ 54.58
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	218696503		Plug-button, Black, Lg Closer Hole		Appelez-nous	-
10	5303299154		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
11	5303917993		Panel-frzr Door,black ,foam Insulation		Appelez-nous	-
12	218364006		Frame-nameplate, Black		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030018		Door Stop, Black, Frzr				$ 26.78
14	218696603		Plug-button, Black, Sm Closer Hole		Appelez-nous	-
14	215352218		Plug-button,black ,refr Door Front ,handle Mtg Hole		Appelez-nous	-
15	5303918021		Panel-refr Door, Black, W/foam Insulatn		Appelez-nous	-
17	218696406		Handle End,metallic Gray		Appelez-nous	-
18	215981320		Handle-door, Metallic Gray, Frzr, Soft Grip		Appelez-nous	-
18	215983220		Handle-door, Metallic Gray, Refr, Soft Grip		Appelez-nous	-
21	218556800		Screw-handle Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
34	218783202		Bumper-light Switch, Black		Appelez-nous	-
37	218549842		Trim-handle,metallic Gray ,upper ,w/dec Gold Band		Appelez-nous	-
37	218811612		Trim-handle,metallic Gray ,refr Door ,w/dec Gold Band,&		Appelez-nous	-
41	218886801		Screw-8-32 X 1/2 No. 10 Truss Ca,8 32 X 1/2 10		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*61362	215008606		Label-nameplate,black		Appelez-nous	-
*61363	5315340712		Tape,adhesive ,12`` Long ,foam ,double-faced		Appelez-nous	-
*61364	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
14A	218074001		Plug-button, White, Refr Door Front, Lower				$ 13.76
14B	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
14C	218074003		Plug-button, Black, Refr Door Front, Lower				$ 1.78
14D	218074004		Plug-button,bisque ,refr Door Front ,lower		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676003		Band-decorative, Gold				$ 47.11
37C	218906701		Lock-handle Trim,stick-on				$ 67.86
