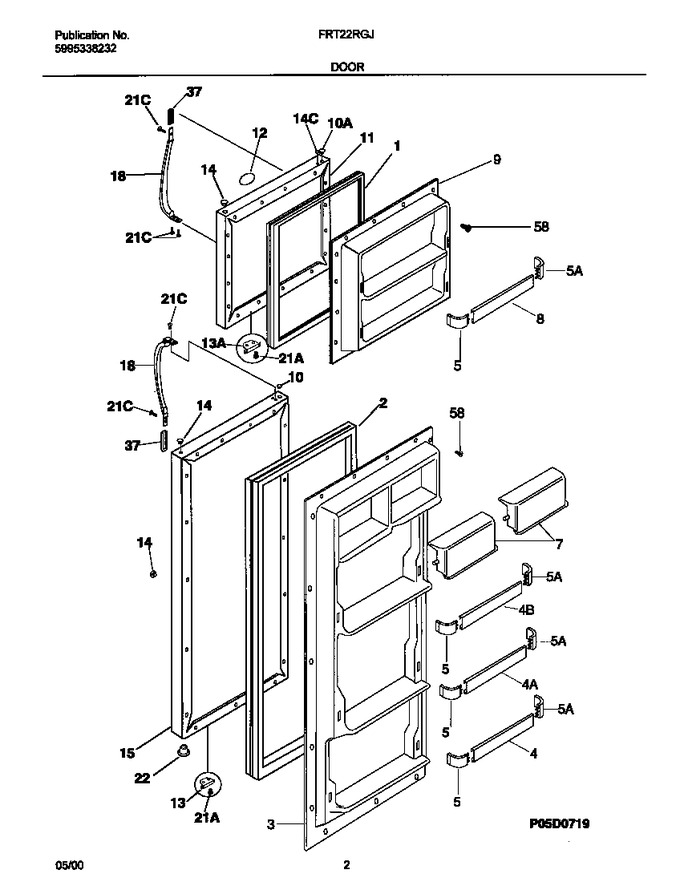

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608925		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	218730616		Gasket-refr Door, Black, Magnetic				$ 215.09
3	218979001		Door-refr Interior,panel				$ 421.76
4	218763649		Rack-door				$ 101.64
4	218763648		Rack-door				$ 109.44
4	218763647		Rack-door		Appelez-nous	-
5	218809801		Support-door Rack, Rh		Appelez-nous	-
5	218809701		Support-door Rack, Lh		Appelez-nous	-
7	5303304569		Door-dairy,12.96`` Wide ,clear ,no Graphics		Appelez-nous	-
8	218763641		Rack-door				$ 32.08
9	215278301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303299154		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
10	218696503		Plug-button, Black, Lg Closer Hole		Appelez-nous	-
11	5303918080		Panel-frzr Door,black ,w/foam Insulatn		Appelez-nous	-
12	218156540		Nameplate Assy,black ,with Magnet		Appelez-nous	-
13	215030018		Door Stop, Black, Frzr				$ 26.78
13	5303289522		Door Stop				$ 40.17
14	218696603		Plug-button, Black, Sm Closer Hole		Appelez-nous	-
14	218915703		Plug-button,black		Appelez-nous	-
15	5303918081		Panel-refr Door,black ,w/foam Insulatn		Appelez-nous	-
18	218668003		Handle-door, Black				$ 69.46
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	5303289320		Bearing-hinge				$ 19.69
37	218811638		Trim-handle,1.74`` ,black ,upper		Appelez-nous	-
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*75200	215008615		Label-nameplate,black		Appelez-nous	-
*75204	218364003		Frame-nameplate, Black		Appelez-nous	-
*75208	215518000		Magnet-nameplate		Appelez-nous	-
*75209	218906701		Lock-handle Trim,stick-on				$ 67.86
*75210	218676003		Band-decorative, Gold				$ 47.11
*75211	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
