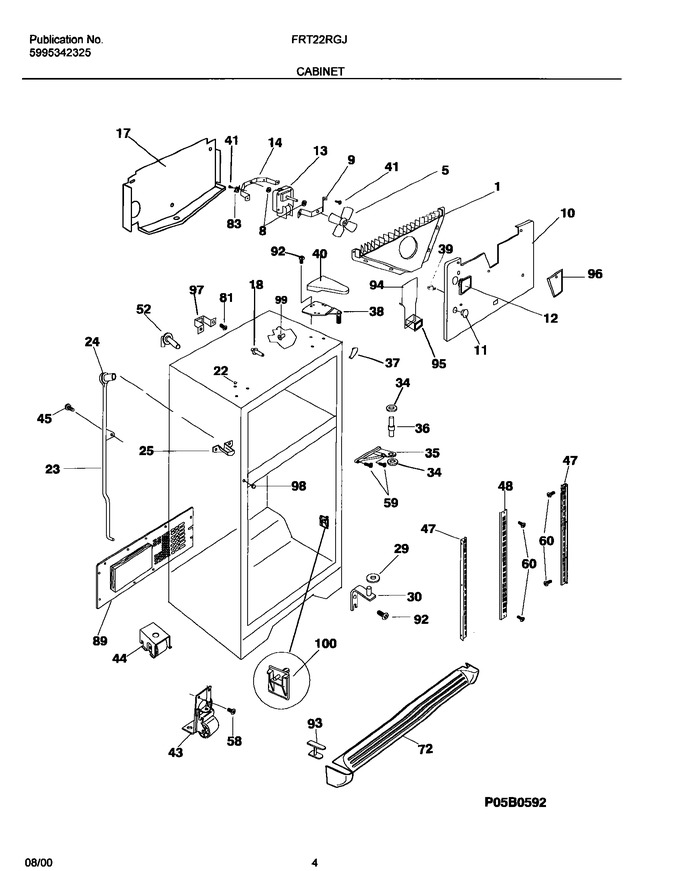

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215937600		Shroud-evap Fan Mtg				$ 65.94
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
10	5304416552		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
12	5303292393		Plug-decorative,icemaker Holes		Appelez-nous	-
13	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
14	240438003		Bracket-motor Mtg,rear   (Replaces: 5303292397)				$ 17.44
17	5304415955		Trough-drain		Appelez-nous	-
18	218980401		Support-evap Cover,(2)		Appelez-nous	-
22	215774911		Plug-button, Almond, Upr Hinge Holes		Appelez-nous	-
23	215266301		Tube Drain, W/seal Ring				$ 72.14
24	5303207353		Seal Ring, Drain Tube				$ 6.81
25	5303292412		Spout-drain Tube				$ 13.81
29	218875801		Washer,nylon ,0.245 Id W/nibs				$ 9.40
29	215314301		Washer,.40 X .75 X .06 ,nylon				$ 3.94
30	218979701		Tapping Plate,lower Hinge		Appelez-nous	-
30	5303289060		Bracket-lower Hinge,rh/lh ,w/hinge Pin		Appelez-nous	-
30	218979601		Tapping Plate,lower Hinge		Appelez-nous	-
34	218737000		Washer-ctr Hinge Pin				$ 1.37
35	218220102		Bracket-ctr Hinge, Almond		Appelez-nous	-
36	218971101		Pin-center Hinge				$ 42.84
37	5303321082		Trim-cabinet Corner, Almond		Appelez-nous	-
38	218215251		Bracket-upper Hinge,with Closer ,almond				$ 92.09
39	215848000		Spacer-air Channel		Appelez-nous	-
40	5303318774		Cover-upper Hinge, Almond				$ 46.83
41	5308000039		Screw		Appelez-nous	-
43	218615300		Roller Assy, Front, (2)		Appelez-nous	-
43	5308017044		Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23) X 7/8				$ 6.34
44	218738300		Roller Assy, Rear, (2)				$ 51.98
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
47	218233300		Channel-shelf Mtg, Side				$ 86.05
48	5303292395		Channel-shelf Mtg,center				$ 157.34
52	215058000		Plug-wtr Inlet Tube				$ 2.73
52	215454600		Tube-water,ice Mold Fill ,elbow				$ 81.11
58	5308002748		Screw		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X .625 ,hinge/mullion,thread Forming   (Replaces: 218188000)				$ 8.34
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250   (Replaces: 218362500)				$ 12.05
72	218359608		Grille/kickplate, Almond		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
83	5308000107		Bracket-connector				$ 33.23
89	5303288947		Cover-machine Compt		Appelez-nous	-
92	241710601		Screw   (Replaces: 5303001479)				$ 13.46
93	218362602		Plug-grille, Almond		Appelez-nous	-
94	5303319993		Cover-air Duct		Appelez-nous	-
94	218044800		Seal-air Duct Cover		Appelez-nous	-
95	218663101		Gasket-air Duct Cvr		Appelez-nous	-
96	215775900		Cover Fan-access				$ 30.82
96	215775901		Cover-fan Access				$ 22.85
97	5303289299		Bracket-im Plug		Appelez-nous	-
98	215099711		Plug-button,almond		Appelez-nous	-
99	5303294246		Grommet-shelf Mtg,1.25`` Long		Appelez-nous	-
99	5303294247		Grommet-shelf Mtg,.69`` Long		Appelez-nous	-
100	5303288973		Support-pan Cover				$ 24.41
F13	5300158289		Motor-evap Fan   (Replaces: 218661700)			Immediately	$ 149.94
F5	5303292398		Fan Blade				$ 50.35
NI	5303305325		Touch-up Paint, Almond		Appelez-nous	-
NI	5308016571		Plug-button, Cabinet Liner				$ 4.79
