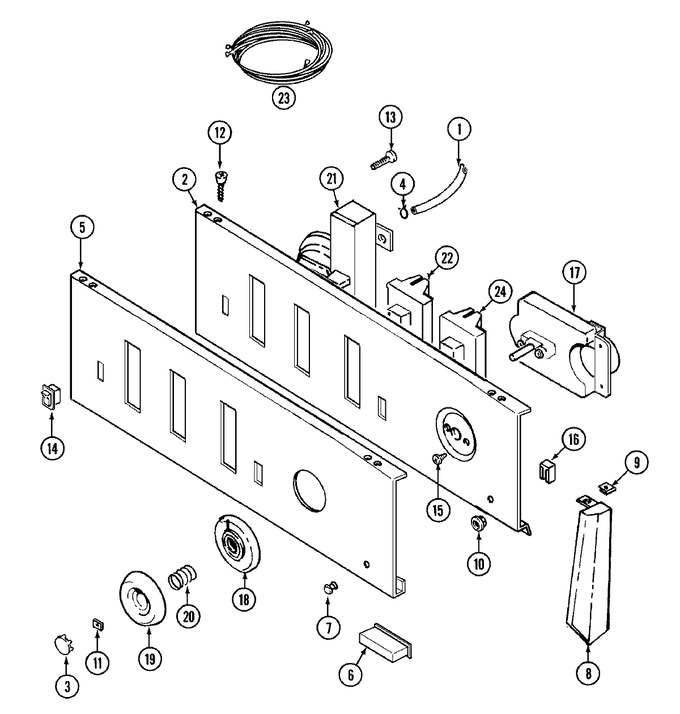

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22001619		Tube, Water Level Switch   (Replaces: 22001036)	A0			$ 75.73
2	22001133		Plate, Support (push Switch)	A0	Appelez-nous	-
3	216250		Cap, Timer Knob (wht)	A0	Appelez-nous	-
4	WP596669		Clamp,water Level Swtch Tube   (Replaces: 410296)	A0		Immediately	$ 7.56
5	22001420		Panel, Control (wht)	A0	Appelez-nous	-
6	214897		Pad, Control Panel	A0	Appelez-nous	-
7	WP7730P011-60		Lens, Indicator Light   (Replaces: 22001215)	A0			$ 5.16
8	22001289		End Cap, Ctrl. Pnl. (lt-wht)	A0	Appelez-nous	-
8	22001291		End Cap, Ctrl. Pnl. (rt-wht)	A0	Appelez-nous	-
8	22001565		Cap, End (lt-wht)	13	Appelez-nous	-
8	22001564		Cap, End (rt-wht)	13	Appelez-nous	-
9	214894		Fastener, End Cap	A0	Appelez-nous	-
10	214872		Palnut, End Cap	A0	Appelez-nous	-
11	211605		Retainer, Timer Knob	A0	Appelez-nous	-
12	210932		Screw, No.8 X 9/16 Ctsk	A0	Appelez-nous	-
13	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	A0			$ 6.75
14	22001135		Switch, Rocker (wht)	A0	Appelez-nous	-
15	216412		Screw	A0	Appelez-nous	-
16	22001403		Light, Indicator (250v)	A0	Appelez-nous	-
17	22001421		Timer (230v-50hz)	A0	Appelez-nous	-
17	22001612		Timer Motor (230-50)	A0	Appelez-nous	-
18	22001265		Bezel, Timer Knob (wht)	A0	Appelez-nous	-
19	22001198		Knob, Timer (wht)	A0	Appelez-nous	-
20	211065		Spring, Timer Knob	A0			$ 5.70
21	208286		Switch, Infinite (wht)	A0	Appelez-nous	-
22	22001214		Switch, Water Temp. (wht)	A0	Appelez-nous	-
23	22001422		Wire Harness, Main	A0	Appelez-nous	-
24	22001213		Switch, Speed (wht)	A0	Appelez-nous	-
25	22001098		Manual, Use & Care	A0	Appelez-nous	-
25	16000327		Guide, Quick Ref. - Maytag	A0	Appelez-nous	-
