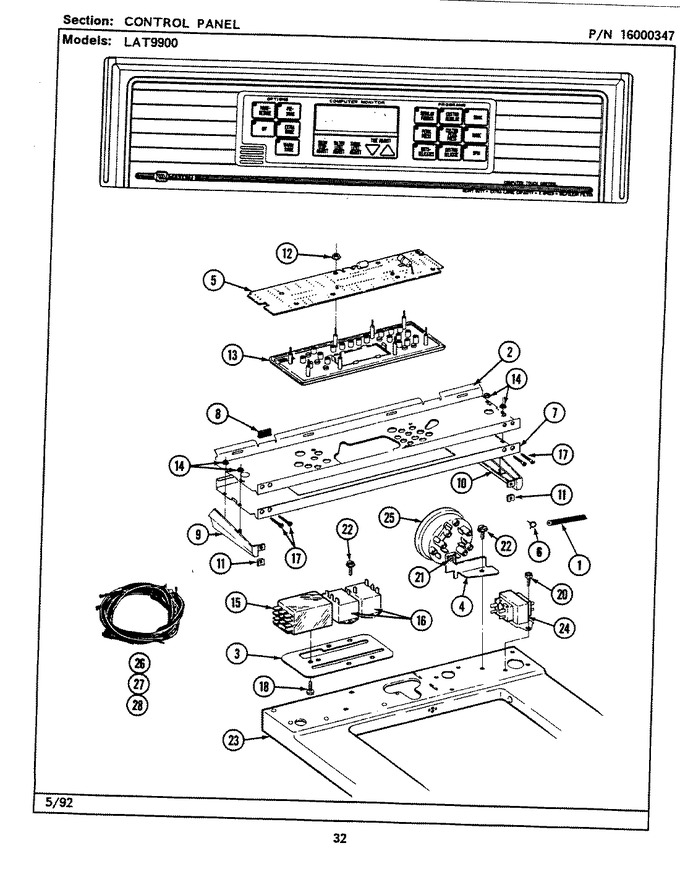

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215976		Air Tube	A0	Appelez-nous	-
2	215722		Backup Plate	A0	Appelez-nous	-
3	215725		Bracket Relay	A0	Appelez-nous	-
4	215720		Bracket For Water Level Sw	A0	Appelez-nous	-
5	207208		Pc Board	A0			$ 228.14
6	WP596669		Clamp,water Level Swtch Tube   (Replaces: 410296)	A0		Immediately	$ 7.56
7	207220		Control Panel	A0	Appelez-nous	-
8	214897		Pad, Control Panel	A0	Appelez-nous	-
9	207215		End Cap Lh	A0	Appelez-nous	-
10	207216		End Cap Rh	A0	Appelez-nous	-
11	214894		Fastener, End Cap	A0	Appelez-nous	-
12	M0282005		Locknut   (Replaces: 912077)	A0			$ 7.07
13	207235		Mounting Panel Assy	A0	Appelez-nous	-
14	214872		Palnut, End Cap	A0	Appelez-nous	-
15	206421		Relay-motor Reversing	A0	Appelez-nous	-
16	207770		Relay	A0	Appelez-nous	-
17	210932		Screw, No.8 X 9/16 Ctsk	A0	Appelez-nous	-
18	212949		Screw	A0	Appelez-nous	-
19	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
20	WP90767		Screw   (Replaces: Y313559)	A0		Immediately	$ 7.04
21	Y311711		Screw	A0	Appelez-nous	-
22	W11233072		Screw   (Replaces: 910647)	A0		Immediately	$ 12.62
23	207170L		Top Cover Assy Alm----na	A0	Appelez-nous	-
24	207766		Transformer	A0	Appelez-nous	-
25	207213		Water Level Switch	A0	Appelez-nous	-
26	207218		Wire Harness	A0	Appelez-nous	-
27	207211		Wire Harness	A0	Appelez-nous	-
28	207212		Wire Harness	A0	Appelez-nous	-
