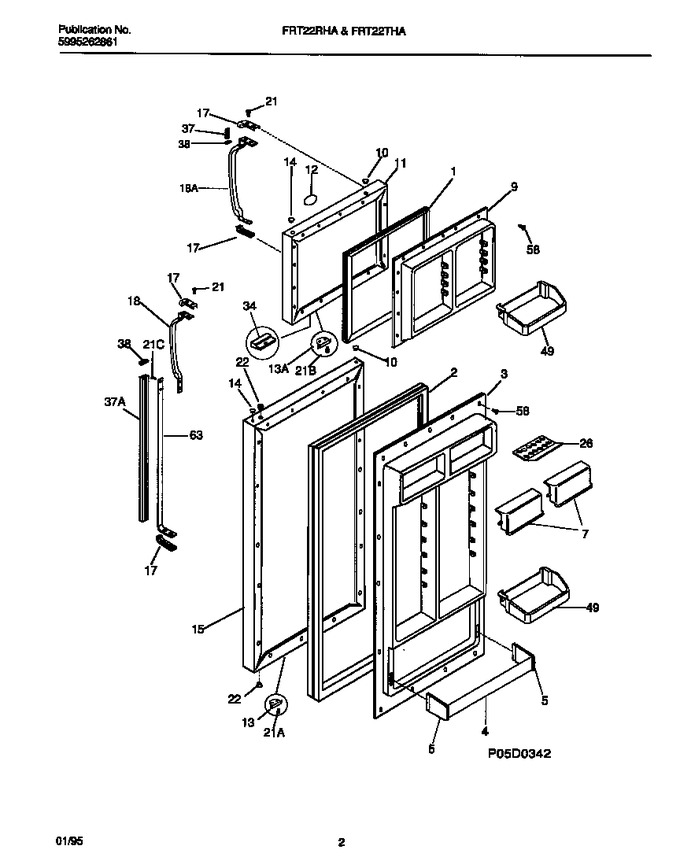

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215776715		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732417		Gasket, Refr Door, White, Magnetic		Appelez-nous	-
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516221		Rack, Door		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 215552601)			Immediately	$ 23.39
7	5303304569		Door-dairy		Appelez-nous	-
9	5303292371		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
11	215307601		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	215008601		Nameplate Assy, White		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030001		Door Stop, White, Frzr				$ 29.61
14	215352101		Plug-button, White, Handle Mtg		Appelez-nous	-
15	215307801		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	218025601		Handle End, White		Appelez-nous	-
18	215981301		Handle-door, White, Frzr		Appelez-nous	-
18	215983201		Handle-door, White, Refr		Appelez-nous	-
21	215218600		Screw-door Stop Mtg,torx Flat Head 10-16 X 3/4		Appelez-nous	-
21	215218700		Screw-door Stop Mtg, Torx Pan Head,10-16 X 3/4		Appelez-nous	-
21	215201400		Screw-handle Mtg, Torx Flat Head, 8-18(ab) X 5/8		Appelez-nous	-
21	5308000039		Screw		Appelez-nous	-
22	5303289320		Bearing-hinge				$ 19.69
26	215817806		Tray-egg				$ 13.46
34	215423600		Bumper-light Switch		Appelez-nous	-
37	215117406		Trim-handle, 23.97``, White, Lower		Appelez-nous	-
37	215117407		Trim-handle,1.27``,white,upper		Appelez-nous	-
38	215117301		Band-decorative,handle		Appelez-nous	-
49	215441511		Bin-door, Gallon		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
63	215209500		Rail-handle Trim Mtg		Appelez-nous	-
*22762	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
*22763	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
