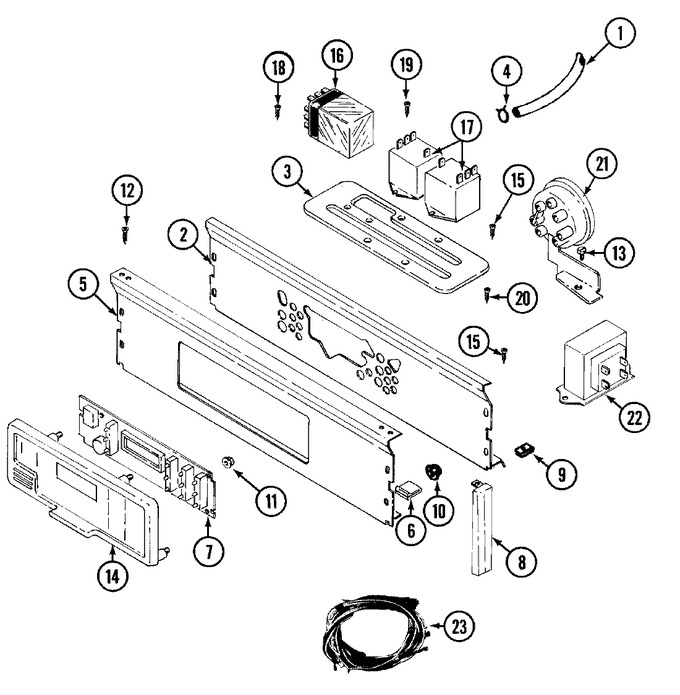

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001619 | Tube, Air (Replaces: 22001356) | A0 |
|
$ 75.73 | ||||
| 2 | 215722 | Backup Plate | A0 |
|
- | ||||
| 2 | WP489128 | Screw (Replaces: 315483) | A0 |
|
$ 9.79 | ||||
| 3 | 215725 | Bracket Relay | A0 |
|
- | ||||
| 4 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | A0 |
|
Immediately | $ 7.56 | |||
| 5 | 22001150 | Panel, Control (blk) | A0 |
|
- | ||||
| 6 | 214897 | Pad, Control Panel | A0 |
|
- | ||||
| 7 | 22001151 | Board, Circuit | A0 |
|
- | ||||
| 8 | 22001290 | End Cap, Ctrl. Pnl. (rt-blk) | A0 |
|
- | ||||
| 8 | 22001288 | End Cap, Ctrl. Pnl. (lt-blk) | A0 |
|
- | ||||
| 9 | 214894 | Fastener, End Cap | A0 |
|
- | ||||
| 10 | 214872 | Palnut, End Cap | A0 |
|
- | ||||
| 11 | M0282005 | Locknut (Replaces: 912077) | A0 |
|
$ 7.07 | ||||
| 12 | 314728 | Screw,ctrl.pnl & End Cap(blk) | A0 |
|
- | ||||
| 13 | Y311711 | Screw | A0 |
|
- | ||||
| 14 | 22001040 | Panel, Mounting (blk) | A0 |
|
- | ||||
| 15 | Y311711 | Screw | A0 |
|
- | ||||
| 16 | 206421 | Relay-motor Reversing | A0 |
|
- | ||||
| 17 | 207770 | Relay | A0 |
|
- | ||||
| 18 | 212949 | Screw | A0 |
|
- | ||||
| 19 | W11233072 | Screw (Replaces: 910647) | A0 |
|
Immediately | $ 12.62 | |||
| 20 | WP90767 | Screw (Replaces: Y313559) | A0 |
|
Immediately | $ 7.04 | |||
| 20 | WP90767 | Screw (Replaces: 211294) | A0 |
|
Immediately | $ 7.04 | |||
| 21 | 208751 | Switch, Pressure | A0 |
|
- | ||||
| 22 | 207766 | Transformer | A0 |
|
- | ||||
| 23 | 22001263 | Wire Harness, Motor Relay | A0 |
|
- | ||||
| 23 | 22001261 | Wire Harness, Main | A0 |
|
- | ||||
| 23 | 22001262 | Wire Harness, Water Level Swit | A0 |
|
- |
