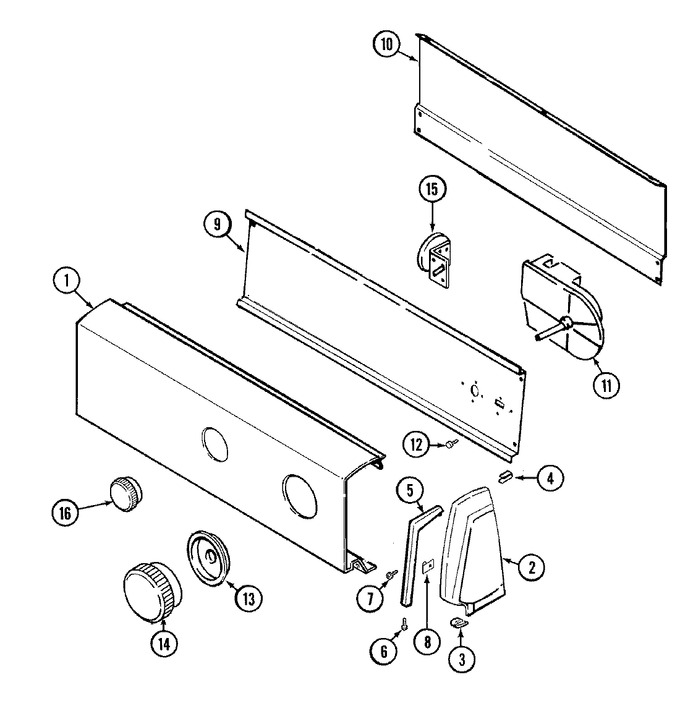

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7793 | Screw | 10 |
|
- | ||||
| 1 | 21001084 | Panel, Control | 10 |
|
- | ||||
| 1 | 21001207 | Panel, Control | 13 |
|
- | ||||
| 1 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 2 | 35-2669 | Cap, End (lt)(wht) | 10 |
|
- | ||||
| 2 | 35-2668 | Cap, End (rt)(wht) | 10 |
|
- | ||||
| 3 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 3 | 25-7697 | Screw | 10 |
|
- | ||||
| 4 | WP33002917 | Screw (Replaces: 25-7435) | 10 |
|
Immediately | $ 6.90 | |||
| 4 | 25-7852 | Speedclip, Rr Shld To End Cap | 10 |
|
- | ||||
| 5 | 31001054 | Trim, Endcap (rt Wht) | 10 |
|
- | ||||
| 5 | 31001055 | Trim, Endcap (lt Wht) | 10 |
|
- | ||||
| 6 | 25-7760 | Screw | 10 |
|
- | ||||
| 7 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 8 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 9 | 53-2504 | Spacer, Control Shield | 10 |
|
- | ||||
| 9 | 53-1676 | Shield, Control | 10 |
|
- | ||||
| 9 | 31001128 | Shield, Control | 12 |
|
- | ||||
| 10 | 25-7853 | Retaining Ring | 10 |
|
- | ||||
| 10 | 35-2688 | Shield, Control Panel (rear) | 10 |
|
- | ||||
| 10 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 10 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 11 | 21001340 | Timer | 14 |
|
$ 167.28 | ||||
| 11 | 35-3839 | Timer | 10 |
|
$ 167.18 | ||||
| 12 | WP3400094 | Screw, Timer (Replaces: 31001029) | 10 |
|
$ 7.14 | ||||
| 13 | 21001238 | Skirt & Ring Assy. (wht) | 13 |
|
- | ||||
| 13 | 35-3916 | Skirt & Ring Assy (wht) | 10 |
|
- | ||||
| 14 | 21001237 | Knob, Timer (wht) | 13 |
|
- | ||||
| 14 | 35-2672 | Timer Knob | 10 |
|
- | ||||
| 15 | WP21001554 | Switch, Water Level (Replaces: 35-3691) | 10 |
|
$ 143.59 | ||||
| 15 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 16 | 35-2673 | Knob, Selector (wht) | 13 |
|
- | ||||
| 16 | 35-2673 | Knob, Selector (wht) | 10 |
|
- | ||||
| 17 | 21001121 | Manual, Use & Care | 10 |
|
- | ||||
| 17 | 21001033 | Manual, Use & Care | 10 |
|
- | ||||
| 18 | 16002079 | Guide, Quick Ref - Admiral | 10 |
|
- |
