SELECT A DIAGRAM

01 - Base


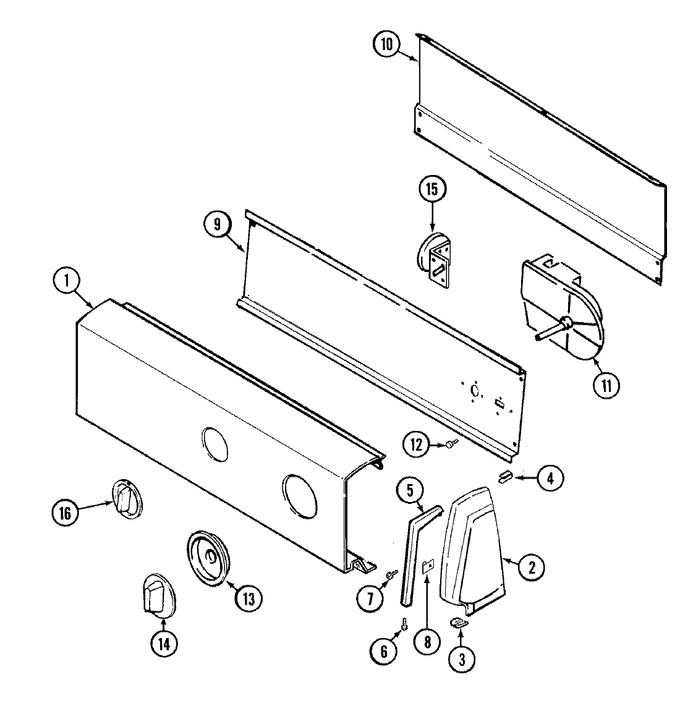

02 - Control Panel


03 - Pump


04 - Top


05 - Transmission (lata100age Series 10)


06 - Transmission (lata100age Series 11)


07 - Tub


08 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7702		Speedclip, End Cap To Ctrl Pnl	10	Appelez-nous	-
1	21001379		Panel, Control (alum)	10	Appelez-nous	-
1	25-7793		Screw	10	Appelez-nous	-
2	35-2668		Cap, End (rt)(wht)	10	Appelez-nous	-
2	35-2669		Cap, End (lt)(wht)	10	Appelez-nous	-
3	25-7697		Screw	10	Appelez-nous	-
3	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
4	25-7852		Speedclip, Rr Shld To End Cap	10	Appelez-nous	-
4	WP33002917		Screw   (Replaces: 25-7435)	10		Immediately	$ 6.90
5	31001054		Trim, Endcap (rt Wht)	10	Appelez-nous	-
5	31001055		Trim, Endcap (lt Wht)	10	Appelez-nous	-
6	25-7760		Screw	10	Appelez-nous	-
7	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
8	25-7702		Speedclip, End Cap To Ctrl Pnl	10	Appelez-nous	-
9	53-2504		Spacer, Control Shield	10	Appelez-nous	-
9	21001303		Shield, Control	10	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
10	25-7853		Retaining Ring	10	Appelez-nous	-
10	35-2688		Shield, Control Panel (rear)	10	Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
10	21001460		Shield, Rear	11	Appelez-nous	-
11	21001346		Timer, Export	10	Appelez-nous	-
12	WP3400094		Screw, Timer   (Replaces: 31001029)	10			$ 7.14
13	21001238		Skirt & Ring Assy. (wht)	10	Appelez-nous	-
14	21001237		Knob, Timer (wht)	10	Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
15	WP21001554		Switch, Water Level   (Replaces: 35-3691)	10			$ 143.59
16	21001239		Knob, Selector (wht)	10			$ 24.61
17	21001380		Manual, Use & Care	10	Appelez-nous	-
17	21001371		Manual, Use & Care	10	Appelez-nous	-
18	16002079		Guide, Quick Ref - Admiral	10	Appelez-nous	-
