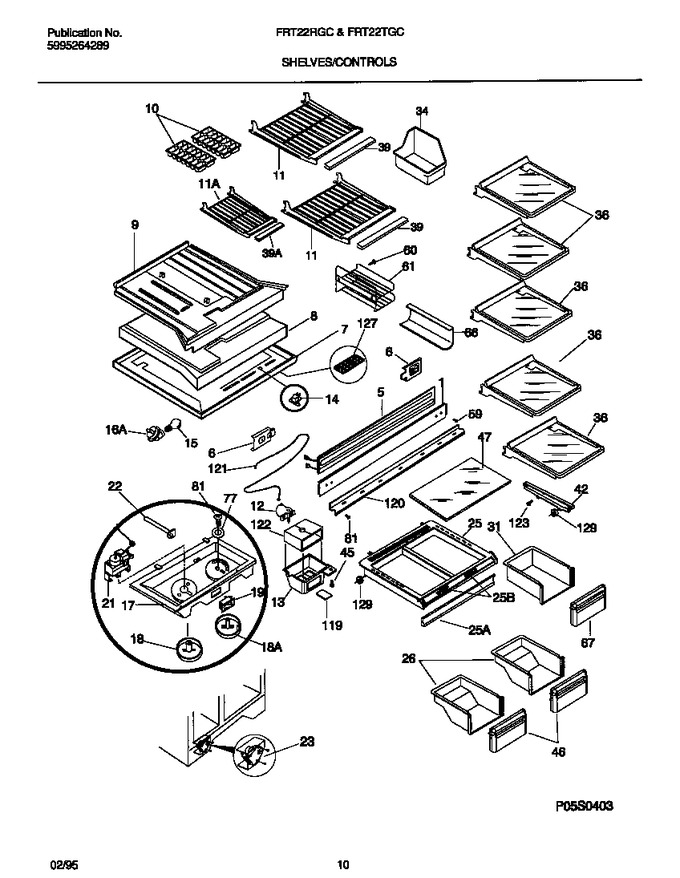

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303299279		Mullion, White		Appelez-nous	-
5	215634100		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
8	215062700		Divider,styrofoam		Appelez-nous	-
9	215058300		Bottom Panel-frzr		Appelez-nous	-
11	5303292383		Shelf-freezer, Cantilever, Wide, (2)		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
18	5303308310		Knob-temp Control, (damper)		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
22	215932100		Housing,cont Cap Tube		Appelez-nous	-
25	215216634		Cover-crisper Pan, With Beam, Rollers, Trim, And Humid C		Appelez-nous	-
26	5303292386		Pan-crisper, (2)				$ 236.83
31	5303304632		Pan-meat				$ 267.86
34	5303289069		Container-ice		Appelez-nous	-
36	215406115		Shelf-``spill-safe``, Fixed, Teal Graphics, (5)				$ 236.72
39	5303284480		Trim-frzr Shelf, Wide		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
46	218278401		Front-crisper Pan, (2)		Appelez-nous	-
47	218390564		Insert-pan Cover, Glass, Teal Graphics		Appelez-nous	-
59	218188500		Screw-mullion Mtg, 10-32 X 3/4, Lh (not Illustrated)		Appelez-nous	-
59	215069501		Cap-mullion Screw, White (not Illustrated)		Appelez-nous	-
59	240442708		Screw-hinge/mullion , 10-32 X 5/8   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
66	241657701		Rack-wine, White   (Replaces: 5303307872)				$ 57.41
67	218278701		Front-meat Pan		Appelez-nous	-
77	5303001216		Washer-nylon,3/16 X 5/8 Od		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
119	215132700		Cap, Air Duct				$ 18.38
120	218019201		Seal-refr Top		Appelez-nous	-
122	215132502		Block, Air Deflector		Appelez-nous	-
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
127	215771600		Grille-air Return		Appelez-nous	-
*18282	215848000		Spacer-air Channel		Appelez-nous	-
*18283	215339900		Clip, Cantilevr Shlf				$ 5.83
11A	5303292384		Shelf-freezer, Cantilever, Narrow		Appelez-nous	-
121A	215364001		Cable-damper Contrl				$ 82.01
121B	215209400		Nut, Push, On, Damper Cable (not Illustrated)		Appelez-nous	-
129A	5303299152		Roller-hanger				$ 12.34
129B	5303299153		Bearing-roller (not Illustrated)				$ 5.09
12A	215132300		Deflector, Air, ``paddle``		Appelez-nous	-
12B	215363800		Spacer, Air Deflectr (not Illustrated)		Appelez-nous	-
12C	215363900		Washer, Air Deflectr (not Illustrated)		Appelez-nous	-
13A	215420300		Cover-air Deflector		Appelez-nous	-
13B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	215932904		Box-control		Appelez-nous	-
17B	215935700		Nut, Anchor, Control Box Mtg (not Illustrated)		Appelez-nous	-
18A	5303308309		Knob-temp Control		Appelez-nous	-
21A	5303305487		Control, Temperature		Appelez-nous	-
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer-defrost   (Replaces: 5303275811)			Immediately	$ 28.20
23B	215277000		Cover, Defrost Timer, Top (not Illustrated)		Appelez-nous	-
23C	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
23D	5303289058		Shield, Defrost Timr, Btm (not Illustrated)		Appelez-nous	-
25A	5303308349		Trim-crisper Cover		Appelez-nous	-
25B	5303307881		Control-humidity		Appelez-nous	-
39A	215217539		Trim-frzr Shelf, Narrow		Appelez-nous	-
42A	215002301		Hanger-pan / Tray, Lh				$ 65.82
42B	215002401		Hanger, Pan/tray, Rh (not Illustrated)				$ 85.84
7A	215055803		Top Panel-refr		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
