Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
1 35-4152 Panel Control Appelez-nous -
1 25-7793 Screw Appelez-nous -
2 35-2669 Cap, End (lt)(wht) Appelez-nous -
2 35-2668 Cap, End (rt)(wht) Appelez-nous -
3 25-7697 Screw Appelez-nous -
3 25-7851 Speedclip, End Cap To Top Appelez-nous -
3 34-9487 Plate, Reinforcement Appelez-nous -
4 WP33002917 Screw   (Replaces: 25-7435) In-Stock Immediately $ 6.90

4 25-7852 Speedclip, Rr Shld To End Cap Appelez-nous -
5 53-0278 Trim, End Cap (lt) Appelez-nous -
5 53-0277 Trim, End Cap (rt) Appelez-nous -
6 25-7760 Screw Appelez-nous -
7 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

8 25-7702 Speedclip, End Cap To Ctrl Pnl Appelez-nous -
9 53-2504 Spacer, Control Shield Appelez-nous -
9 53-1676 Shield, Control Appelez-nous -
10 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

10 WP12990527 Screw, Sems   (Replaces: 25-3457) In-Stock Immediately $ 7.15

10 25-7853 Retaining Ring Appelez-nous -
10 35-2688 Shield, Control Panel (rear) Appelez-nous -
11 35-4130 Timer Appelez-nous -
12 25-0205 Screw Appelez-nous -
13 35-3916 Skirt & Ring Assy (wht) Appelez-nous -
14 35-2672 Timer Knob Appelez-nous -
15 35-2839 Switch Appelez-nous -
15 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

16 35-2673 Knob, Selector (wht) Appelez-nous -
17 35-2193 Switch, Rotary Speed Appelez-nous -
17 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

18 WP21001554 Switch, Water Level   (Replaces: 35-3691) Special Order $ 143.59

18 WP90767 Screw   (Replaces: 25-3092) In-Stock Immediately $ 7.04

19 16002079 Guide, Quick Ref - Admiral Appelez-nous -
19 21001033 Manual, Use & Care Appelez-nous -
19 21001032 Manual, Use & Care Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

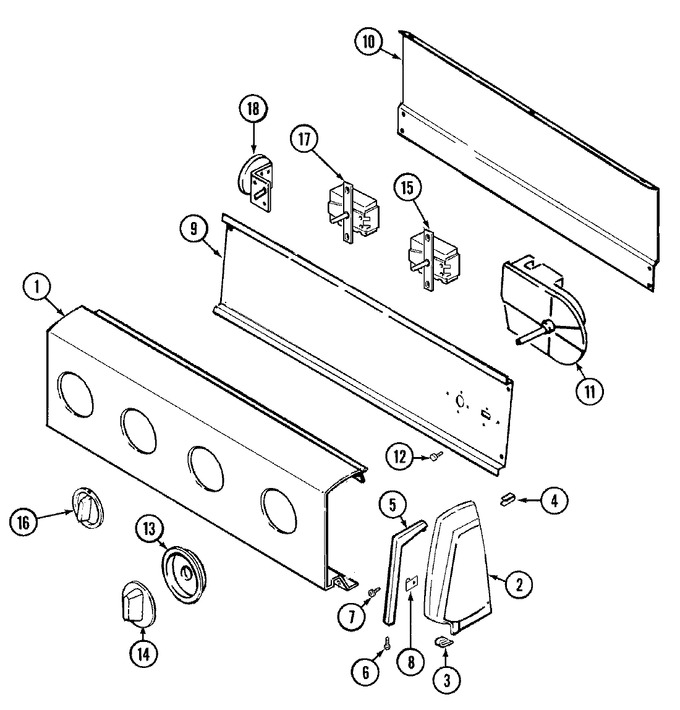

Diagram for LATA400AKE
