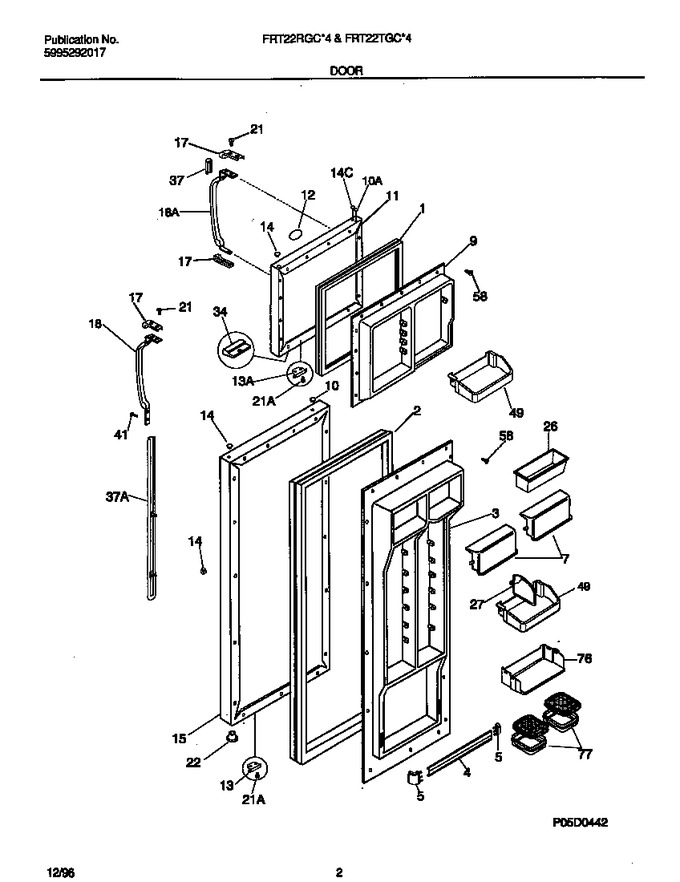

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608915		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	5303292369		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	215784001		Panel, Inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door   (Replaces: 215516257)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	5303308347		Door-dairy		Appelez-nous	-
9	5303292371		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303292413		Plug-button, White, Hinge Brg Hole				$ 4.94
10	218696501		Plug-button, White, Lg Closer Hole				$ 4.07
11	5303917856		Panel-frzr Door, White, W/foam Insulatn		Appelez-nous	-
12	5315340712		Tape, Adhesive, 12`` Long, Foam, Double-faced (not Illust		Appelez-nous	-
12	218364004		Frame-nameplate, White		Appelez-nous	-
12	215008604		Label-nameplate, White (not Illustrated)		Appelez-nous	-
13	5303289522		Door Stop				$ 40.17
13	215030001		Door Stop, White, Frzr				$ 29.61
14	240494001		Plug-button, White, Handle Mtg, Refr Door Front   (Replaces: 215352201)			Immediately	$ 18.20
14	218696601		Plug-button, White, Sm Closer Hole				$ 1.75
15	218209501		Panel-refr Door, White, W/foam Insulatn		Appelez-nous	-
17	218696401		Handle End, White				$ 47.04
18	215981301		Handle-door, White, Frzr, Soft Grip		Appelez-nous	-
18	215983201		Handle-door, White, Refr, Soft Grip		Appelez-nous	-
21	218556800		Screw-handle/bumper Mtg, Flat Head, 10-16ab X 0.625		Appelez-nous	-
21	218578600		Screw-door Stop Mtg, Phl Truss Hd, 10-16 X 3/4				$ 8.08
22	5303289320		Bearing-hinge				$ 19.69
26	3204522		Container-egg				$ 98.33
27	218370101		Snugger-door Bin, ``paddle Type``, Gallon Door Bin				$ 88.03
34	215423601		Bumper-light Switch, White		Appelez-nous	-
37	215867079		Trim-handle, White, Lower, W/dec Gold Band, & Stick-on L				$ 109.41
37	218549826		Trim-handle, White, Upper, W/dec Gold Band		Appelez-nous	-
41	5308000039		Screw		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592305)				$ 176.87
58	218749600		Screw, 10 Pan Head, 8-18 X 0.500				$ 5.15
76	218423900		Rack-microwave Dish		Appelez-nous	-
77	218423502		Dish-microwave, (2)		Appelez-nous	-
*68160	215627402		Band-decorative, Bright Gold		Appelez-nous	-
*68161	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*68162	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
