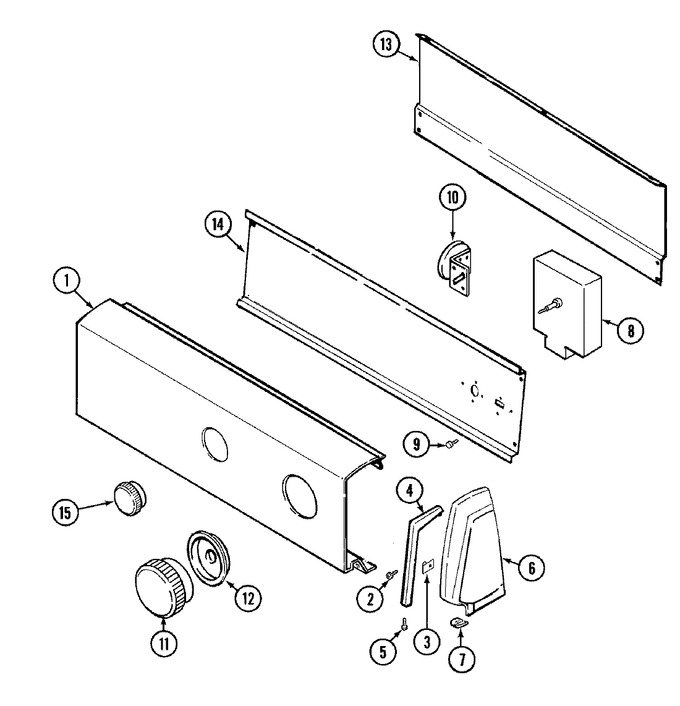

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 21001383 | Panel, Control (wht) | 10 |
|
- | ||||
| 2 | 25-7649 | Screw | 10 |
|
- | ||||
| 3 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 4 | 53-0277 | Trim, End Cap (rt) | 10 |
|
- | ||||
| 4 | 53-0278 | Trim, End Cap (lt) | 10 |
|
- | ||||
| 5 | 25-7760 | Screw | 10 |
|
- | ||||
| 6 | 35-2669 | Cap, End (lt)(wht) | 10 |
|
- | ||||
| 6 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 6 | 35-2668 | Cap, End (rt)(wht) | 10 |
|
- | ||||
| 7 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 8 | 21001385 | Timer, Export | 10 |
|
- | ||||
| 9 | WP3400094 | Screw, Timer (Replaces: 31001029) | 10 |
|
$ 7.14 | ||||
| 10 | WP21001554 | Switch, Water Level (Replaces: 35-3691) | 10 |
|
$ 143.59 | ||||
| 11 | 21001237 | Knob, Timer (wht) | 10 |
|
- | ||||
| 12 | 21001238 | Skirt & Ring Assy. (wht) | 10 |
|
- | ||||
| 13 | 35-2688 | Shield, Control Panel (rear) | 10 |
|
- | ||||
| 13 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 13 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 14 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 14 | 21001303 | Shield, Control | 10 |
|
- | ||||
| 14 | 31001193 | Pad, Shield | 10 |
|
- | ||||
| 15 | 21001239 | Knob, Selector (wht) | 10 |
|
$ 24.61 | ||||
| 16 | 21001369 | Instruction, Installation | 10 |
|
- | ||||
| 16 | 21001387 | Manual, Use & Care | 10 |
|
- |
